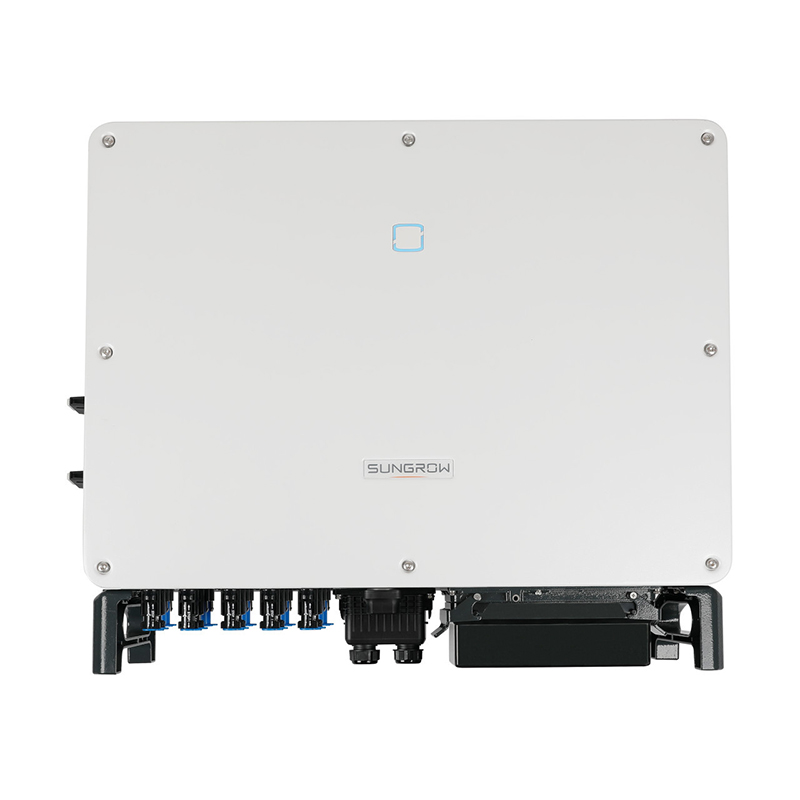

Sungrow Inverter SG60CX-US North American Solar Inverter Suitable for 50Hz / 60Hz grid Three-Phase Hand Installation Inverters

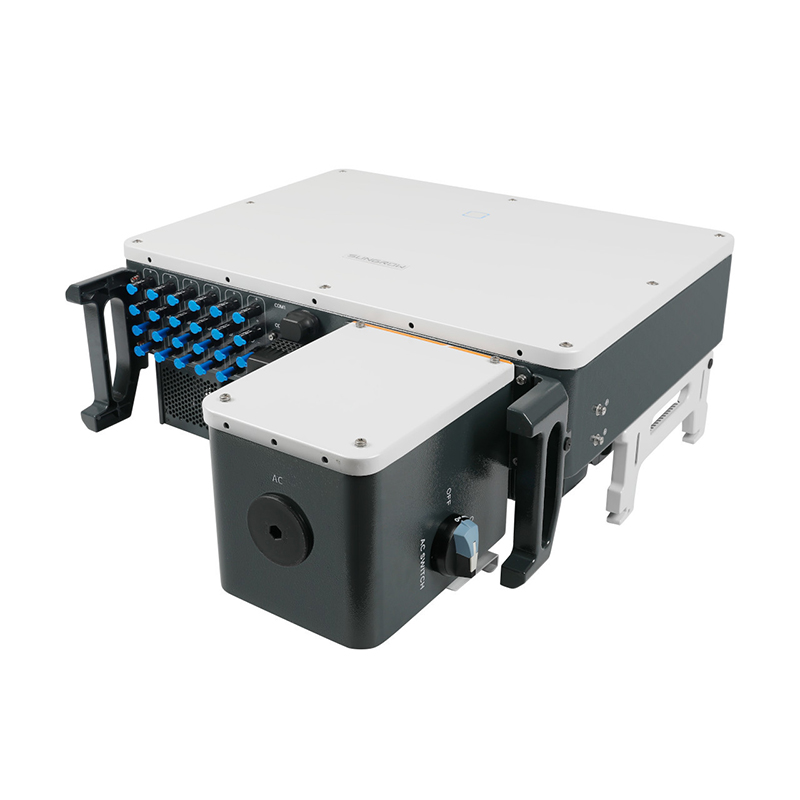

Sungrow Inverter SG60CX-US North American Solar Inverter Suitable for 50Hz / 60Hz grid Three-Phase Hand Installation Inverters - Image 2

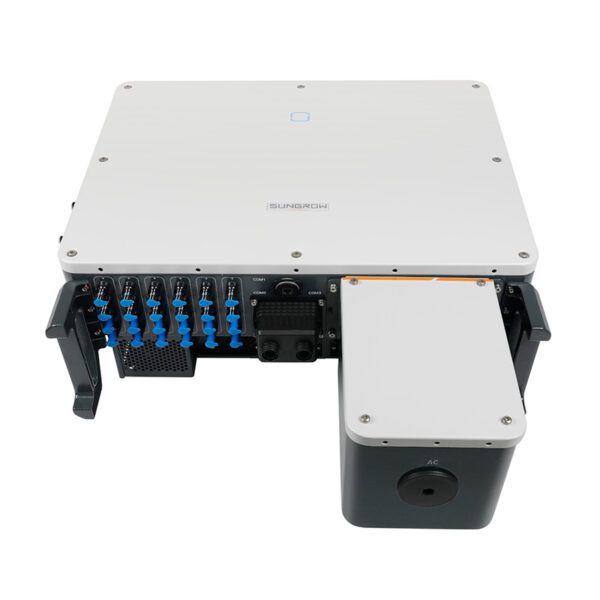

Sungrow Inverter SG60CX-US North American Solar Inverter Suitable for 50Hz / 60Hz grid Three-Phase Hand Installation Inverters - Image 3

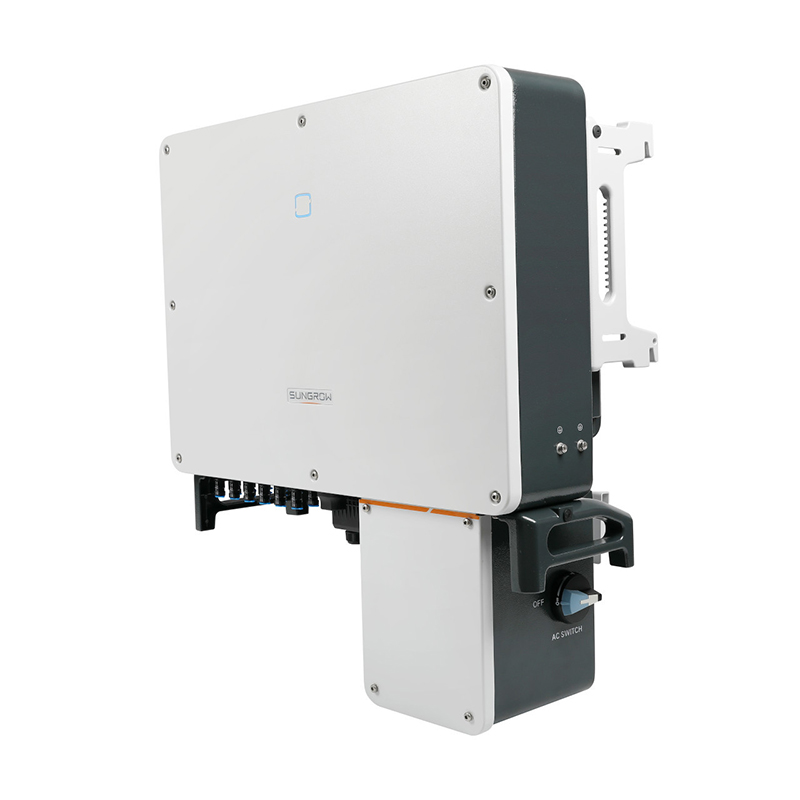

Sungrow Inverter SG60CX-US North American Solar Inverter Suitable for 50Hz / 60Hz grid Three-Phase Hand Installation Inverters - Image 4
Sungrow Inverter SG60CX-US North American Solar Inverter Suitable for 50Hz / 60Hz grid Three-Phase Hand Installation Inverters - Image 5

Sungrow Inverter SG60CX-US North American Solar Inverter Suitable for 50Hz / 60Hz grid Three-Phase Hand Installation Inverters

Compare

Dimensions ( W * H * D ) : Inverter: 782 mm * 645 mm * 310 mm ( 30.7” * 25.4” * 12.2” )
Wire-Box: 231 mm * 295 mm * 234 mm ( 9.1” * 11.6” * 9.2” )
Weight : 65 kg ( 143.3 lbs )
Ingress protection rating : Type 4X ( NEMA 4X, IP66 )
Operating ambient temperature range : -30 to 60 °C ( > 45 °C derating ) -22 to 140 °F ( > 113°F derating )
Allowable relative humidity range : 0 % – 100 %
Max. operating altitude : 4000 m / 13123.4 ft ( > 3000 m / 9842.5 ft derating )
Communication : RS485 / optional: WiFi and Ethernet
DC connection type : MC4 ( #12 – #10AWG )
AC connection type: OT ( #5 – 2/0AWG, Cu or Al )

$6,853.00

Compare

Features of the Sungrow Inverter SG60CX-US

Suitable for 50Hz / 60Hz grid, could be used in North American.
Available for hand installation, no need for lifting machinery assistance.

HIGH YIELD

  • 4 MPPTs with max. efficiency 98.6%
  • 6 MPPTs with max. efficiency 98.8%
  • Compatible with bifacial modules
  • Built-in PID recovery function
 SMART O&M

  • Touch-free commissioning and firmware upgrade
  • Online IV curve scan and diagnosis
  • Fuse free design with smart string current monitoring
SAVED INVESTMENT

  • DC/AC ratio greater than 1.5
  • Compatible with Al and Cu AC cables
  • Flexible installation from vertical to horizontal
 PROVEN SAFETY

  • Type 4X and C5 protection rating
  • Type II SPD for both DC and AC
  • Compliant with UL safety and variety grid codes

CIRCUIT DIAGRAM

EFFICIENCY CURVE

Type designation SG60CX-US
Input ( DC )
Max. PV input voltage 1000 V
Min. PV input voltage / Start-up input voltage 200 V / 250 V
Nominal PV input voltage 710 V
MPP voltage range 200 V – 1000 V
No. of independent MPP inputs 6
No. of PV strings per MPPT 2
Max. PV input current 26 A * 6
Max. PV short-circuit current per MPPT 45 A
Output ( AC )
AC output power 60 kVA @ 113°F ( 45 °C ) / 50 kVA @ 122°F ( 50 °C )
Max. AC output current 72.2 A
Nominal AC voltage 3 / N / PE, 277 / 480 V
AC voltage range 422 V – 528 V
Nominal grid frequency / Grid frequency 60 Hz / 55 – 65 Hz
Harmonic ( THD ) < 3 % ( at nominal power )
DC current injection < 0.5 % In
Power factor at nominal power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
Feed-in phases / Connection phases 3 / 3
Efficiency
Max. efficiency 98.80 %
CEC efficiency 98.00 %
Protection
DC reverse polarity protection Yes
AC short circuit protection Yes
Leakage current protection Yes
Grid monitoring Yes
DC switch Yes
AC switch Yes
PV string monitoring Yes
Arc fault circuit interrupter ( AFCI ) Yes
PID Recovery function Yes*
Overvoltage protection DC Type II / AC Type II
Rapid Shutdown Yes
