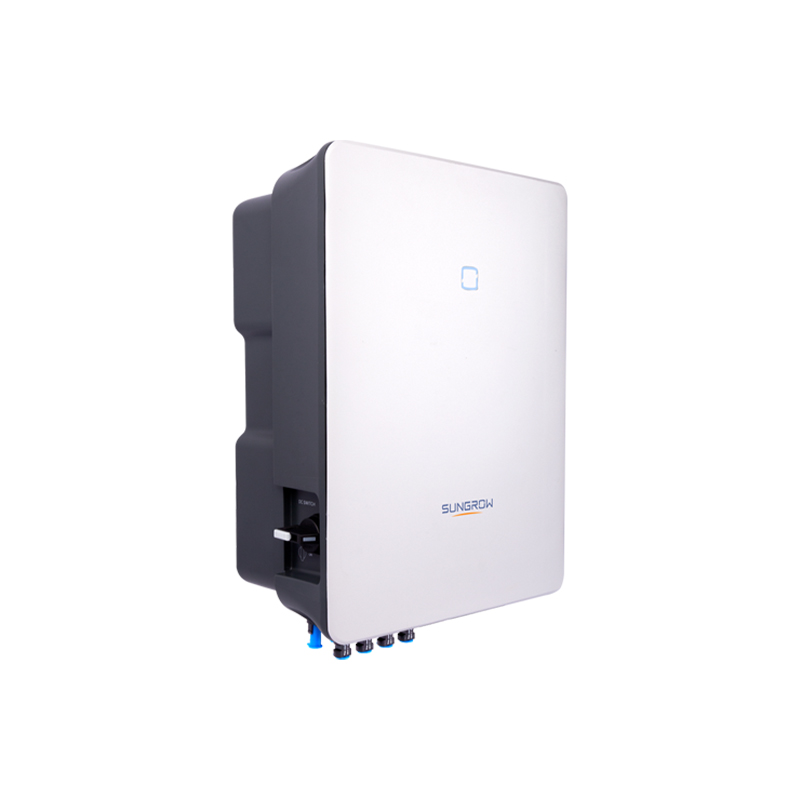

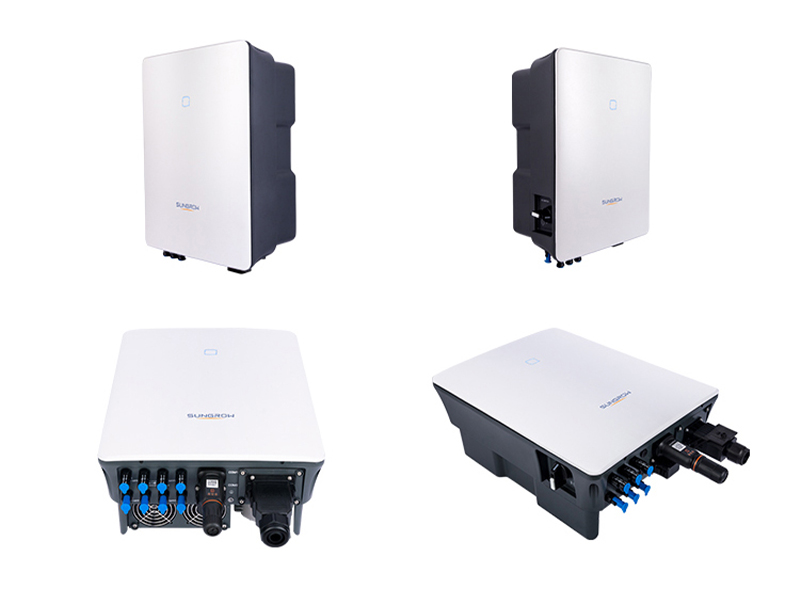

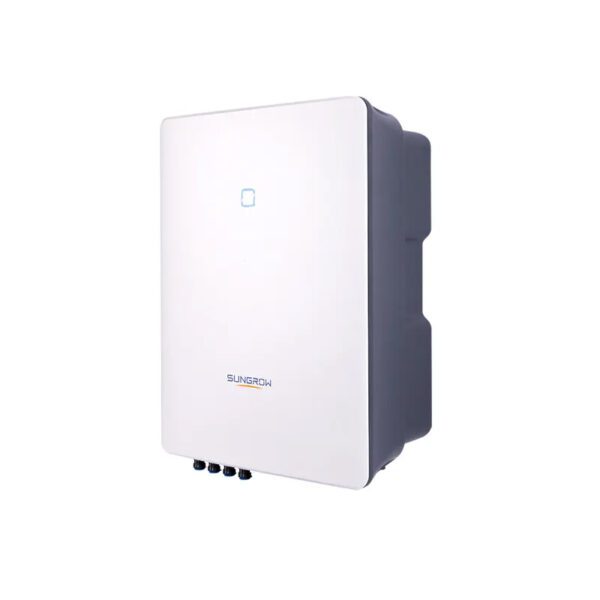

Solar Inverter SUNGROW SG15/17/20RT Three Phase SUNGROW On Grid Solar Inverter Multi-MPPT String Inverter for 1000 Vdc System

Add to wishlist
Compare
  • Dimensions (W*H*D): 370mm*480mm*195mm
  • Weight: 21kg
  • Mounting method: Wall-mounting bracket
  • Topology: Transformerless
  • Degree of protection: IP65
  • Night power consumption: ＜6W
  • Corrosion: C5
  • Operating ambient temperature range: -25ºC to 60ºC
  • Allowable relative humidity range (non-condensing) : 0%-100%
  • Cooling method: Smart forced air cooling
  • Max. operating altitude: 4000m
  • Display: LED
  • Communication: WLAN/Ethernet/RS485/DI/DO
  • DC connection type: MC4(Max.6mm²)
  • AC connection type: Plug and play

$1,750.00

Compare

Features of SUNGROW Solar Inverter

High yield

  • Lower startup & wider MPPT voltage
  • Compatible with bifacial modules
  • Built-in PID recovery function

Smart management

  • Smart IV curve scanning
  • 24 / 7 Live monitoring
  • Remote firmware updates

Safe and durable

  • Quick arc fault circuit interrupter
  • Build-in Type II DC & AC SPD
  • High anti-corrosion rating C5

Easy and user friendly

  • 21 kg compact design
  • Unique push-in connectors
  • Fast and easy commissioning via App

CIRCUIT DIAGRAM

EFFICIENCY CURVE

Type designation SG15RT SG17RT SG20RT
lnput (DC)
Recommended max. PV input power 22.5kWp 25.5kWp 30kWp
Max.PV input voltage 1100V* 1100V* 1100V*
Min. PV input voltage / Start-up input voltage 180V/180V 180V/180V 180V/180V
Rated input voltage 600V 600V 600V
MPP voltage range 160V-1000V 160V-1000V 160V-1000V
No.of independent MPP inputs 2 2 2
No.of PV strings per MPPT 2/2 2/2 2/2
Max.PV input current 50A(25A/25A) 50A(25A/25A) 50A(25A/25A)
Max.DC short-circuit current 64A(32A/32A) 64A(32A/32A) 64A(32A/32A)
Max. current for DC connector 30A 30A 30A
Output (AC)
Rated AC output power 15000W 17000W 20000W
Max.AC output apparent power 16500VA** 18700VA** 22000VA**
Rated AC output apparent power 16500VA** 18700VA** 22000VA**
Max.AC output current 25A 28.3A 31.9A
Rated AC output current(at 230V) 21.7A 24.6A 29A
Rated AC voltage 3/N/PE, 220/380V; 3/N/PE, 230/400V; 3/N/PE, 240/415V
AC voltage range 180V-276V / 311V-478V
Rated grid frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Grid frequency range 45-55Hz/55*65Hz 45-55Hz/55*65Hz 45-55Hz/55*65Hz
Harmonic (THD) ＜3% (st rated power) ＜3% (st rated power) ＜3% (st rated power)
Power factor at Rated power /Adjustable power factor ＞0.99/0.8 leading-0.8 lagging ＞0.99/0.8 leading-0.8 lagging ＞0.99/0.8 leading-0.8 lagging
Feed-in phases / Connection phases 3/3 3/3 3/3
Efficiency
Max.efficiency 98.5% 98.5% 98.5%
European efficiency 98.1% 98.1% 98.1%

*: The inverter enters the standby state when the input voltage ranges between1,000V and 1,100V. If the maximum DC voltage in the system can exceed 1000V, the MC4 connectors included in the scope of delivery must not be used. In this case MC4 Evo2 connectors must be used.
**: For Germany, max. AC output power: SG15RT is 15000VA, SG17RT is 17000VA, SG20RT is 20000VA.
