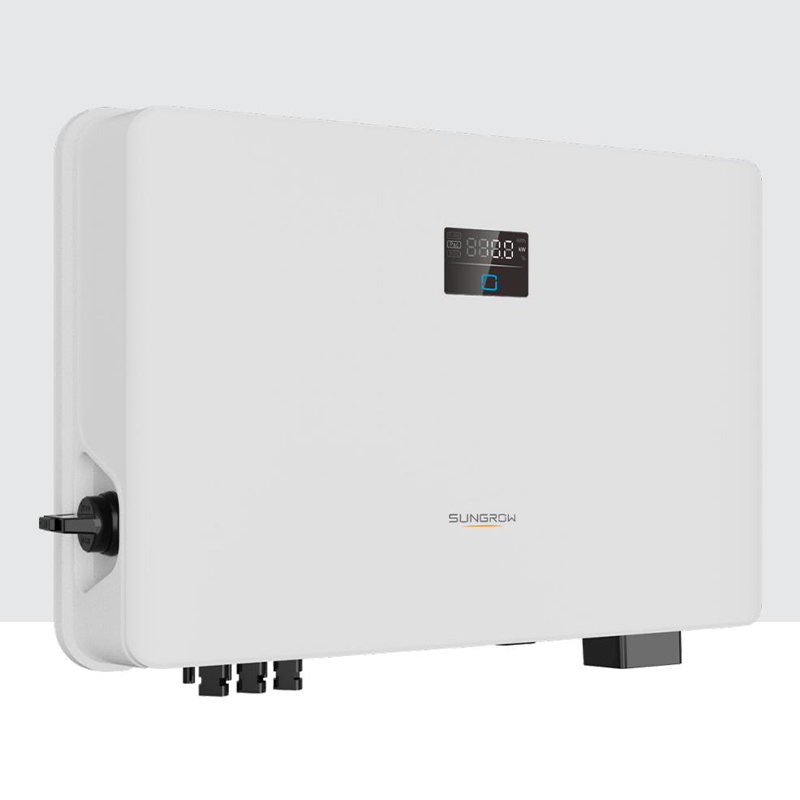

SG8.0RS-L Sungrow Solar Inverter 12kW Single-MPPT String Inverter for 600 Vdc System Inverter with LED Digital Display & LED Indicator
SG8.0RS-L Sungrow Solar Inverter 12kW Single-MPPT String Inverter for 600 Vdc System Inverter with LED Digital Display & LED Indicator - Image 2

SG8.0RS-L Sungrow Solar Inverter 12kW Single-MPPT String Inverter for 600 Vdc System Inverter with LED Digital Display & LED Indicator

Compare

Dimensions ( W * H * D ) : 525 mm * 365 mm * 170 mm
Weight : 18 kg
Mounting method : Wall-mounting bracket
Topology : Transformerless
Degree of protection : IP65
Operating ambient temperature range : -25 ℃ – 60 ℃
Allowable relative humidity range ( non-condensing ) : 0 – 100 %
Cooling method : Natural cooling
Max. operating altitude : 4000 m

$937.00

Compare

Features of the SG8.0RS-L Sungrow Solar Inverter

USER FRIENDLY SETUP

  • Plug and play installation
  • One-click access to iSolarCloud monitoring platform
  • Light and compact with optimized heat dissipation design
 HIGH YIELD

  • Compatible with high power PV modules and bifacial modules
  • Lower startup & wider MPPT voltage range
  • Built-in smart PID Zero function
SAFE AND RELIABLE

  • Built-in Type II DC & AC SPD
  • IP65, indoor & outdoor installation
 SMART MANAGEMENT

  • Real time data ( 10 seconds refresh sample )
  • Remote firmware updates

CIRCUIT DIAGRAM

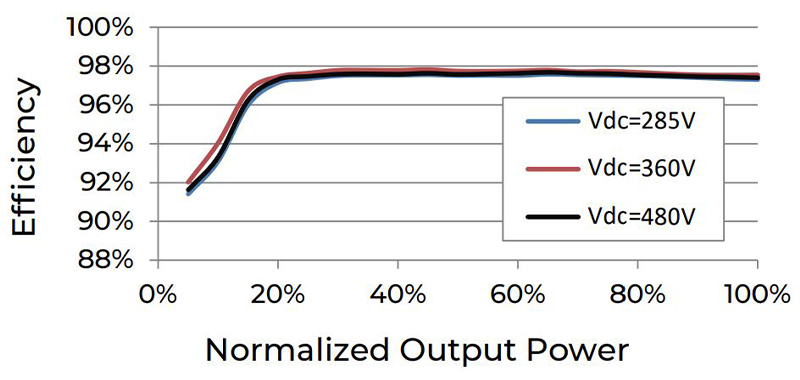

EFFICIENCY CURVE（ SG8.0RS-L ）

Type designation SG8.0RS-L
Input ( DC )
Recommended max. PV input power 12 kWp
Max. PV input voltage 600 V
Min. operating PV voltage / Start-up input voltage 40 V / 50 V
Rated PV input voltage 360 V
MPP voltage range 40 V – 560 V
No. of independent MPP inputs 2
Default No. of PV strings per MPPT 1/2
Max. PV input current 48 A ( 16 A / 32 A )
Max. DC short-circuit current 60 A ( 20 A / 40 A )
Output ( AC )
Rated AC output power 8000 W
Max. AC Output power 8000 VA
Rated AC output current ( at 220 V ) 36.4 A
Max. AC output current 36.4 A
Rated AC voltage 220 V / 240 V
AC voltage range 154 V – 276 V
Rated grid frequency / Grid frequency range 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
Harmonic ( THD ) < 3 % ( at rated power )
Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading – 0.8 lagging
Feed-in phases / Connection phases 1 / 1
Efficiency
Max. efficiency / European efficiency 97.8 % / 97.3 %
Protection
Grid monitoring Yes
DC reverse polarity protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
Surge Protection DC type II / AC type II
DC switch Yes
PV string current monitoring Yes
PID Zero function Yes
