JinKo Solar Panel
Showing all 16 results
-

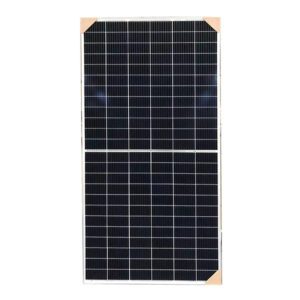

JinKo Solar Panel
535-555 Watt Mono Facial Module Jinko Bifacial Module Solar Panel MOQ 10000Watt
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,First of 52 steps strict quality control and inspection process.
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,Intelligent alarm and stop mechanism in case of any deviation or errors.
Before and Following Lamination
Ensure “Zero” micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.SKU: n/a -
JinKo Solar Panel
550w Solar Panel Jinko Solar Panels Tiger Neo 550w 560w 570w Solar Module For Home N Type
JinKo Solar Panel550w Solar Panel Jinko Solar Panels Tiger Neo 550w 560w 570w Solar Module For Home N Type
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.Longer Life-time Power Yield
0.55% annual power degradation and 25 year linear power warranty.Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.SKU: n/a -
JinKo Solar Panel
Hot Sell Jinko Solar N Type All Black Solar Panels 420w 425w 430w 435w 440w Solar Module MOQ 10000watt
JinKo Solar PanelHot Sell Jinko Solar N Type All Black Solar Panels 420w 425w 430w 435w 440w Solar Module MOQ 10000watt
Brand Name:JINko
Material:Monocrystalline Silicon
Warranty:25 YEARS
Certificate:CE
Cell size:Tiger Neo N-type 54HL4R-B 420-440 W
Junction Box:IP68 Rated
No. of cells:108 (6*18)
Panel Efficiency:22.02%SKU: n/a -
-
JinKo Solar Panel
Jinko Mono PERC Cell Factory Price 400W 450W 500W 600W Solar PV Panels Module Solar Panel MOQ 10000watt
JinKo Solar PanelJinko Mono PERC Cell Factory Price 400W 450W 500W 600W Solar PV Panels Module Solar Panel MOQ 10000watt
No.of Half-cells：144(6×24)
Dimensions：2278x1134x35mm(89.69×44.65×1.38inch)
Weight：28kg
Front Glass：3.2mm,Anti-Reflection Coating,High Transmission, Low lron, Tempered Glass
Frame：Anodized Aluminium Alloy
Junction Box：IP68 Rated
Output Cables：TÜV 1×4.0mm2,(+) 400mm, (-) 200mm or Customized LengthSKU: n/a -
JinKo Solar Panel
Jinko Mono Perc Cell Solar Panel 530W 540W 550W For Home Use Photovoltaic Panel
Specification
Ultra-high Power for the Lowest LCOE and Highest IRR
Ultra-high Efficiency of 21.4%
Reliable Tiling Ribbon Technology Eliminating the lnter-cell Gap
Multi Busbar Technology Decreasing the Resistance LossSKU: n/a -
JinKo Solar Panel
Jinko Solar 400w 405w 410w Solar Panel Monocrystalline Silicon 144 Cell MOQ 30PCS
Mono-crystalline modules designed for residential and utility applications, rooftop and ground mount.
Anti-reflective and self-cleaning surface reduces power loss from dirt and dust.
Excellent mechnical load resistance: certified to with stand high wind loads(2400Pa) and snow load(5400Pa)SKU: n/a -
JinKo Solar Panel
Jinko Solar Mono Panel Market Solar Panel 540W~555W Facial p-Type PV Modules MOQ 10000Watt
JinKo Solar PanelJinko Solar Mono Panel Market Solar Panel 540W~555W Facial p-Type PV Modules MOQ 10000Watt
Solar Panel specifications
Operating Temperature(℃) -40℃~+85℃
Maximum system voltage 1000/1500VDC (IEC)
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.35%/℃
Temperature coefficients of Voc -0.28%/℃
Temperature coefficients of Isc 0.048%/℃SKU: n/a -
JinKo Solar Panel
Jinko Solar Panel N type All Black 400W 405W 410W 420W Mono PV Module MOQ 10000Watt
JinKo Solar PanelJinko Solar Panel N type All Black 400W 405W 410W 420W Mono PV Module MOQ 10000Watt
Brand Name Jinko
Cell size 182mmx182mm
Solar Panel Type Half Cell, All Black, N-TYPE
Panel Dimensions 1722*1134*30mm
Junction Box IP68 Rated
Certificate CE TUV
Warranty 30 years
Weight 22kg
Packaging Configuration
36pcs/pallets, 72pcs/stack, 936pcs/ 40’HQ ContainerSKU: n/a -
JinKo Solar Panel

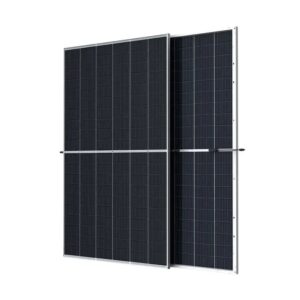

Jinko Solar Panel Tiger Neo N-Type 78HL4-(V) 595-615 Watt Mono Facial Solar Bifacial Module MOQ 10000Watt
JinKo Solar PanelJinko Solar Panel Tiger Neo N-Type 78HL4-(V) 595-615 Watt Mono Facial Solar Bifacial Module MOQ 10000Watt
SMBB Technology
Better light trapping and current collection to improve module power output and reliability.
Hot 2.0 Technology
The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.SKU: n/a -
JinKo Solar Panel
Jinko Solar Panels 550w High Efficiency PV Panel 540w 550w Powerful Cell Price MOQ 10000Watt
JinKo Solar PanelJinko Solar Panels 550w High Efficiency PV Panel 540w 550w Powerful Cell Price MOQ 10000Watt
Key Features
1.SMBB Technology
Better light trapping and current collection to improve module power output and reliability.
2.HOT Hot 2.0 Technology
The N-type module with Hot 2.0 technology hes better reliability and lower LID/LETID.
3.PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
4.Enhanced Mechanical Load
Certified to withstand: wind load（2400 Pascal）and snow load（5400 Pascal）.
5.Durability Against Extreme Environmental conditions
High salt mist and ammonia resistance.
SKU: n/a -
JinKo Solar Panel
Jinko Solar Panels Tiger Neo N-Type 54Hl4-B 400-420 Watt Module All Black PV Panel For Home Use MOQ 10000Watt
JinKo Solar PanelJinko Solar Panels Tiger Neo N-Type 54Hl4-B 400-420 Watt Module All Black PV Panel For Home Use MOQ 10000Watt
STC ：Irradiance 1000W/m², Cell temperature 25℃, Air Mass AM1.5
Operational Temperature： -40~+85℃
Maximum System Voltage： 1000V DC(IEC/UL)
Max Series Fuse Rating： 25A
Temperature Coefficient of Pmax ：-0.30%/℃
Temperature Coefficient of Voc： -0.250%/℃
Temperature Coefficient of Isc ：+0.046%/℃SKU: n/a -
-
JinKo Solar Panel
Monocrystalline Solar Panel 72 Cells 300W~360W Solar Panels MOQ 10000Watts
Cell Type： 156.75mm x 156.75mm
Number of Cells：72 cells in series
Weight：22.5 kg (49.60 lbs)
Dimension：1956×992×40mm (77.01×39.06×1.58 inch)
Max Load ：5400 Pascals ( 112 lb/ft 2 )
Junction Box： ≥ IP67 rated
Connector：MC4 Compatible
Output cable ：PV 1-F 4mm 2
SKU: n/a -
