Sungrow Solar Inverter SG5.0/6.0/7.0/8.0/10/12RT Multi-MPPT String Inverter for 1000 Vdc System Three Phase On Grid Solar Inverter

Add to wishlist
Compare

High yield

  • Lower startup & wider MPPT voltage
  • Compatible with bifacial modules
  • Built-in PID recovery function

Smart management

  • Smart IV curve scanning
  • 24 / 7 Live monitoring
  • Remote firmware updates

$970.00

Compare

Features of Sungrow Solar Inverter

Safe and durable

  • Quick arc fault circuit interrupter
  • Build-in Type II DC & AC SPD
  • High anti-corrosion rating C5

Easy and user friendly

  • 18 kg compact design
  • Unique push-in connectors
  • Fast and easy commissioning via App

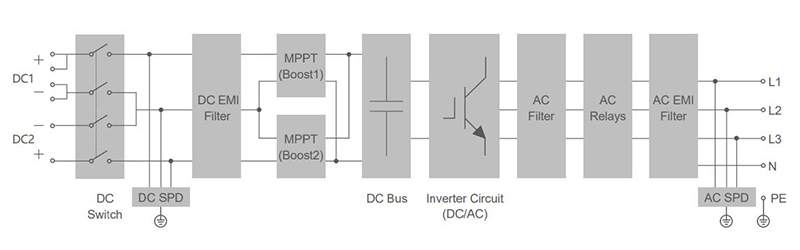

CIRCUIT DIAGRAM(SG10RT)

EFFICIENCY CURVE

lnput (DC)

lnput (DC) SG5.0RT SG6.0RT SG7.0RT SG8.0RT SG10.0RT SG12.0RT
Recommended max.PV input power 7.5kWp 9.0kWp 10.5kWp 12kWp 15kWp 18kWp
Max.PV input voltage 1100V* 1100V* 1100V* 1100V* 1100V* 1100V*
Min. PV input voltage / start-up input voltage 180V/180V 180V/180V 180V/180V 180V/180V 180V/180V 180V/180V
Rated input voltage 600V 600V 600V 600V 600V 600V
MPP voltage range 160V-1000V 160V-1000V 160V-1000V 160V-1000V 160V-1000V 160V-1000V
No. of independent MPP inputs 2 2 2 2 2 2
No.of PV strings per MPPT 1/1 1/1 2/1 2/1 2/1 2/1
Max. PV input current 25A(12.5A/12.5A) 25A(12.5A/12.5A) 37.5A(25A/12.5A) 37.5A(25A/12.5A) 37.5A(25A/12.5A) 37.5A(25A/12.5A)
Max.DC short-circuit current 32A(16A/16A) 32A(16A/16A) 48A(32A/16A) 48A(32A/16A) 48A(32A/16A) 48A(32A/16A)
Max. current for DC connector 30A 30A 30A 30A 30A 30A

Output (AC)

Output (AC) SG5.0RT SG6.0RT SG7.0RT SG8.0RT SG10.0RT SG12.0RT
Rated AC output power 5000W 6000W 7000W 8000W 10000W 12000W
Max.AC output apparent power 5500VA** 6600VA** 7700VA** 8800VA** 11000VA** 13200VA**
Rated AC output apparent power 5500VA** 6600VA** 7700VA** 8800VA** 11000VA** 13200VA**
Max.AC output current 8.3A 10A 11.7A 13.3A 16.7A*** 20A
Rated AC output current(at 230V) 7.2A 8.7A 10.1A 11.6A 14.5A 17.4A
Rated AC voltage 3/N/PE, 220/380V; 3/N/PE, 230/400V; 3/N/PE, 240/415V
AC voltage range 180V-276V / 311V-478V
Rated grid frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Grid frequency range 45-55Hz/55*65Hz
Harmonic (THD) ＜3% (st rated power)
Power factor at Rated power /Adjustable power factor ＞0.99/0.8 leading-0.8 lagging
Feed-in phases / Connection phases 3/3-PE 3/3-PE 3/3-PE 3/3-PE 3/3-PE 3/3-PE
Max. Efficiency 98.40% 98.40% 98.40% 98.50% 98.50% 98.50%
European Efficiency 97.40% 97.40% 97.70% 97.80% 97.90% 97.90%

*: The inverter enters the standby state when the input voltage ranges between1,000V and 1,100V. If the maximum DC voltage in the system can exceed 1000V, the MC4 connectors included in the scope of delivery must not be used. In this case MC4 Evo2 connectors must be used.
** For Germany, max. AC output power: SG5.0RT is 5000VA, SG6.0RT is 6000VA, SG7.0RT is 7000VA, SG8.0RT is 8000VA, SG10RT is 10000VA, SG12RT is 12000VA.
*** For Jordan, max. AC output current: SG10RT is 16 A.

Category: Tags: ,
Output Power

5KW, 6KW, 7KW, 8KW, 10KW, 12KW
