Hydraulic pumps convert mechanical energy into fluid power for hydraulic systems and equipment. These pumps include gear, vane and piston types designed for high pressure, high efficiency and demanding industrial use. They suit applications in construction, manufacturing, mobile machinery and fluid-power systems. Choosing the right hydraulic pump improves performance, reduces downtime and ensures long-term system reliability.
Hydraulic Pumps
Showing all 16 results
-
Hydraulic Pumps, Hydraulics

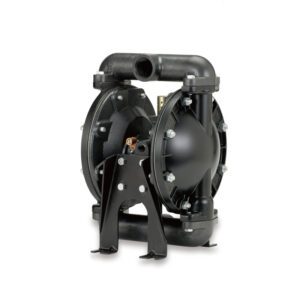

Air Operated Diaphragm Pump 1 Inch Aluminum Alloy Diaphragm Pump 35 GPM Max 120PSI
Hydraulic Pumps, HydraulicsAir Operated Diaphragm Pump 1 Inch Aluminum Alloy Diaphragm Pump 35 GPM Max 120PSI
Ratio: 1:7
Maximum Flow: 35-g.p.m. (133-l.p.m.)
Displacement per cycle: 0.16 gallons (0.60 liters)
Air inlet: (internal thread) 1/4 – 18 N.PT.F- 1
Inlet/Outlet: 1 – 11-1/2 N.PT.F- 1 , Rp 1 (1-11 BSP Parallel)
Maximum Working Pressure: 120-psi (8.3-bar)
Maximum diameter of suspended solids that can pass: 1/8-in. (3.2-mm)
Weight: Ibs (kg)
666100-X-C (aluminum alloy) 19 (8.6)
666101-X-C (stainless steel) 36 (16.3)
666102-X-C (cast iron) 31 (14.7)
Note: For cast iron air motor section, add 8-bs (3.63-kg)
Maximum dry suction height: ft (m) 20 (6.1)
Sound Level: 70 PSI 60 cycles/min 64.5 db(A)SKU: n/a -
Hydraulic Pumps, Hydraulics
Hydraulic electric pump 18V rechargeable portable lithium battery small ultra-high pressure oil pump hydraulic pump station
Hydraulic Pumps, HydraulicsHydraulic electric pump 18V rechargeable portable lithium battery small ultra-high pressure oil pump hydraulic pump station
Features
·Pressure overload protection device to avoid equipment overpressure damage;
The rechargeable model is more suitable for field use. Compared with the traditional manual, it has higher pressure and more oil storage capacity. It is driven by electric power and does not need to be manually operated;
·High and low pressure two-stage output, when the low pressure reaches 7MPa, the pressure will automatically jump to high pressure, automatic conversion, no need to manually;
·Two 4AH large-capacity batteries are durable and suitable for more different hydraulic tools.SKU: n/a -
Hydraulic Pumps, Hydraulics

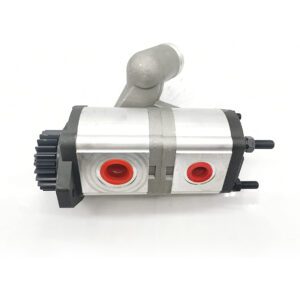

Hydraulic gear pump, RE223233 Agricultural pump, RE197623 Hydraulic
Serie 5200: 5203 5203S 5204
Serie 5400: 5403
Serie 5500: 5503
Serie 5600: 5610
Serie 5B: 5B-550, 5B-550-1, 5B-554 5B-554-1
Serie 5B: 5B-650, 5B-650-1, 5B-654 5B-654-1
Serie 5B: 5B-700, 5B-700-1,5B-704 5B-704-1
Serie 5B: 5B-750, 5B-750-1
Serie 5B: 5B-754, 5B-754-1
Best Price Guaranteed
Replaces OEM nos RE223233
Condition: New Aftermarket Tractor Part
Warranty: 1 YearSKU: n/a -
Hydraulic Pumps, Hydraulics

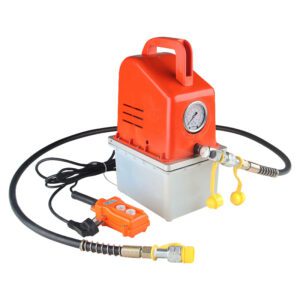

Hydraulic pump, hydraulic electric pump CTE-25AD, hydraulic oil pump, electric hydraulic pump, pressure pump
Hydraulic Pumps, HydraulicsHydraulic pump, hydraulic electric pump CTE-25AD, hydraulic oil pump, electric hydraulic pump, pressure pump
Maximum output pressure: high pressure: 700KG/CM2 / low pressure: 70KG/CM2
Oil output: high pressure: 0.6L/min / low pressure: 3.52L/min
Voltage: 220V/50HZ 0.45KW /
Weight: 16KG Dimensions (MM): 315×270×365
Oil storage capacity: 3LSKU: n/a -
Hydraulics, Hydraulic Pumps
Manual pressure test pump 40kg,60kg coal to electricity coal to gas PPR water pipe leak detector
Hydraulics, Hydraulic PumpsManual pressure test pump 40kg,60kg coal to electricity coal to gas PPR water pipe leak detector
Failure Causes and Solutions
(1) When the handle moves upward, the water cannot be sucked up 1. Check whether the suction pipe is blocked by garbage 2. Check whether the switch is tightened
(2) Weakness when the handle moves up and down 1. Check whether the switch is tightened
2. Check whether the sealing ring of the piston shaft is damaged. 3. Check whether the one-way valve in the water outlet joint is dirty. (3) The pressure gauge shows that the pressure is unstable. 1. There is leakage in the pipeline or the water outlet joint, and the sealing ring should be replaced 2. Leakage at the connection of the gauge rod, replace the sealing ring 3. The pressure gauge is damaged, repair the pressure gaugeSKU: n/a -
Hydraulics, Hydraulic Pumps
Manual pressure test pump, pressure pump, PPR water pipe pressure test, household 70kg pressure pump floor heating leak detector
Hydraulics, Hydraulic PumpsManual pressure test pump, pressure pump, PPR water pipe pressure test, household 70kg pressure pump floor heating leak detector
Pressure rod: 38cm
Box: 30cm
Box width: 20cm
Cabinet height: 9cm
Pump body height: 12cm
Wall thickness: 1.35mm
Water tank volume: 18 liters
Flow: 35cm³/time
Net weight: 3.7kg
Package size: 33cm*20cm*25cmSKU: n/a -
Hydraulics, Hydraulic Pumps
P-392 2 Speed lightweight hydraulic hand pump
- High-pressure, lightweight hydraulic hand pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately)
- Glass-filled nylon reservoir and nylon-covered aluminum base provide corrosion resistance and are lighter than steel hydraulic hand pumps
- Internal pressure relief valve protects against overloading the pump
- Two-speed operation requires fewer handle strokes than single-speed hydraulic hand pumps
- First-stage pressure rating of 200 psi and second-stage pressure rating of 10,000 psi
SKU: n/a -
Hydraulic Pumps, Hydraulics

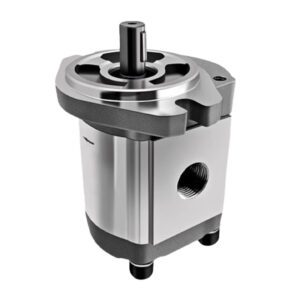

Single Gear Pump HGP-3A Series High Pressure Mini Oil Pump for Engineering Machinery Hydraulic Systems Pressure 21Mpa~25Mpa Qmax:2cc/rev~12cc/rev (HGP-3A-F14R),waterjet cutting marble
Hydraulic Pumps, HydraulicsSingle Gear Pump HGP-3A Series High Pressure Mini Oil Pump for Engineering Machinery Hydraulic Systems Pressure 21Mpa~25Mpa Qmax:2cc/rev~12cc/rev (HGP-3A-F14R),waterjet cutting marble
- Pls check the size and mounting before you order.
- We provide many different models pumps with High quality.
- If you want to know the exact lead time or need it urgent, pls contact me.
- If you have any other questions pls contact me.
SKU: n/a -
Hydraulic Pumps, Hydraulics

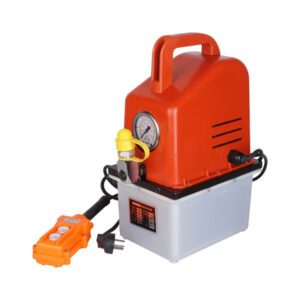

Small hydraulic pump 25A Electric hydraulic pump Ultra-high pressure hydraulic electric pump
Hydraulic Pumps, HydraulicsSmall hydraulic pump 25A Electric hydraulic pump Ultra-high pressure hydraulic electric pump
Function DescriptionFunction:
The hydraulic electric pump has the functions of small size, high pressure, light weight, easy to carry, easy to operate, and widely used;
High and low pressure two-stage output, large oil volume;
The low pressure adopts the plunger type to increase the effective pressure;
Single oil circuit, electromagnetic wired remote control, suitable for various functions such as cutting, perforating, bending, lifting, etc.;
Pressure overload protection device to avoid damage to equipment caused by overpressure;
Automatic protection to ensure that it will not be leaked during use;
Equipped with a pressure switch, the oil pump can be controlled to stop working when the pressure is in place.
Weight: 13KGSKU: n/a -
Hydraulic Pumps, Hydraulics

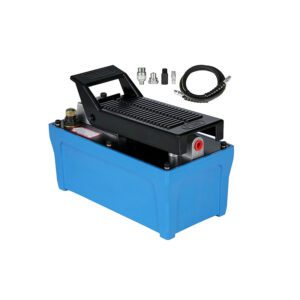

Ultra-high pressure pneumatic hydraulic pump, foot hydraulic pneumatic pump, oil storage 1.6L, fuel tank hydraulic foot pump, pneumatic pedal foot drive, used for body frame machines and tie rods (the pump does not contain oil)
Hydraulic Pumps, HydraulicsUltra-high pressure pneumatic hydraulic pump, foot hydraulic pneumatic pump, oil storage 1.6L, fuel tank hydraulic foot pump, pneumatic pedal foot drive, used for body frame machines and tie rods (the pump does not contain oil)
1.Excellent pressure holding performance
2.Suitable for non-spark operating environment
3.Built-in silencer significantly reduces noise and reduces personnel fatigue
4.Air and oil filters reduce pollutant damage to the pump body
5.The aluminum alloy pump body and shell are both durable and lightweight.
6.Built-in relief valve to prevent overload operation
7.The unique needle valve guides the pressure relief, which is more conducive to manual or pedal operation.
Oil storage capacity: 1.6L
Rated power: 700bar
High pressure and low pressure oil discharge: 0.12 (0.8)L/min
Weight: 8.6kg
Packing: cartonSKU: n/a -
Hydraulic Pumps, Hydraulics

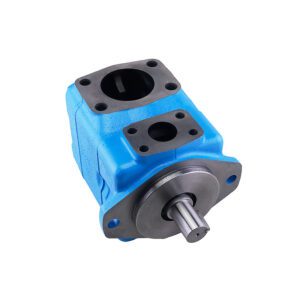

Vane pump 45V-60A-1C-22R machine tool engineering machinery high pressure master hydraulic vane pump
Hydraulic Pumps, HydraulicsVane pump 45V-60A-1C-22R machine tool engineering machinery high pressure master hydraulic vane pump
pump start
1. Before starting the oil pump, check the inlet and steering, and do not make mistakes in the direction.
2. Fill the pump with oil for the first start, and turn the coupling by hand. The rotation force should feel even and flexible.
3. When the machine is started for the first time or after a long-term shutdown, it will cause air suction. Therefore, an exhaust valve should be installed at the output port, or the outlet flange should be slightly loosened to remove air, and a test run should be carried out under no-load conditions as much as possible.SKU: n/a -
Hydraulic Pumps, Hydraulics
Vane pump pump core 25V-21 hydraulic vane pump core kit
Imported CNC grinding machine
Precision South Korea imports rotor-stator CNC grinding machine, double-sided simultaneous grinding in a 25-degree constant temperature closed room without dust, which ensures the balance of the rotor-stator, uniform thickness, thereby improving volumetric efficiency, reducing noise and strengthening sealing.
Exclusive support ring accessory
A unique supporting ring (yellow rubber ring) is specially provided for the research of the pump core, so as to effectively prevent the sealing ring from being damaged under high temperature and high pressure, and ensure the stable output of the oil pump pressure.SKU: n/a -
Hydraulics, Hydraulic Pumps

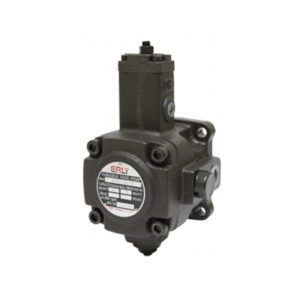

VPE-F30D-10EALY Yili oil pump electric, near rail low pressure variable vane pump
Hydraulics, Hydraulic PumpsVPE-F30D-10EALY Yili oil pump electric, near rail low pressure variable vane pump
1. Save horsepower and low noise level.
2. Wear and heat resistance.
3. High volume efficiency.
4. Speed MAX: 1800r/min
5. Speed MIN: 800r/min
6. Smooth running and stable operation particularly suitable for machine tools and single-purple machines.SKU: n/a
