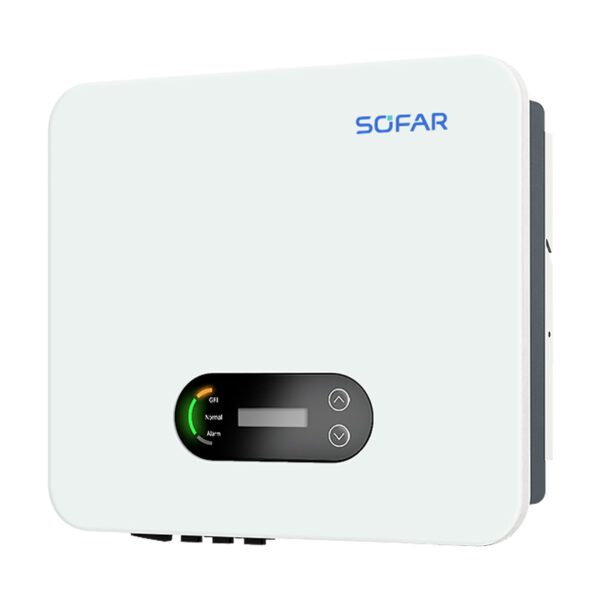

Residential PV Inverters SOFAR 3.3K~12KTLX-G3 Three-phase Dual MPPT Solar Inverter 3.3kW 4.4kW 5.5kW 6.6kW 8.8kW 11kW 12kW PV Inverter
Residential PV Inverters SOFAR 3.3K~12KTLX-G3 Three-phase Dual MPPT Solar Inverter 3.3kW 4.4kW 5.5kW 6.6kW 8.8kW 11kW 12kW PV Inverter - Image 2

Residential PV Inverters SOFAR 3.3K~12KTLX-G3 Three-phase Dual MPPT Solar Inverter 3.3kW 4.4kW 5.5kW 6.6kW 8.8kW 11kW 12kW PV Inverter

Compare
  • Maximum efficiency 98.6%
  • Low start-up voltage, wide MPPT voltage
  • Maximum DC input voltage 1100 V
  • Smart string level monitoring
  • Remote firmware upgrade
  • Natural cooling, no fans, low noise
  • Type II SPD for both DC and AC side

$685.00

Compare

General Data of the Residential PV Inverters

  1. Dimension (W×H×D): 430×385×182mm
  2. Ambient temperature range: 30℃～+60℃
  3. Self-consumption at night: <1W
  4. Topology: Transformerless
  5. Degree of protection: IP65
  6. Allowable relative humidity range: 0～100%
  7. Max. operating altitude: 4000m
  8. Cooling: Natural
  9. Display: LCD & Bluetooth +APP
  10. Communication: RS485/WiFi
  11. Standard: IEC/EN 61000-6-1/3, IEC/EN 61000-3-2/3, IEC/EN 61000-3-11/12,IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC/EN 62109-1/2G98/G99, CEI0-21, VDE-AR-N 4105, VDE V 0126-1-1, EN 50549-1, UNE 217002-2020

Model 3.3KTLX – G3 4.4KTLX – G3 5.5KTLX – G3 6.6KTLX – G3 8.8KTLX – G3 11KTLX – G3 10KTLX – G3 -A 12KTLX – G3
Input (DC)
Max. input voltage 1100V 1100V 1100V 1100V 1100V 1100V 1100V 1100V
Rated input voltage 650V 650V 650V 650V 650V 650V 650V 650V
Start-up voltage 160V 160V 160V 160V 160V 160V 160V 160V
MPPT operating voltage range 140V～1000V 140V～1000V 140V～1000V 140V～1000V 140V～1000V 140V～1000V 140V～1000V 140V～1000V
Number of MPP trackers 2 2 2 2 2 2 2 2
Number of DC inputs 1/1 1/1 1/1 1/1 1/2 1/2 1/2 1/2
Max. input MPPT current 15A /15A 15A /15A 15A /15A 15A /15A 15A /15A 15A /15A 15A /15A 15A /15A
Max. input short circuit current 22.5A /22.5A 22.5A /22.5A 22.5A /22.5A 22.5A /22.5A 22.5A /22.5A 22.5A /22.5A 22.5A /22.5A 22.5A /22.5A
Output (AC)
AC output power 3000W 4000W 5000W 6000W 8000W 10000W 10000W 12000W
Max. apparent power 3300 VA 4400 VA 5500 VA 6600 VA 8800 VA 11000 VA 10000 VA 13200 VA
Max.output current 5A 6.7A 8.3A 10A 13.3A 16.7A 15.2A 20A
Rated output voltage 3/N/PE, 230/400 Vac 3/N/PE, 230/400 Vac 3/N/PE, 230/400 Vac 3/N/PE, 230/400 Vac 3/N/PE, 230/400 Vac 3/N/PE, 230/400 Vac 3/N/PE, 230/400 Vac 3/N/PE, 230/400 Vac
Output voltage range 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac
Rated output frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Output frequency range 45Hz-55Hz/55Hz-65Hz
Active power adjustable range 0~100% 0~100% 0~100% 0~100% 0~100% 0~100% 0~100% 0~100%
THDi <3% <3% <3% <3% <3% <3% <3% <3%
Power factor 1 (adjustable+/-0.8 )
Efficiency
Max. efficiency 98.40% 98.40% 98.40% 98.40% 98.50% 98.50% 98.50% 98.50%
European efficiency 97.50% 97.50% 97.50% 97.50% 98.00% 98.00% 98.00% 98.00%
Protection
Dc reverse polarity protection Yes Yes Yes Yes Yes Yes Yes Yes
Anti-islanding protection Yes Yes Yes Yes Yes Yes Yes Yes
Leakage current protection Yes Yes Yes Yes Yes Yes Yes Yes
Ground fault monitoring Yes Yes Yes Yes Yes Yes Yes Yes
PV-array string fault monitoring Yes Yes Yes Yes Yes Yes Yes Yes
DC switch Yes Yes Yes Yes Yes Yes Yes Yes
PID recovery Yes Yes Yes Yes Yes Yes Yes Yes
SPD PV: type II, AC: type II
