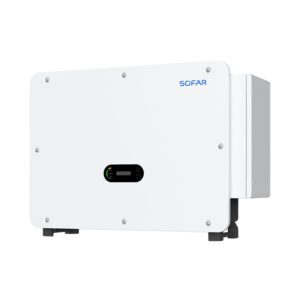

SOFAR Solar Inverter
C&I PV Inverter SOFAR 60K~80KTLX-G3 Three-phase 6 MPPTs Solar Inverter 60kW 80kW Commercial Inverters Industrial Inverters
- Dimension (W*HxD): 687×561×275mm
- Weight: 50kg
- Ambient temperature range: -30℃~+60℃
- Self-consumption at night: <2W
- Topology: Transformerless
- Degree of protection: IP66
- Allowable relative humidity range: 0~100%
- Max.operating altitude: 4000m (>3000m derating)
- Cooling: Smart air cooling
- Display: LCD & Bluetooth +APP
- Communication: RS485/WiFi
- Standard: IEC/EN 61000-6-2/4IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC/EN 62109-1/2G99, VDE-AR-N 4105, VDE V 0126-1-1,CEI0-21, EN 50549-1,UNE 217002-2020
$3,052.00
CompareProduct advantages of the C&I PV Inverter SOFAR 60K~80KTLX-G3
- Max. input MPPT current: 40A.
- Max. efficiency up to 98.7%.
- Longtime 110% AC overload ability.
- Type II SPD for both DC and AC side.
- 6 MPPTs with 1.5 times DC overload.
- Low start-up voltage, wide MPPT voltage range.
- Compatible with 500 W+ PV modules.
- I-V curve scanning function.
| Datasheet | SOFAR 60KTLX2-G3 | SOFAR 80KTLX2-G3 |
| Input (DC) | ||
| Max. input voltage | 1100V | 1100V |
| Rated input voltage | 620V | 620V |
| Start-up voltage | 200V | 200V |
| MPPT operating voltage range | 180V～1000V | 180V～1000V |
| Number of MPPTs | 6 | 6 |
| Number of DC inputs | 2 for each MPPT | 2 for each MPPT |
| Max. input MPPT current | 6*40A | 6*40A |
| Max. input short circuit current | 6*40A | 6*40A |
| Output (AC) | ||
| Rated output power | 60000W | 80000W |
| Max. apparent power | 66000VA | 88000VA |
| Max. output current | 100A | 133.3A |
| Rated output voltage | 3/N/PE, 230/400Vac | 3/N/PE, 230/400Vac |
| Output voltage range | 310Vac-480Vac | 310Vac-480Vac |
| Rated output frequency | 50/60Hz | 50/60Hz |
| Output frequency range | 45Hz-55Hz/55Hz-65Hz | 45Hz-55Hz/55Hz-65Hz |
| Active power adjustable range | 0～100% | 0～100% |
| THDi | <3% | <3% |
| Power factor | 1 (adjustable +/-0.8) | 1 (adjustable +/-0.8) |
| Efficiency | ||
| Max.efficiency | 98.7% | 98.7% |
| European efficiency | 98.2% | 98.2% |
| Protection | ||
| DC reverse polarity protection | Yes | Yes |
| Anti-islanding protection | Yes | Yes |
| Leakage current protection | Yes | Yes |
| Ground fault monitoring | Yes | Yes |
| PV-array string fault monitoring | Yes | Yes |
| DC switch | Yes | Yes |
| SPD | PV: type II, AC: type II | PV: type II, AC: type II |
Related products
-
Transformers
15KVA Isolation Transformer Three-Phase 380V to 220V 200V CNC Machine Tool Equipment Supporting Safety Isolation Power Supply
Transformers15KVA Isolation Transformer Three-Phase 380V to 220V 200V CNC Machine Tool Equipment Supporting Safety Isolation Power Supply
- Universal casters: 360° caster design, easy to move. Wear-resistant, long service life, more effortless to push.
- Safety door lock: easy to use, strong and durable. The safety door lock prevents non-staff from opening it, which is safe and reliable.
- Impregnation process: The coil after the immersion process has a layer of insulating resin on the surface. The coil temperature rise is low, the loss is small, and it is durable.
NOTE: Prices may vary by product model and material.
SKU: n/a -

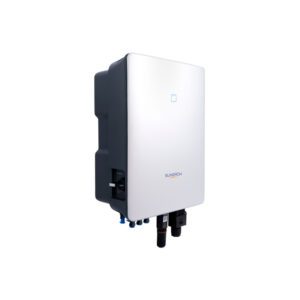

SUNGROW Solar Inverter
