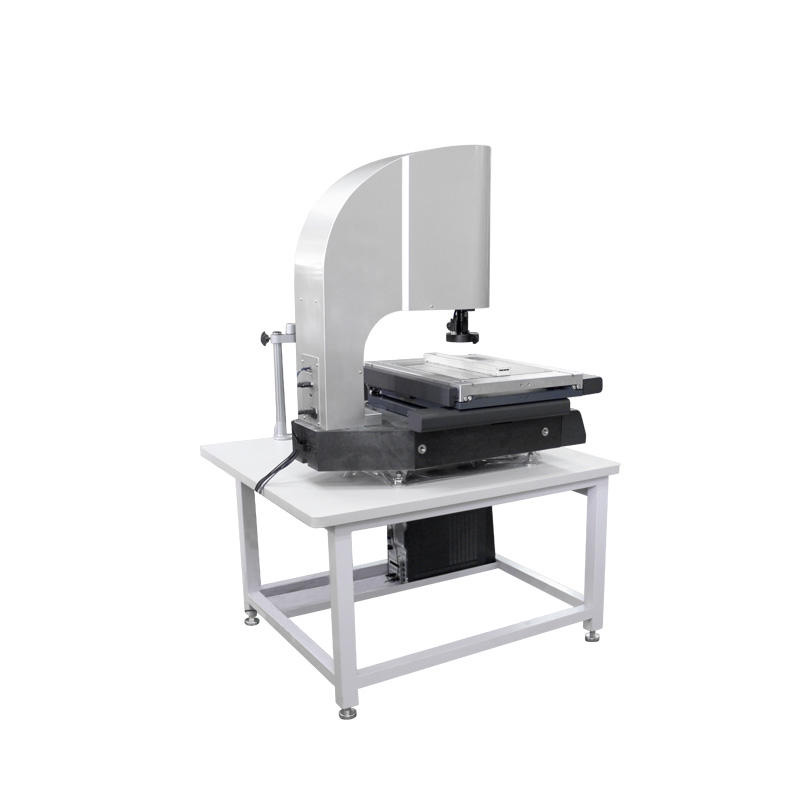

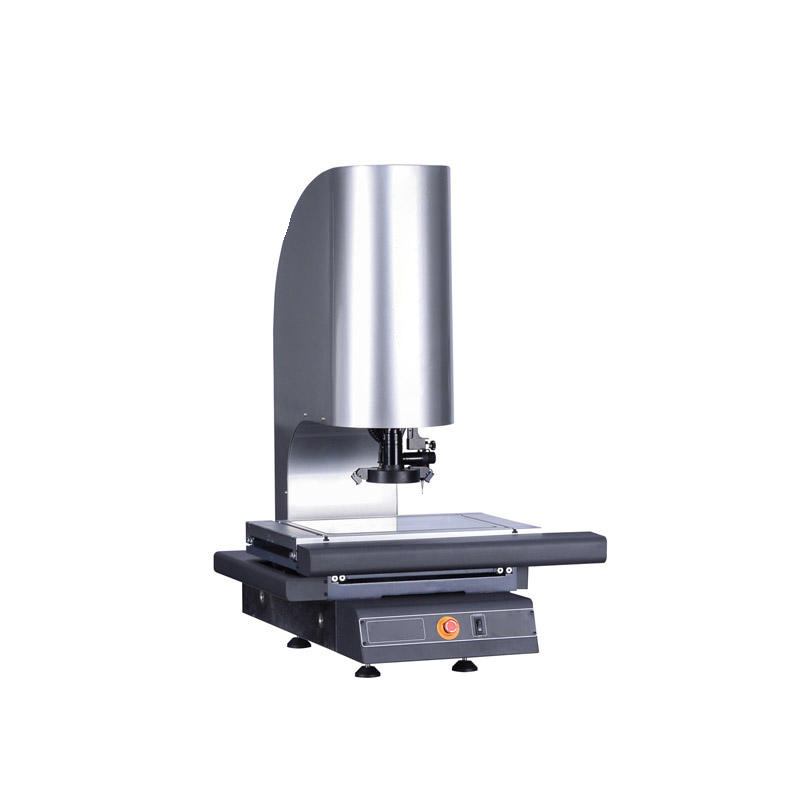

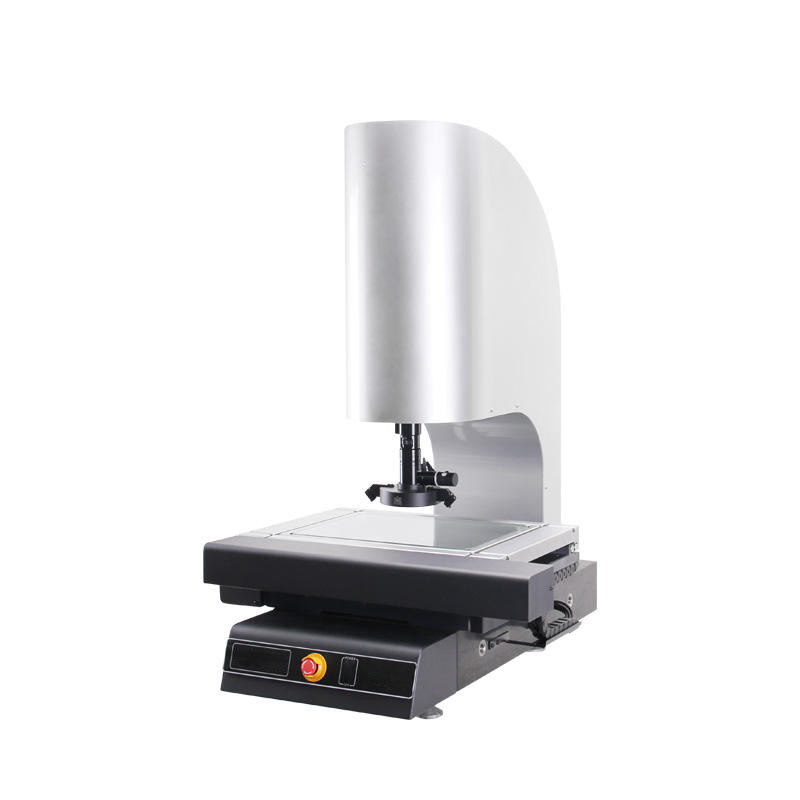

CNC Vision Metrology for Production Line High Efficiency
This high-efficiency automated system is a professional vision metrology station designed for rapid batch inspection in modern production lines and assembly plants. It functions as an intelligent optical sensor that automatically identifies part dimensions and geometric tolerances to maintain high-throughput quality consistency. The device features a programmable high-speed motorized stage and multi-angle LED lighting, utilizing advanced sub-pixel edge detection algorithms and automated focus technology to provide precise measurements in seconds for thousands of micro-components.
$21.00
CompareProduct Introduction for CNC Vision Metrology
This high-efficiency automated system is a professional vision metrology station designed for rapid batch inspection in modern production lines and assembly plants. It functions as an intelligent optical sensor that automatically identifies part dimensions and geometric tolerances to maintain high-throughput quality consistency. The device features a programmable high-speed motorized stage and multi-angle LED lighting, utilizing advanced sub-pixel edge detection algorithms and automated focus technology to provide precise measurements in seconds for thousands of micro-components.
Parameter Table
| Applications | 2D and 2.5D Measurement |
| Stroke (mm) | 370*270 |
| Accuracy (mm) | E1xy = (2.5 + L/100) ½m |
| Volume (mm) | 970mm * 670mm * 940mm |
| Weight (kg) | 266 |
Application Scenario
- High-Speed Electronics Assembly
- Automated Automotive Parts Inspection
- Large Batch Hardware Manufacturing
- Semiconductor Lead Frame Testing
Contact us to get your quotation now.
Related products
-
Metrology
Image Measuring Instrument For Dimension Manual 2D Measurement
- The semi-automatic vision measuring machine provides customers with measurement function and user experience beyond ordinary products.
- Full range of z-axis servo control, standard configuration of hand pulse generator for fine control and fine-tuning of Z-axis motion, with automatic image focusing function, your measurement efficiency and user experience are greatly improved.
- Granite base and column, excellent stability.
- The Z-axis adopts high-precision linear guide and servo motor control system to realize automatic focusing, eliminate the error of artificial focusing, and improve the measurement accuracy and stability.
- Aluminum work stage,make the motion control fast reacting and flexible.
SKU: n/a -
Digital Readout Equipment, Metrology

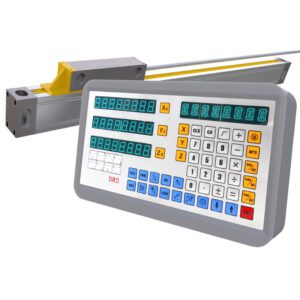

Optical Linear Scale 3 Axis 800mm High-Precision Grating Ruler Digital Display Table Milling Machine Lathe Grinding Machine Displacement Sensor
