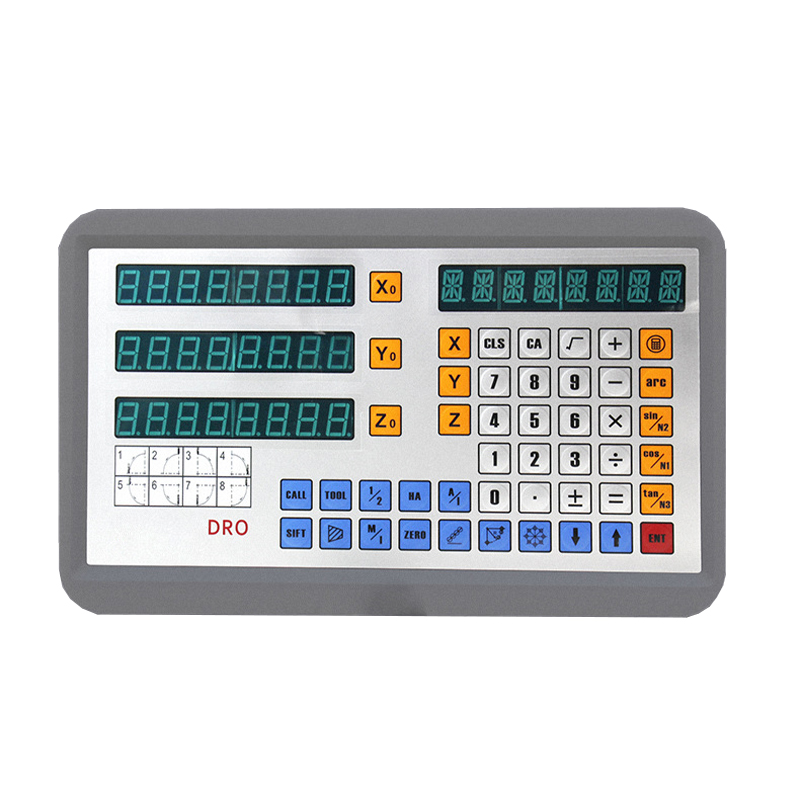

Optical Linear Scale 3 Axis 800mm High-Precision Grating Ruler Digital Display Table Milling Machine Lathe Grinding Machine Displacement Sensor

Add to wishlist
Compare
  • Effective length: 800mm
  • Total length: 924mm
  • Resolution: 5μm
  • Allow output signal: TTL
  • Power supply voltage: 85V-220V 50HZ-60HZ
  • Power supply voltage: 10W 0.5A

Note: Prices may vary depending on product capacity and quality.

$325.00

Compare

Optical Linear Scale 3 Axis 800mm

Specification Effective range Center hole distance Total length
100 100 mm 224 mm 240 mm
150 150 mm 274 mm 290 mm
200 200 mm 324 mm 340 mm
250 250 mm 374 mm 390 mm
300 300 mm 424 mm 440 mm
350 350 mm 474 mm 490 mm
400 400 mm 524 mm 540 mm
450 450 mm 574 mm 590 mm
500 500 mm 624 mm 640 mm
550 550 mm 674 mm 690 mm
600 600 mm 724 mm 740 mm
650 650 mm 774 mm 790 mm
700 700 mm 824 mm 840 mm
750 750 mm 874 mm 890 mm
800 800 mm 924 mm 940 mm
850 850 mm 974 mm 990 mm
900 900 mm 1024 mm 1040 mm
950 950 mm 1074 mm 1090 mm
1000 1000 mm 1124 mm 1140 mm
1100 1100 mm 1250 mm 1270 mm
1200 1200 mm 1350 mm 1370 mm
1300 1300 mm 1450 mm 1470 mm
1400 1400 mm 1550 mm 1570 mm
1500 1500 mm 1650 mm 1670 mm
1700 1700 mm 1850 mm 1870 mm
1800 1800 mm 1950 mm 1970 mm
2000 2000 mm 2150 mm 2170 mm
2200 2200 mm 2350 mm 2370 mm
2400 2400 mm 2550 mm 2570 mm
2500 2500 mm 2650 mm 2670 mm
2600 2600 mm 2650 mm 2670 mm
2800 2800 mm 2950 mm 2970 mm
3000 3000 mm 3150 mm 3170 mm

Feature

  • Sealed protection against water/dust/oil.
  • No battery required, plug-in use: comes with a power plug, safe to operate.
  • High precision, enclosed grating ruler.
  • Built-in output, driver chip: accurate, complete and reliable digital transmission.

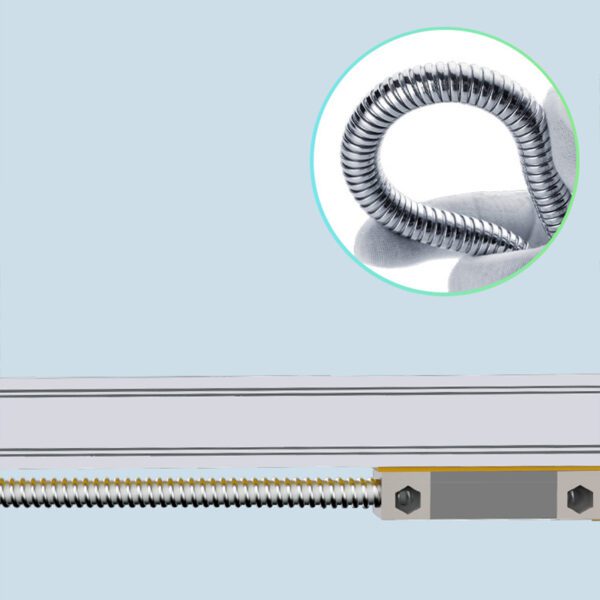

  • High-quality inner core, stainless steel conduit: durable, long life, resistant to bending.
  • High-quality copper core, signal cable: low line loss, stable signal.

Application Scenario
