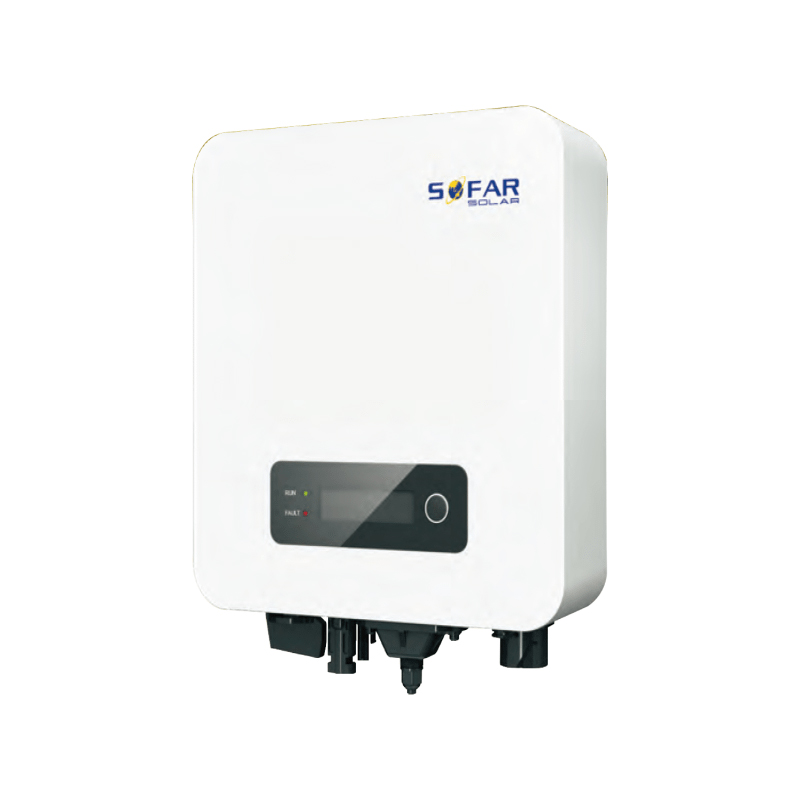

Residential PV Inverters SOFAR 1100~3300TL-G3 Single-Phase Solar Inverter with Single MPPT 1100 / 1600 / 2200 / 2700 / 3000 / 3300 W
Residential PV Inverters SOFAR 1100~3300TL-G3 Single-Phase Solar Inverter with Single MPPT 1100 / 1600 / 2200 / 2700 / 3000 / 3300 W - Image 2

Residential PV Inverters SOFAR 1100~3300TL-G3 Single-Phase Solar Inverter with Single MPPT 1100 / 1600 / 2200 / 2700 / 3000 / 3300 W

Compare

Ambient temperature range: -30ºC~+60ºC
Self-consumption at night: <1W
Topology: Transformerless
Degree of protection: IP65
Allowable relative humidity range: 0~-100%
Max. operating altitude: 2000m
Cooling: Natural

$487.00

Compare

Features of the Residential PV Inverters

  • Max. efficiency: 97.7%
  • Lightweight, quick and easy to install
  • IP65 design for outdoor
  • RS485
  • Built-in zero export function
  • 140% DC overload
  • Optional: WiFi/Ethernet

Datasheet 1100TL-G3 1600TL-G3 2200TL-G3 2700TL-G3 3000TL-G3 3300TL-G3
Input (DC)
Max. input voltage 500V 500V 500V 550V 550V 550V
Rated input voltage 360V 360V 360V 360V 360V 360V
Start-up voltage 70V 70V 70V 70V 70V 70V
MPPT operating voltage range 50-500V 50-500V 50-500V 50-550V 50-550V 50-550V
Number of MPPTs 1 1 1 1 1 1
Number of DC inputs 1 1 1 1 1 1
Max. input MPPT current 12A 12A 12A 12A 12A 12A
Max. input short circuit current 15A 15A 15A 15A 15A 15A
Output (AC)
Rated output power 1100W 1600W 2200W 2700W 3000W 3300W
Max. apparent power 1100VA 1600VA 2200VA 2700VA 3000VA 3300VA
Max. output current 5.3A 7.7A 10.6A 13A 14.5A 16A
Rated output voltage L/N/PE, 230Vac L/N/PE, 230Vac L/N/PE, 230Vac L/N/PE, 230Vac L/N/PE, 230Vac L/N/PE, 230Vac
Output voltage range 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac
Rated output frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Output frequency range 45Hz-55Hz/55Hz-65Hz
Active power adjustable range 0~100% 0~100% 0~100% 0~100% 0~100% 0~100%
THDi <3% <3% <3% <3% <3% <3%
Power factor 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8)
Efficiency
Max. Efficiency 97.5% 97.5% 97.5% 97.7% 97.7% 97.7%
European efficiency 96.9% 96.9% 96.9% 97.2% 97.2% 97.2%
Protection
DC reverse polarity protection Yes Yes Yes Yes Yes Yes
Anti-islanding protection Yes Yes Yes Yes Yes Yes
Leakage current protection Yes Yes Yes Yes Yes Yes
Ground fault monitoring Yes Yes Yes Yes Yes Yes
PV-array string fault monitoring Yes Yes Yes Yes Yes Yes
DC switch Yes Yes Yes Yes Yes Yes
SPD PV: type III, AC: type III
