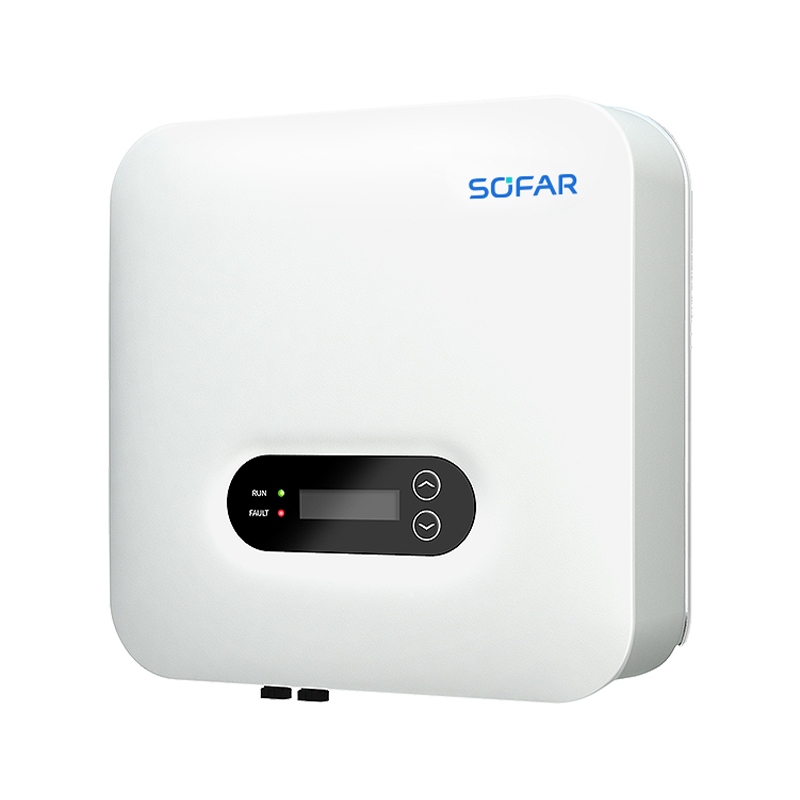

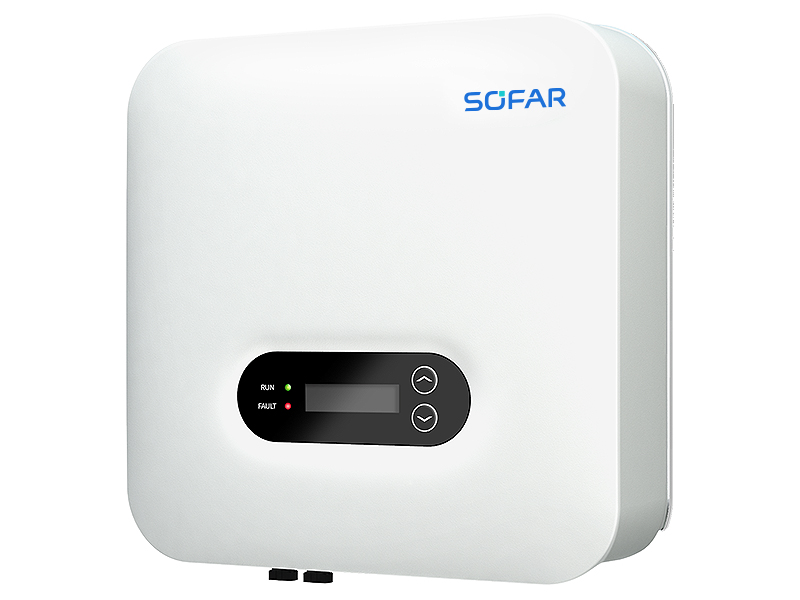

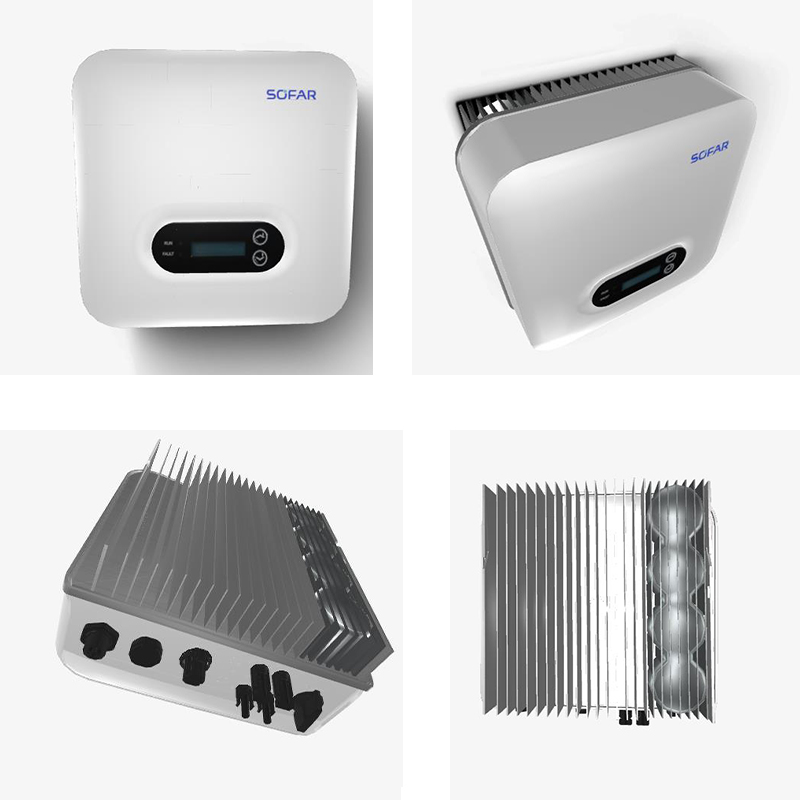

SOFAR Solar Inverter 3K~6KTLM-G3 Single-phase Dual MPPT Residential PV Inverters 3KW 3.6KW 4KW 4.6KW 5KW 6KW Inverter

Add to wishlist
Compare
  • Single-phase
  • Dual MPPT
  • Max. input MPPT current:15A
  • Max. efficiency:98.4%
  • Low start-up voltage, compatible with bifacial modules
  • Compact design, lightweight
  • Natural cooling, no fans, low noise
  • Built-in zero export function
  • RS485/Bluetooth, Optional: WiFi/Ethernet

$535.00

Compare

General Data of the SOFAR Solar Inverter 3K~6KTLM-G3

  1. Ambient temperature range: -30ºC ～ +60ºC
  2. Self-consumption at night: <1W
  3. Topology: Transformerless
  4. Degree of protection: IP65
  5. Allowable relative humidity range: 0～100%
  6. Max. operating altitude: 4000m
  7. Cooling: Natural
  8. Dimension(W×H×D): 349×344×164mm
  9. Display: LCD & Bluetooth +APP
  10. Communication: RS485WiFi
  11. Standard: IEC/EN 61000-6-2/3, IEC/EN 61000-3-2/3, IEC/EN 61000-3-11/12,IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC/EN 62109-1/2VDE-AR-N 4105, VDE V 0126-1-1, CEI0-21, C10/11, UNE 217002: 2020, G98/G99, EN 50549-1, ANRE 208

Datasheet 3KTLM-G3 3.6KTLM-G3 4KTLM-G3 4.6KTLM-G3 5KTLM-G3 6KTLM-G3
lnput (DC)
Max. input voltage 600V 600V 600V 600V 600V 600V
Rated input voltage 380V 380V 380V 380V 380V 380V
Start-up voltage 90V 90V 90V 90V 90V 90V
MPPT operating voltage range 80V-550V 80V-550V 80V-550V 80V-550V 80V-550V 80V-550V
Number of MPPTs 2 2 2 2 2 2
Number of DC inputs 1 for each MPPT 1 for each MPPT 1 for each MPPT 1 for each MPPT 1 for each MPPT 1 for each MPPT
Max. input MPPT current 15A/15A 15A/15A 15A/15A 15A/15A 15A/15A 15A/15A
Max. input short circuit current 22.5A/ 22.5A 22.5A/ 22.5A 22.5A/ 22.5A 22.5A/ 22.5A 22.5A/ 22.5A 22.5A/ 22.5A
Output (AC)
Rated output power 3000W 3600W 4000W 4600W 5000W 6000W
Max. apparent power 3300VA 3680VA 4000VA 4600VA 5000VA 6000VA
Max. output current 15A 16A 20A 23A 25A 29A
Rated output voltage L/N/PE 230Vac L/N/PE 230Vac L/N/PE 230Vac L/N/PE 230Vac L/N/PE 230Vac L/N/PE 230Vac
Output voltage range 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac
Rated output frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Output frequency range 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz
Active power adjustable range 0~100% 0~100% 0~100% 0~100% 0~100% 0~100%
THDi <3% <3% <3% <3% <3% <3%
Power factor 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8)
Efficiency
Max. efficiency 98.2 98.2 98.2 98.4 98.4 98.4
European efficiency 97.3 97.3 97.3 97.5 97.5 97.5
Protection
Dc reverse polarity protection Yes Yes Yes Yes Yes Yes
Anti-islanding protection Yes Yes Yes Yes Yes Yes
Leakage current protection Yes Yes Yes Yes Yes Yes
Ground fault monitoring Yes Yes Yes Yes Yes Yes
PV-array string fault monitoring Yes Yes Yes Yes Yes Yes
DC switch Yes Yes Yes Yes Yes Yes
SPD PV: type III, AC: type III
