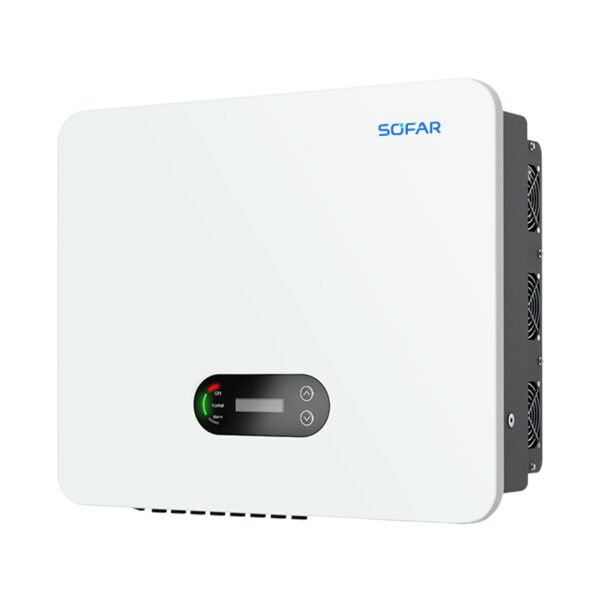

DC/AC Inverter SOFAR 25K~50KTLX-G3 Three-phase Three To Four Mppts for EU Home Energy System C&I PV Inverter Solar Inverter

Add to wishlist
Compare

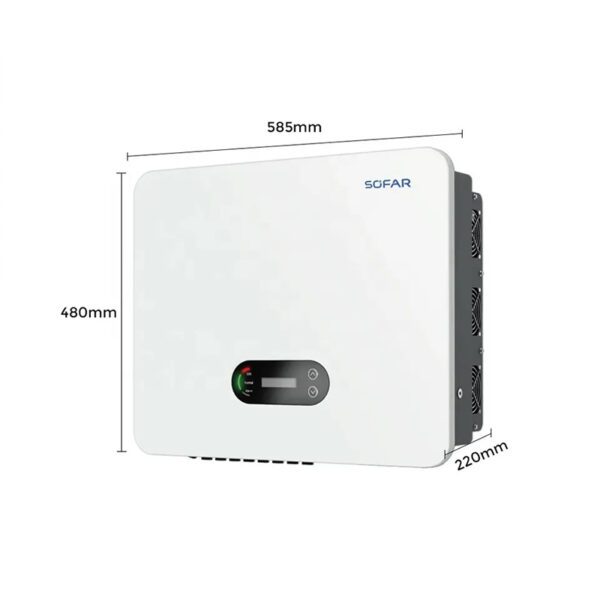

  • Dimension (W×H×D): 585×480×220mm
  • Ambient temperature range: -30℃~+60℃
  • Self-consumption at night: <3W
  • Topology: Transformerless
  • Degree of protection: IP65
  • Allowable relative humidity range: 0~100%
  • Max. operating altitude: 4000m
  • Cooling: Smart air cooling

$1,507.00

Compare

Product advantages of the Inverter SOFAR 25K~50KTLX-G3

  • Max. efficiency up to 98.80%.
  • Up to 4 MPPTs with DC overload capability (up to 150%).
  • Type II SPD for both DC and AC side.
  • Prolonged AC overload capability (110%).
  • Low start-up voltage, wide MPPT voltage range.
  • Compatible with 500 W+ modules.
  • I-V curve scanning function.
  • Number of DC inputs: 6/8
  • Max. input MPPT current: 40A

Datasheet 25KTLX- G3 30KTLX- G3 33KTLX- G3 36KTLX- G3 40KTLX- G3 45KTLX- G3 50KTLX- G3
Input (Dc)
Max. input voltage 1100V 1100V 1100V 1100V 1100V 1100V 1100V
Rated input voltage 620V 620V 620V 620V 620V 620V 620V
Start-up voltage 200V 200V 200V 200V 200V 200V 200V
MPPT operating voltage range 180V～1000V 180V～1000V 180V～1000V 180V～1000V 180V～1000V 180V～1000V 180V～1000V
Number of MPPTS 3 3 3 3 4 4 4
Number of DC inputs 2 for each MPPT 2 for each MPPT 2 for each MPPT 2 for each MPPT 2 for each MPPT 2 for each MPPT 2 for each MPPT
Max. input MPPT current 3*40A 3*40A 3*40A 3*40A 4*40A 4*40A 4*40A
Max. input short circuit current 3*50A 3*50A 3*50A 3*50A 4*50A 4*50A 4*50A
Output (AC)
Rated output power 25000W 30000W 33000W 36000W 40000W 45000W 50000W
Max.apparent power 28000VA 34000VA 37000VA 40000VA 44000VA 50000VA 55000VA
Max.output current 42.4A 51.5A 56A 60.6A 66.7A 75.8A 83.3A
Rated output voltage 3/N/PE, 230/ 400Vac 3/N/PE, 230/ 400Vac 3/N/PE, 230/ 400Vac 3/N/PE, 230/ 400Vac 3/N/PE, 230/ 400Vac 3/N/PE, 230/ 400Vac 3/N/PE, 230/ 400Vac
Output voltage range 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac 310Vac- 480Vac
Rated output frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Output frequency range 45Hz-55Hz/55Hz-65Hz
Active power adjustable range 0~100% 0~100% 0~100% 0~100% 0~100% 0~100% 0~100%
THDi <3% <3% <3% <3% <3% <3% <3%
Power factor 1 (adjustable +/-0.8)
Efficiency
Max. Efficiency 98.6% 98.6% 98.6% 98.6% 98.8% 98.8% 98.8%
European efficiency 98.2% 98.2% 98.2% 98.2% 98.2% 98.2% 98.2%
Protection
DC reverse polarity protection Yes Yes Yes Yes Yes Yes Yes
Anti-islanding protection Yes Yes Yes Yes Yes Yes Yes
Leakage current protection Yes Yes Yes Yes Yes Yes Yes
Ground fault monitoring Yes Yes Yes Yes Yes Yes Yes
PV-array string fault monitoring Yes Yes Yes Yes Yes Yes Yes
DC switch Yes Yes Yes Yes Yes Yes Yes
SPD PV: type II, AC: type II
