Metrology

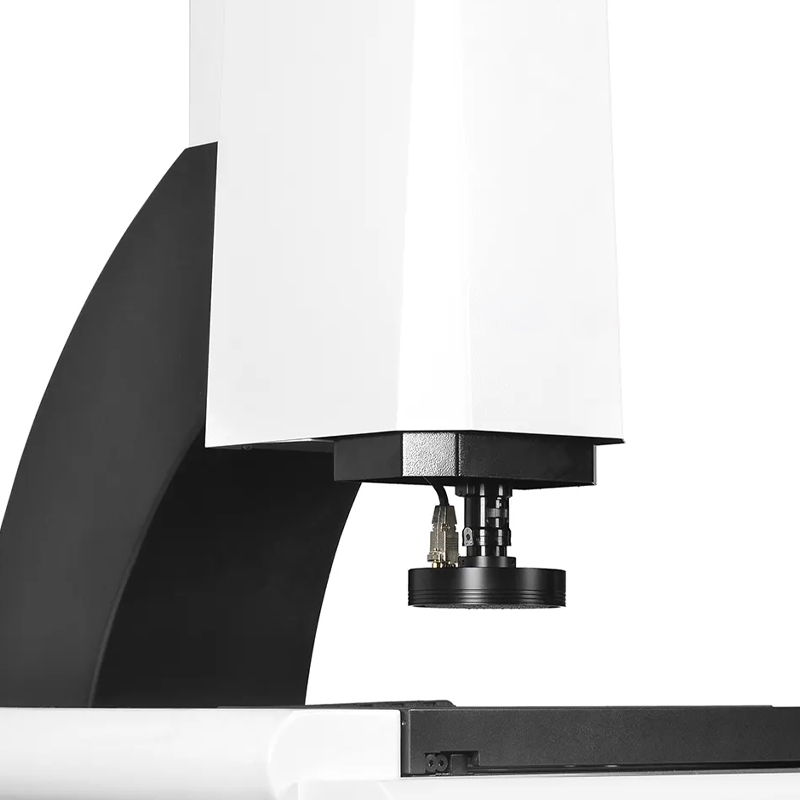

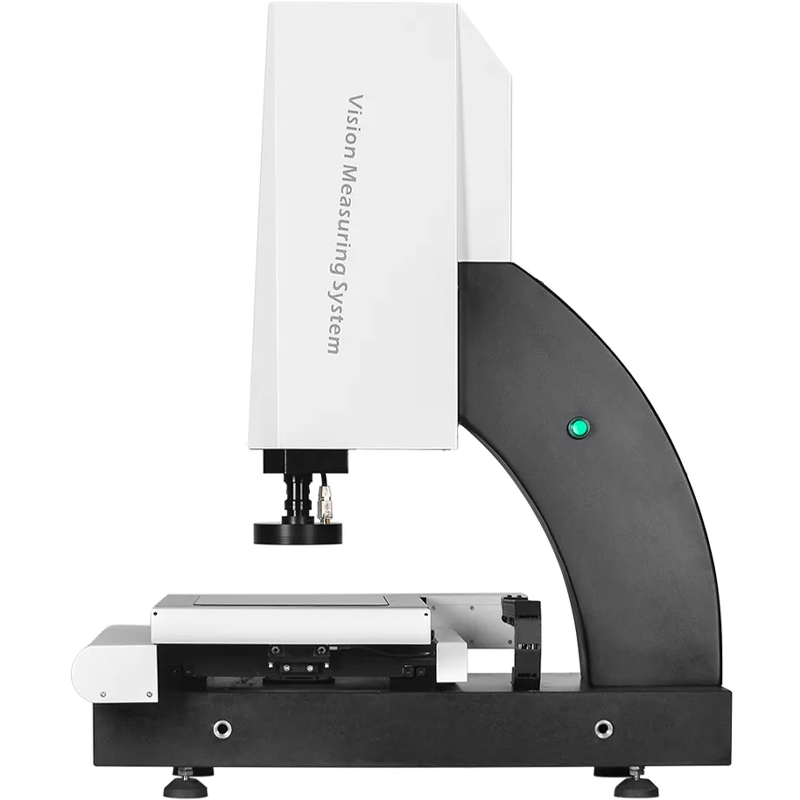

CNC Optical Vision Measurement Machine VMM System
- The series with multiple automatic measuring function, and take the economy into account.
- With reasonable & advanced design concept, the fuselage is more compact and fashionable.
- Customized to meet the needs of different markets. Machine configuration is more flexible and changeable.
- Higher accuracy and more stable repeatability.
- Hardware: Powerful optical and imaging system support
- Software: Powerful software function support behind.
$18,150.00
CompareTechnical Parameters of the Vision Measurement Machine
| Model | VMM300 | VMM400 |
| Dimension(L×W×H) | 810mm×610mm×1055mm | 960mm×710mm×1080mm |
| Measuring Range(X×Y×Z) | 300mm×200mm×200mm | 400mm×300mm×200mm |
| Accuracy | 3+L/200um | 3+L/200um |
| Repeatability | 3um | 3um |
| Camera | Industrial grade analog CCD camera and SV2000E video card | |
| Lens | Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional) | |
| Magnification | 18-195X (Different combination of camera and lens leads to different magnification range | |
| FOV | 8.1-1.3mm (Different combination of camera and lens leads to different FOV range) | |
| Working Distance | 90mm | |
| Linear scales resolution | 0.0005mm | |
| Illumination | Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light | |
Features
- The series with multiple automatic measuring function, and take the economy into account.
- With reasonable & advanced design concept, the fuselage is more compact and fashionable.
- Customized to meet the needs of different markets. Machine configuration is more flexible and changeable.
- Higher accuracy and more stable repeatability.
- Hardware: Powerful optical and imaging system support
- Software: Powerful software function support behind.
