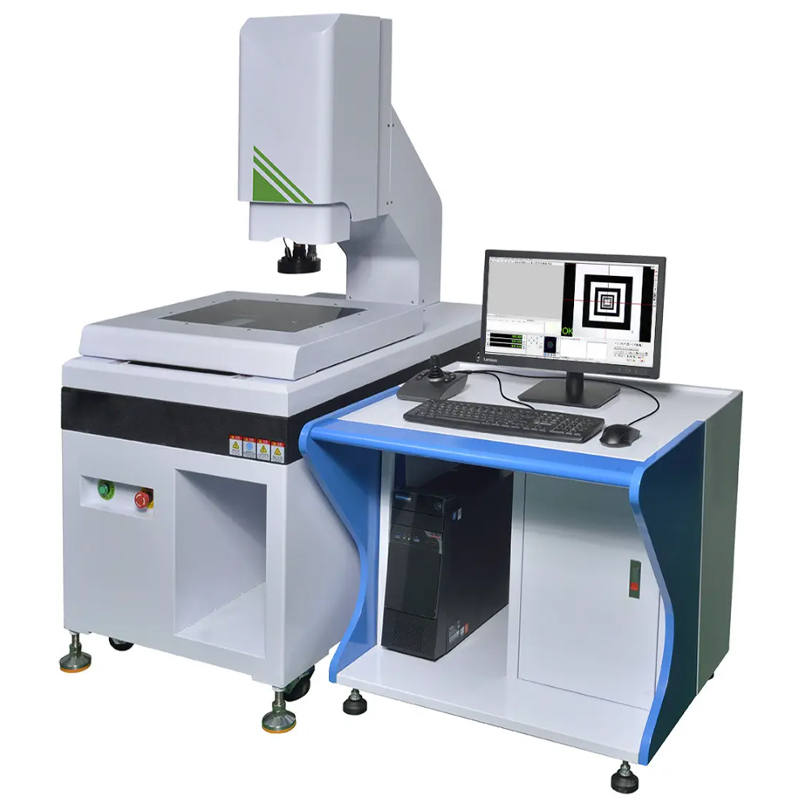

Model of the CNC Vision Measuring System
Parameter and Model | AMH650 | AMH860 | AMH1210 | AMH1512 | |
Workbench | Glass table size | 808mm×568mm | 1008mm×668mm | 1300mm×1048mm | 1600mm×1248mm |
Load-bearing weight | 30kg | 30kg | 30kg | 30kg | |
travel | X axis | 500mm | 600mm | 1000mm | 1200mm |
Y axis | 600mm | 800mm | 1200mm | 1500mm | |
Zaxis | 200mm | 200mm | 200mm | 200mm | |
Image and measurement system | Display resolution | 1/0.5(Optional) | |||
Instrument precision | (4+L/200)um | ||||
Imaging system(CCD) | TEO HD color | ||||
Zoom objective(X) | High Precision Zoom Objective 0.7~4.5X | ||||
Total video magnification(X) | 30~200X | ||||
Light source | LED programmable partiton light source(Coaxial light source optional) | ||||
Working distance | 96mm | ||||
Outline dimension | 1500mm×1140mm×178mm | 1720mm×1240mm×1780mm | 2090mm×1630mm×1800mm | 2390mm×1830mm×1850mm | |
Weight | 1600kg | 1800 kg | 3000 kg | 4500kg | |
Power supply | 220V AC 50HZ, 110V AC 60HZ |
Features
- High-precision granite gantry structure, difficult deformation, high stability, high-end good looking.
- High-precision grating system, with extremely high stability.
- High precision linear guide rail and high precision ball-screw transmission.

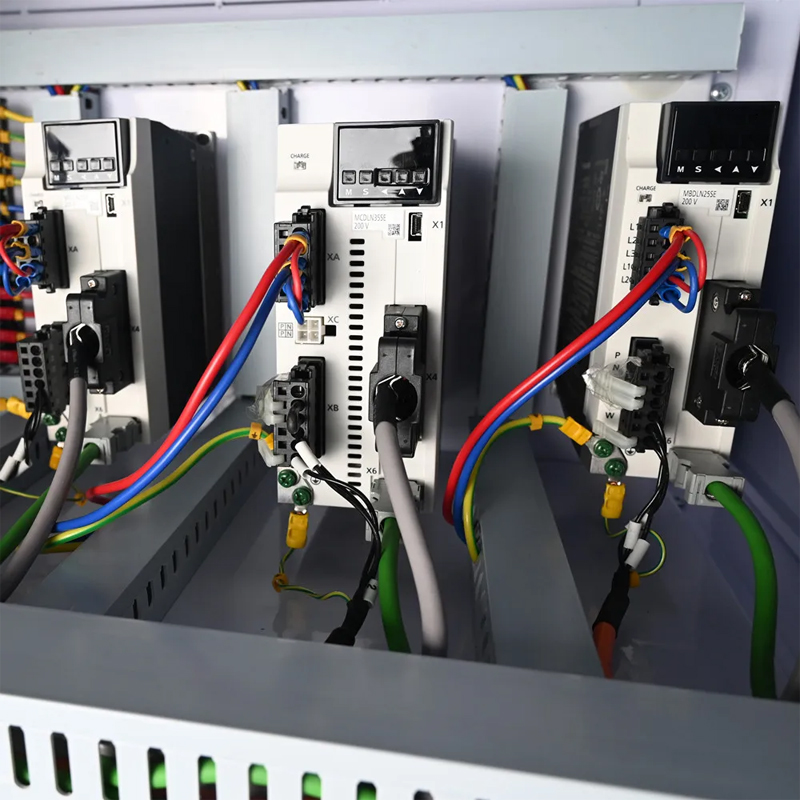

- Imported Panasonic servo system, high-precision, high-efficiency, high-stability.
- Zoning adjustment of LED light source, available for multi directional projection.
- Manipulator control CNC software, Auto focusing, Auto zoom switching, Auto edge tracing, Auto light Sensing, Auto measuring, Assurance measuring high efficiency.
- Leading edge specialized proprietary measuring software.

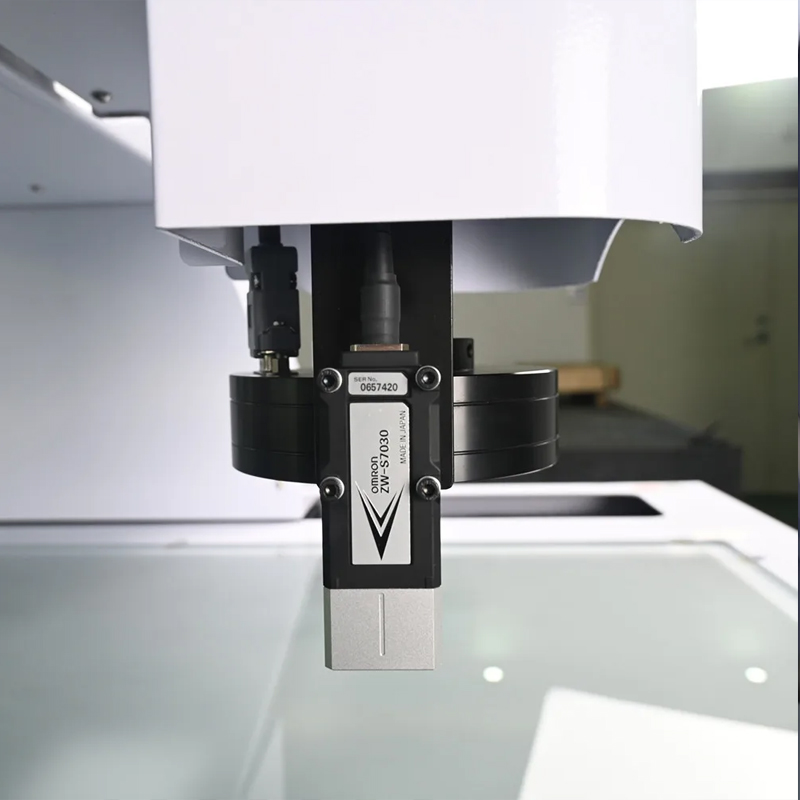

- Configured with high precision laser tester, realizable Auto programming Co-axial complex measuring image /probe/ laser.
