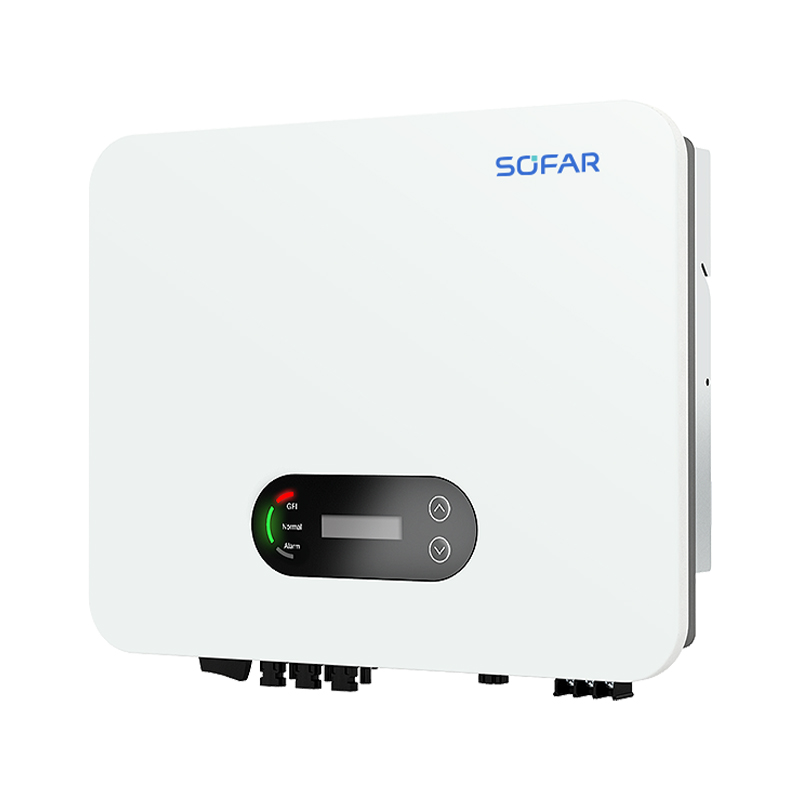

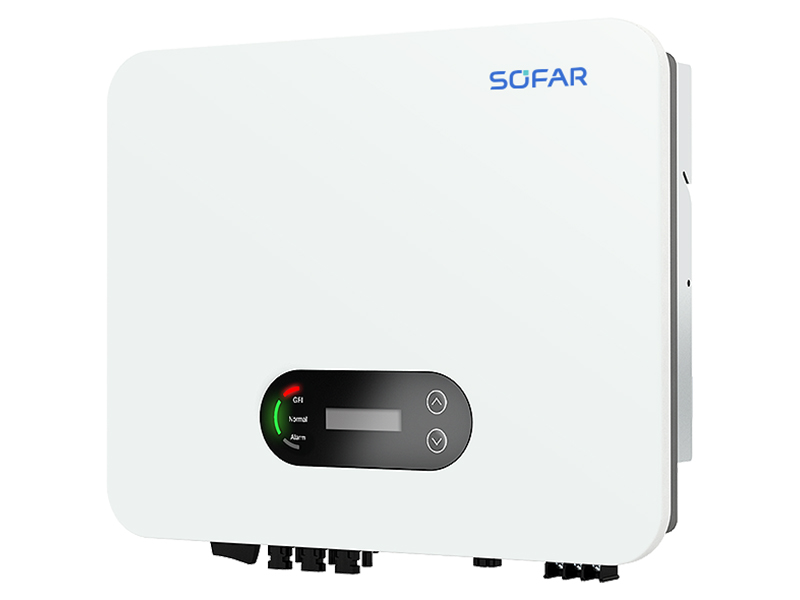

PV Inverter SOFAR 7K~10.5KTLM-G3 Single-phase 3 MPPT 7 kW 7.7 kW 8 kW 9 kW 10 kW 10.5 kW Solar Inverter Home Energy System

Add to wishlist
Compare
  • Dimension(W×H×D) : 468×380×187 mm
  • Ambient temperature range: 30℃~+60℃
  • Self-consumption at night: <1W
  • Topology: Transformerless
  • Degree of protection: IP65
  • Allowable relative humidity range: 0~100%
  • Max. operating altitude: 4000m
  • Cooling: Natural

$1,043.00

Compare

Product advantages of the PV Inverter SOFAR 7K~10.5KTLM-G3

  • Single-phase
  • 3 MPPT
  • Max. input MPPT current: 20A
  • Max. efficiency up to 98.1%
  • Low start-up voltage, wide MPPT voltage range
  • Three MPPTs with 150% DC overload
  • Compatible with 500 W+ modules
  • I-V curve scanning function
  • Natural cooling, no fans, low noise
  • Prolonged AC overload compatibility (110%)



Datasheet 7KTLM-G3 7.7KTLM-G3 8KTLM-G3 9KTLM-G3 10KTLM-G3 10.5KTLM-G3
Input (Dc)
Max. input voltage 600V 600V 600V 600V 600V 600V
Rated input voltage 360V 360V 360V 360V 360V 360V
Start-up voltage 90V 90V 90V 90V 90V 90V
MPPT operating voltage range 80V-550V 80V-550V 80V-550V 80V-550V 80V-550V 80V-550V
Number of MPPTS 3 3 3 3 3 3
Number of DC inputs 3 3 3 3 3 3
Max. input MPPT current 20A/ 16A/ 16A 20A/ 16A/ 16A 20A/ 16A/ 16A 20A/ 16A/ 16A 20A/ 16A/ 16A 20A/ 16A/ 16A
Max. input short circuit current 30A/ 25A/ 25A 30A/ 25A/ 25A 30A/ 25A/ 25A 30A/ 25A/ 25A 30A/ 25A/ 25A 30A/ 25A/ 25A
Output (AC)
Rated output power 7000W 7700W 8000W 9000W 10000W 10500W
Max.apparent power 7700VA 7700VA 8800VA 9900VA 10000VA 10500VA
Max. output current 35A 35A 40A 45A 46A 46A
Rated output voltage L/N/PE, 230Vac L/N/PE, 230Vac L/N/PE, 230Vac L/N/PE, 230Vac L/N/PE, 230Vac L/N/PE, 230Vac
Output voltage range 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac 180Vac- 276Vac
Rated output frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Output frequency range 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz 45Hz-55Hz/ 55Hz-65Hz
Active power adjustable range 0~100% 0~100% 0~100% 0~100% 0~100% 0~100%
THDi <3% <3% <3% <3% <3% <3%
Power factor 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8) 1 (adjustable +/-0.8)
Efficiency
Max. Efficiency 98.1% 98.1% 98.1% 98.1% 98.1% 98.1%
European efficiency 97.3% 97.3% 97.3% 97.3% 97.3% 97.3%
Protection
DC reverse polarity protection Yes Yes Yes Yes Yes Yes
Anti-islanding protection Yes Yes Yes Yes Yes Yes
Leakage current protection Yes Yes Yes Yes Yes Yes
Ground fault monitoring Yes Yes Yes Yes Yes Yes
PV-array string fault monitoring Yes Yes Yes Yes Yes Yes
DC switch Yes Yes Yes Yes Yes Yes
SPD PV: type II, AC: type III PV: type II, AC: type III PV: type II, AC: type III PV: type II, AC: type III PV: type II, AC: type III PV: type II, AC: type III
Weight 17.5kg 17.5kg 17.5kg 18.5kg 18.5kg 18.5kg
