SOFAR Solar Inverter

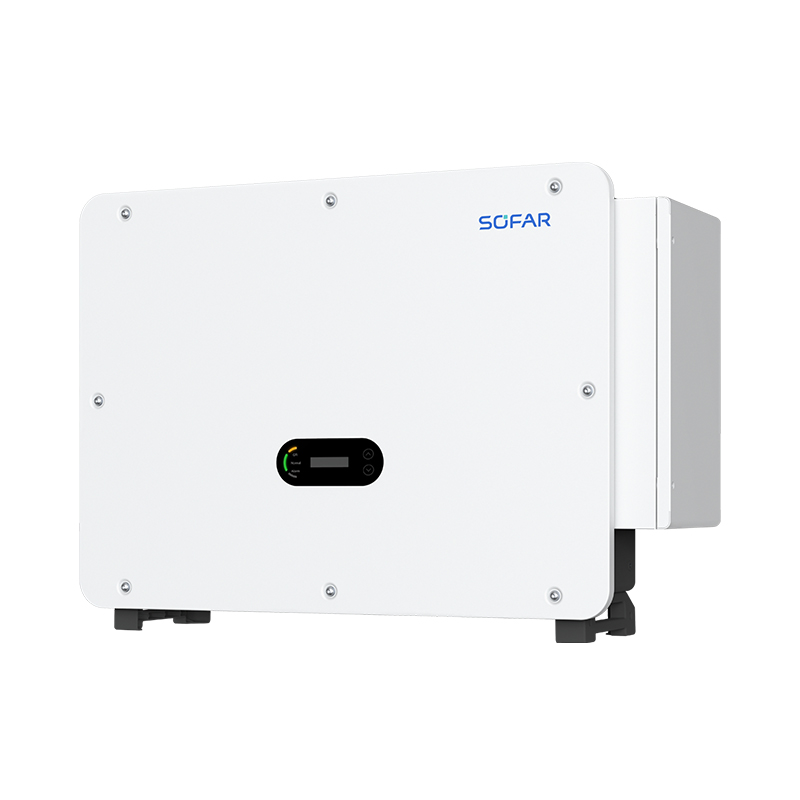

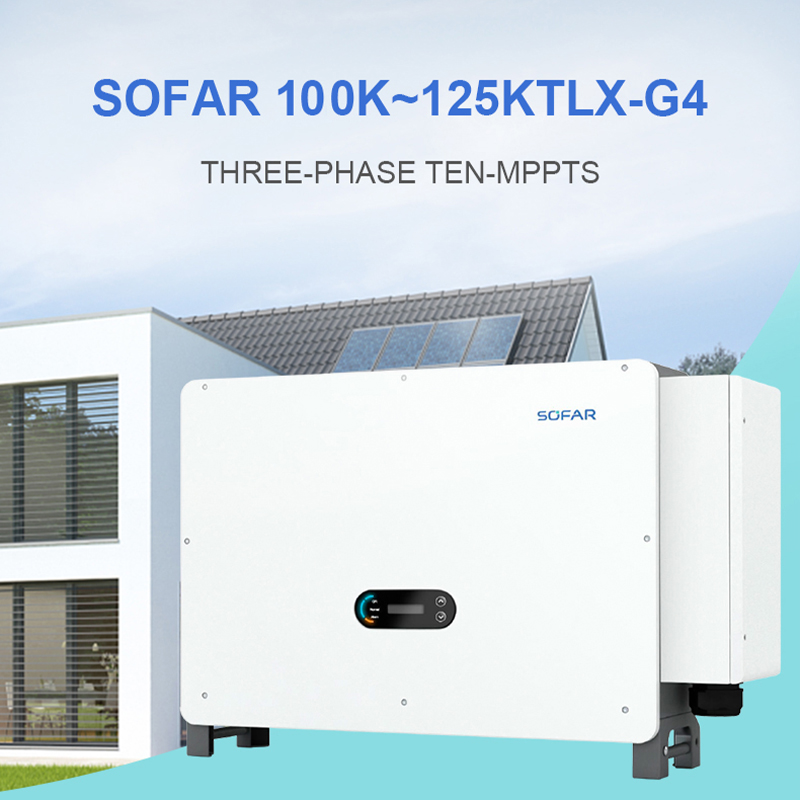

Sofar Solar Inverter SOFAR 100K~125KTLX-G4 Three-Phase Ten Mppts Ess Ready PV Inverter Solar Battery Sofar Lithium Inverter
- Three-phase
- 10 MPPTS
- ESS READY
- Max. efficiency up to 98.6%
- IP66 & C5 design for outdoor

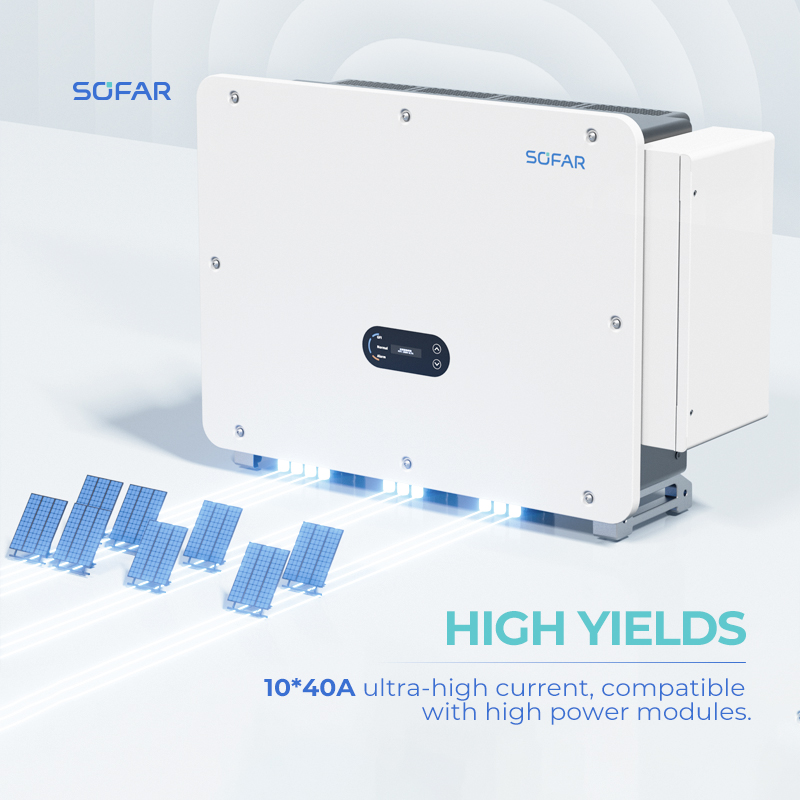

- Maximum 10 MPPTs, 40A per MPPT
- Type I + II SPD for DC
- I-V curve scanning function
- Battery connector for ESS, DC coupled
$4,522.00
CompareGeneral Data of the Solar Inverter SOFAR 100K~125KTLX-G4
- Dimension(W*H×D): 970×695×325mm
- Weight: 75kg
- Ambient temperature range: -30°C～+60°C
- Topology: Transformerless
- Degree of protection: IP66
- Allowable relative humidity range: 0~100%
- Max.operating altitude: 4000m(>3000m derating)
- Cooling: Smart air cooling
- Display: LCD & Bluetooth +APP
- Communication: RS485 / WiFi
- Standard: EN/IEC 62109-1/2, EN/IEC 61000-6-2/-4, IEC 61000-3-4/-5, EN 50530, EN 50549, IEC62116, IEC 61727, IEC 61683,IEC 60068-2-1/2/14/30, VDE V 0126-1-1, UTE C15-712-1, VDE-AR-N 4105/4110, CEI 0-21/16, NTS 631, UNE 217001, UNE 217002
| Model | SOFAR 100KTLX-G4 | SOFAR 110KTLX-G4 | SOFAR 125KTLX-G4 |
| Input (DC) | |||
| Max. input voltage | 1100V | 1100V | 1100V |
| Rated input voltage | 625V | 625V | 625V |
| Start-up voltage | 200V | 200V | 200V |
| MPPT operating voltage range | 180V～1000V | 180V～1000V | 180V～1000V |
| Number of MPP trackers | 10 | 10 | 10 |
| Number for DC inputs | 20 | 20 | 20 |
| Max. input MPPT current | 10*40A | 10*40A | 10*40A |
| Max. input short circuit current | 10*50A | 10*50A | 10*50A |
| AC Output(On Grid) | |||
| Rated output power | 100kW | 100kW | 110kW |
| Max. apparent power | 100kVA@45°C / 90kVA@50°C | 110kVA@45°C / 100kVA@50°C | 125kVA@45°C / 110kVA@50°C |
| Max. output current | 152A@380V / 145A@400V / 139.2A@415V | 167.2A@380V / 159.5A@400V / 153.1A@415V | 190A@380V / 181.2A@400V / 174A@415V |
| Rated output voltage | 3/N/PE，380V / 400V / 415V | 3/N/PE，380V / 400V / 415V | 3/N/PE，380V / 400V / 415V |
| Output voltage range | 310~480V | 310~480V | 310~480V |
| Rated output frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Output frequency range | 45~55Hz/55~65Hz | 45~55Hz/55~65Hz | 45~55Hz/55~65Hz |
| Active power adjustable range | 0~100% | 0~100% | 0~100% |
| THDi | <1%(@100%P) | <1%(@100%P) | <1%(@100%P) |
| Power factor | 1 (+/-0.8 adjustable) | 1 (+/-0.8 adjustable) | 1 (+/-0.8 adjustable) |
| ESS Parameter | |||
| DC voltage range | 200~1100V | 200~1100V | 200~1100V |
| Max. charge / discharge current | 100A / 100A | 100A / 100A | 100A / 100A |
| Max. power(charge / discharge) | 62.5kW / 62.5kW | 62.5kW / 62.5kW | 62.5kW / 62.5kW |
| BMS communication | CAN | CAN | CAN |
| AC Output(Off Grid) | |||
| Rated output power | 100kW | 100kW | 110kW |
| Max. apparent power | 100kVA@45°C / 90kVA@50°C | 110kVA@45°C / 100kVA@50°C | 125kVA@45°C / 110kVA@50°C |
| Max. output current | 152A@380V / 145A@400V / 139.2A@415V | 167.2A@380V / 159.5A@400V / 153.1A@415V | 190A@380V / 181.2A@400V / 174A@415V |
| Rated output voltage | 3/N/PE，380V / 400V / 415V | 3/N/PE，380V / 400V / 415V | 3/N/PE，380V / 400V / 415V |
| Rated output frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| THDV | <3%(Linear Load) | <3%(Linear Load) | <3%(Linear Load) |
| Efficiency (PV) | |||
| Max. efficiency | 98.60% | 98.60% | 98.60% |
| European efficiency | 98.30% | 98.30% | 98.30% |
