JA Solar Panel Mono-16BB Module JAM72D40 555W-580W/MB Series n-type Bifacial Double Glass High Efficiency Mono Module
Introduction
Power by the lastest SMBB n-type solar cell, half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.
- 1% 1st-year Degradation.
- 0.4%Annual Degradation over 30 years.
- Higher power generation better LCOE.
- n-type with very Lower LID.
- Better weak illumination response.
- Better Temperature Coefficient.
Price range: $206.00 through $216.00
CompareModel of JA Solar Panel: 555W 560W 565W 570W 575W 580W
Product line of JA Solar Panel：
1.Cells Tabbing and Stringing
2.Lay up
3.Lamination
4. Edge Trimming
5.Frame Assembly
6.Junction Box Potting
7.Curing
8. Cleaning
9.Final Power Determination
| Cell | Mono-16BB |
| Weight | 31.8kg |
| Dimensions | 2278±2mm×1134±2mm×30±1mm |
| Cable Cross Section Size | 4mm²(IEC),12 AWG(UL) |
| No.of cells | 144(6×24) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10-351 / MC4-EVO2A |
| Cable Length (Including Connector) | Portrait: 200mm(+)/300mm(-);800mm(+)/800mm(-)(Leapfrog) ; Landscape: 1300mm(+)/1300mm(-) |
| Front Glass/Back Glass | 2.0mm/2.0mm |
| Packaging Configuration | 36pcs/Pallet, 720pcs/40HQ Container |
| Max. Power | 555W, 560W, 565W, 570W, 575W, 580W |
|---|
Related products
-
Trinasolar Solar Panel
Trinasolar NEG black frame N type i-TOPCon Dual Glass NEG9R.28 430w Trina Vertex S 435 W Solar Panel 415w
Trinasolar Solar PanelTrinasolar NEG black frame N type i-TOPCon Dual Glass NEG9R.28 430w Trina Vertex S 435 W Solar Panel 415w
Cells have a complete IV curve
Export-quality monocrystalline silicon cell welding process is complete, high efficiency and long life
Tempered glass withstands high impact
High-transmittance coating, ultra-white iron tempered glass, effective against
Severe weather such as hail, rain and snow
Long life, will not oxidize for many years
Hole design, easy installation, corrosion resistance, service life of several years
Using PPF technology, effective anti-aging
The back of the board is waterproof and sealed with an anti-aging imported backboard to ensure normal use in rainy and snowy weather
IP67 protection level, anti-oxidation and lightning protection
The wires have been soldered, eliminating the need for installationSKU: n/a -
JA Solar Panel

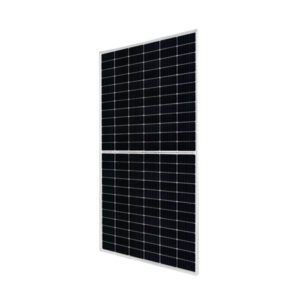

JA Solar JA Solar Panel 525W-550W JAM72D30 Monocrystalline Photovoltaic Panel Solar Photovoltaic Panel Power Generation Components
