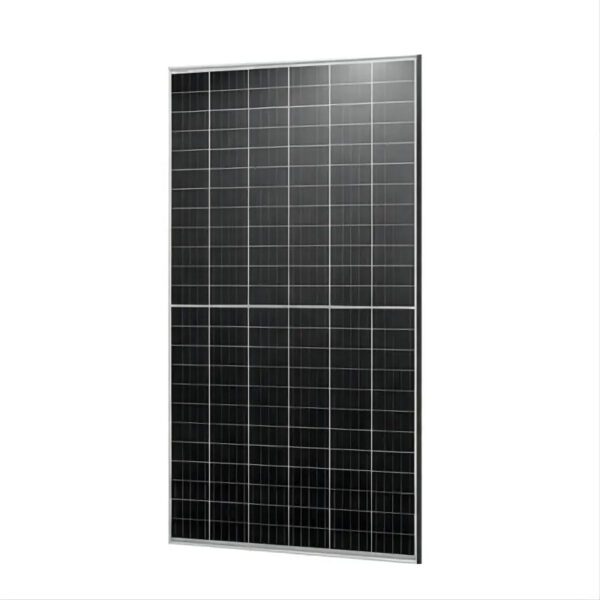

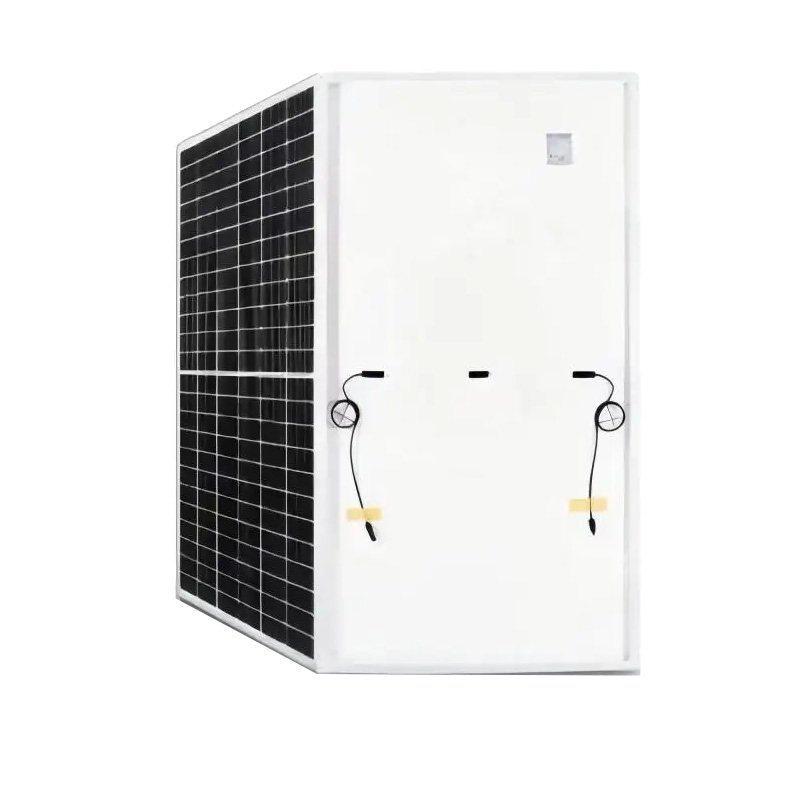

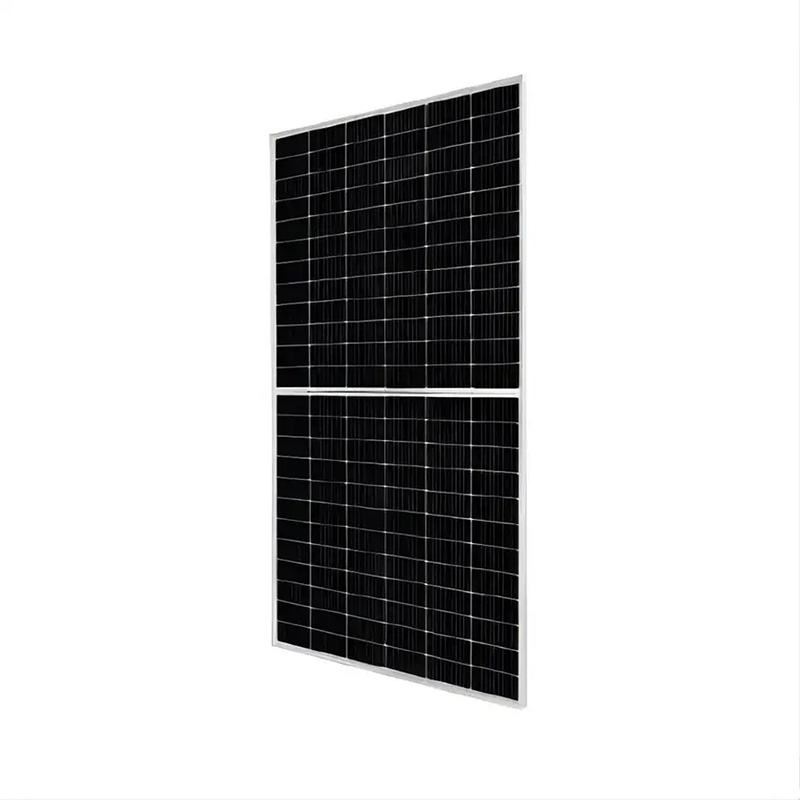

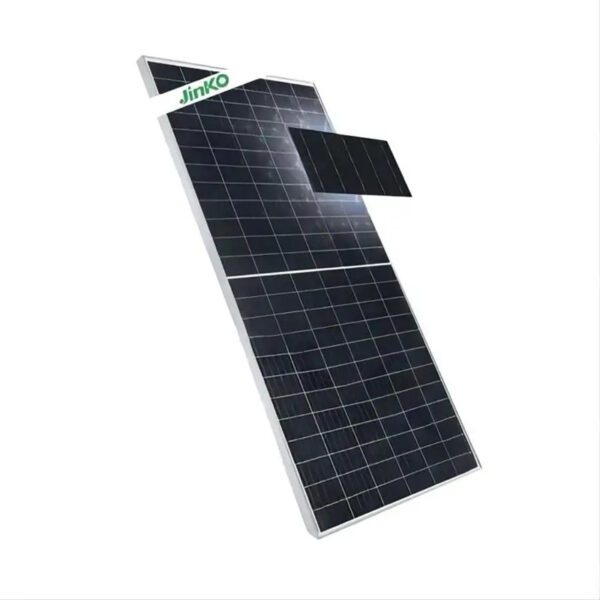

Jinko Mono Perc Cell Solar Panel 530W 540W 550W For Home Use Photovoltaic Panel
Specification
Ultra-high Power for the Lowest LCOE and Highest IRR
Ultra-high Efficiency of 21.4%
Reliable Tiling Ribbon Technology Eliminating the lnter-cell Gap
Multi Busbar Technology Decreasing the Resistance Loss
$3,500.00
Compare
|
Solar Panel Model Type
|
JKM530M-72RL4-V
|
JKM535M-72HL4-V
|
JKM540M-72RL4-V
|
JKM545M-72HL4-V
|
JKM550M-72HL3-V
|
|
Max. Power (Pmax/W)
|
530Wp
|
535Wp
|
540Wp
|
545Wp
|
550Wp
|
|
Voltage at Max. Power (Vmp/V)
|
40.56V
|
40.63V
|
40.70V
|
40.80V
|
40.90V
|
|
Current at Max. Power (Imp/A)
|
13.07A
|
13.17A
|
13.27A
|
13.36A
|
13.45A
|
|
Open Circuit Voltage (Voc/V)
|
49.26V
|
49.34V
|
49.42V
|
49.52V
|
49.62V
|
|
Short Circuit Current (Isc/A)
|
13.71A
|
13.79A
|
13.85A
|
13.94A
|
14.03A
|
|
Module Efficiency
|
20.55%
|
20.75%
|
20.94%
|
21.13%
|
21.33%
|
Solar Panel Specification
Ultra-high Power for the Lowest LCOE and Highest IRR
Ultra-high Efficiency of 21.4%
Reliable Tiling Ribbon Technology Eliminating the lnter-cell Gap
Multi Busbar Technology Decreasing the Resistance Loss
