450L Yeast Propagation System for Mobile Brewery Operations

Product Introduction: 450L Yeast Propagation System

The mobile yeast propagation station is designed to revitalize dry yeast and prepare active yeast cultures for beverage fermentation. With a 450L tank, it integrates temperature regulation, yeast circulation, oxygen supply, and automatic nutrient management into one compact processing unit.
During operation, the tank heats the water to a preset starting temperature before yeast is introduced. A membrane circulation pump gently moves the mixture to disperse yeast clumps and maintain uniform conditions. Oxygen is supplied during circulation, while measured additions of wort or must provide nutrients for yeast development. Controlled cooling helps bring the mixture toward the required target temperature without sudden temperature changes.

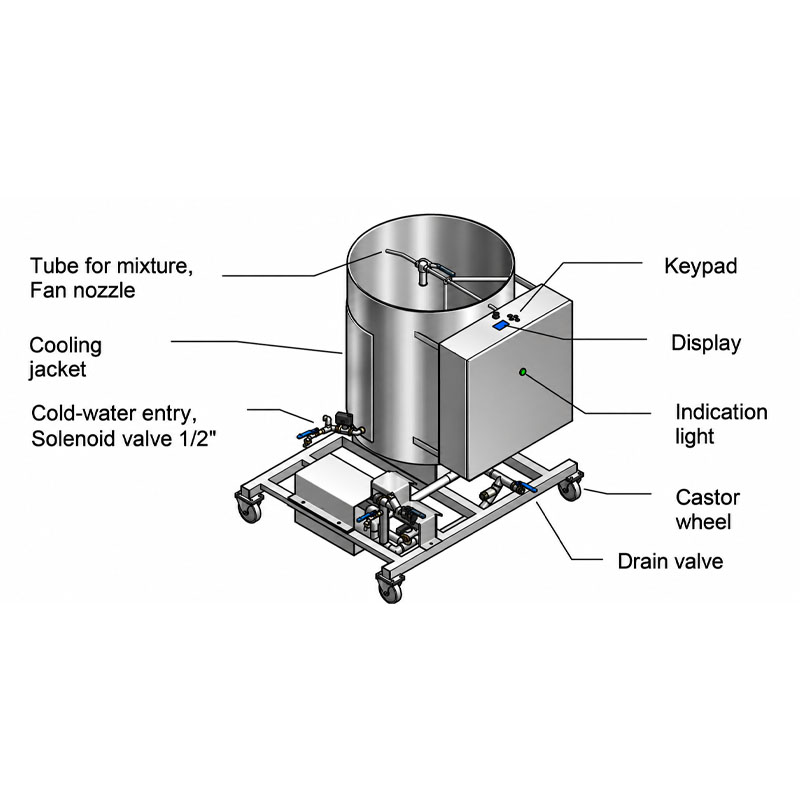

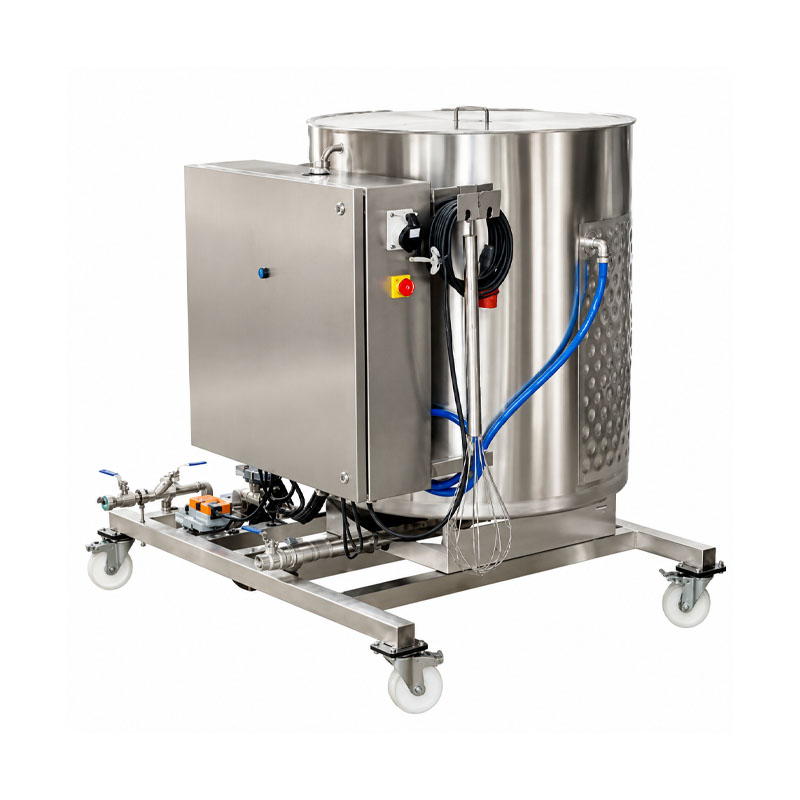

A programmable controller allows operators to adjust starting and target temperatures, yeast concentration settings, and process timing. The stainless steel vessel, cooling jacket, automatic heating system, and integrated control cabinet support repeatable preparation cycles. Mounted on a wheeled frame, the station can be repositioned to suit different production arrangements. It is suitable for breweries, cider makers, wineries, and other beverage producers seeking more consistent yeast preparation, reduced handling effort, and improved fermentation reliability.

Working Principle

The mobile yeast propagation station works by combining controlled temperature adjustment, gentle circulation, oxygen supply, and nutrient addition to prepare yeast for fermentation.
First, water inside the tank is heated to the preset starting temperature. Once the target is reached, the operator introduces yeast according to the selected preparation procedure. The circulation pump moves the mixture through the system, helping disperse clumps and maintain uniform conditions.
Oxygen is supplied during circulation, while wort or must is added gradually to provide nutrients. The system manages the temperature profile through electric heating and the cooling jacket, helping prevent sudden temperature changes during the process. Operators can configure the required settings through the programmable controller.
After the yeast mixture reaches the specified preparation conditions, it is transferred to the target fermentation vessel. The station can then be cleaned and prepared for the next cycle.

Operating Process

Step 1: Initial Setup
Inspect the tank, circulation pump, water supply, oxygenation system, and transfer connections. Select the process settings required for the yeast strain.
Step 2: Water Heating
Fill the tank with the required water volume and heat it to the configured starting temperature.
Step 3: Yeast Addition
Introduce the dry yeast or yeast culture according to the manufacturer’s recommended preparation procedure.
Step 4: Circulation and Dispersion
Activate the circulation pump to gently move the mixture and help disperse yeast clumps.
Step 5: Oxygenation and Nutrient Addition
Supply oxygen and gradually introduce suitable wort or must according to the programmed process requirements.
Step 6: Temperature Regulation
Use the heating and cooling functions to guide the mixture toward the required target temperature while avoiding abrupt temperature fluctuations.
Step 7: Transfer to Fermentation
Transfer the prepared yeast mixture to the designated fermentation vessel when the required preparation conditions have been achieved.
Step 8: Cleaning and Reset
Clean the tank and associated product-contact lines using an appropriate cleaning procedure before the next production cycle.

Technical Specifications

Parameter	Specification
Equipment type	Mobile yeast propagation station
Tank volume	450 L
Construction material	AISI 304 stainless steel
Electrical connection	230 V / single-phase / 50–60 Hz
Standby power consumption	0.2 kW
Fermentation preparation mode power	0.7 kW
Heating mode power	0.65 kW
Heating method	Integrated electric heating
Cooling method	Cooling jacket connected to a suitable cooling supply
Circulation system	Integrated membrane pump
Oxygenation	Integrated oxygenation element
Control system	Programmable electronic controller
Mobility	Wheeled support frame

Key Features and Benefits

• Automated Yeast Activation
  The system coordinates heating, circulation, oxygenation, and nutrient addition to support controlled yeast reactivation before pitching.
• Programmable Process Control
  Operators can configure key parameters, including starting temperature, target temperature, yeast concentration, and process duration, through the integrated controller.
• Integrated Heating and Cooling
  An electric heating system and cooling jacket help establish and maintain the required temperature profile throughout the preparation cycle.
• Gentle Yeast Circulation
  The integrated membrane pump circulates the yeast mixture to help disperse clumps and promote more uniform processing.
• Controlled Oxygen Supply
  An integrated oxygenation element introduces oxygen during circulation to support yeast development under the specified process conditions.
• Automatic Nutrient Management
  The station supports gradual additions of wort or must, helping provide nutrients while limiting abrupt changes in mixture temperature.
• Mobile Equipment Design
  The wheeled frame allows the unit to be moved and positioned conveniently within a beverage production facility.
• Reduced Yeast Consumption
  Consistent activation and preparation can help producers make better use of yeast and reduce dependence on additional yeast purchases, depending on the process.

Main Applications

Craft Beer Production
Prepares active yeast cultures for pitching into fermentation vessels, supporting reliable fermentation starts across brewing batches.
Commercial Brewery Operations
Helps standardize yeast preparation and coordinate pitching schedules within larger production workflows.
Cider Manufacturing
Supports yeast activation and preparation for controlled fermentation of apple juice and other suitable cider musts.
Wine Production
Provides a dedicated station for preparing yeast cultures before inoculation, according to the requirements of the selected yeast strain.
Dry Yeast Reactivation
Creates controlled conditions for rehydrating and activating dry yeast before it enters the main fermentation process.
Multi-Batch Beverage Production
Helps production teams organize repeatable yeast preparation cycles for different batches and fermentation vessels.

FAQ

Q1: What is a mobile yeast propagation station used for?
A: It is used to reactivate and prepare yeast before pitching into fermentation vessels. It integrates temperature control, circulation, oxygenation, and nutrient management to support a more consistent preparation process.
Q2: Which beverage industries can use this equipment?
A: It is suitable for beer, cider, and wine production where controlled yeast preparation is required.
Q3: How does the station control temperature?
A: An electric heating system raises the temperature, while a cooling jacket helps reduce it. The controller manages the configured temperature settings.
Q4: Why is oxygen supplied during yeast preparation?
A: Oxygen can support yeast growth and development under suitable conditions. The required supply depends on the yeast strain and preparation procedure.
Q5: Can the system process dry yeast?
A: Yes, it is designed to support dry yeast activation. The permitted yeast load and preparation conditions should be confirmed for the selected configuration.
Q6: Can the station be moved around the brewery?
A: Yes. The wheeled frame allows the equipment to be repositioned, provided that the floor, utility connections, and operating arrangements are suitable.
