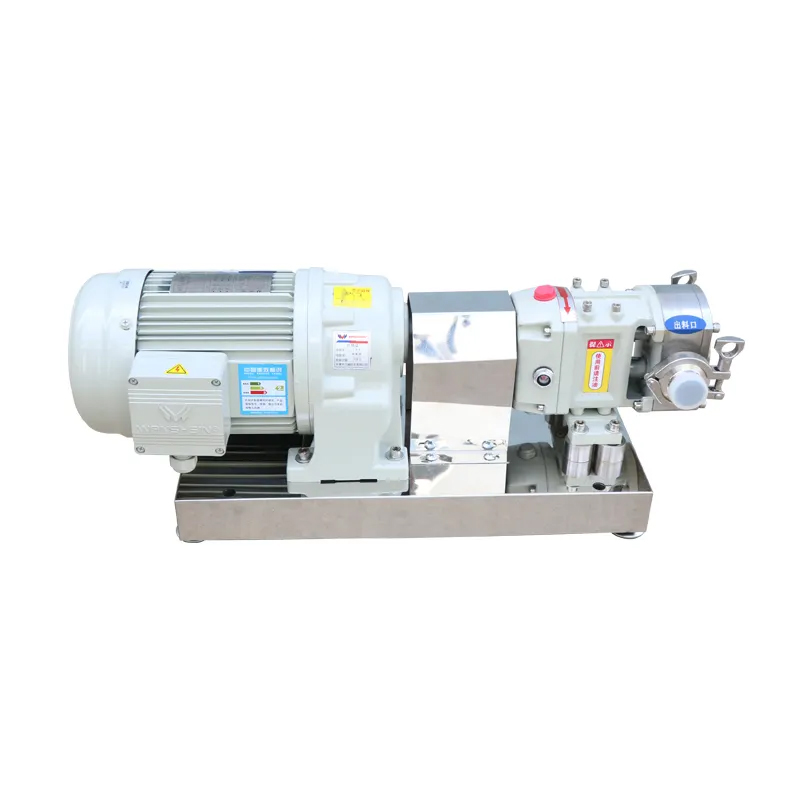

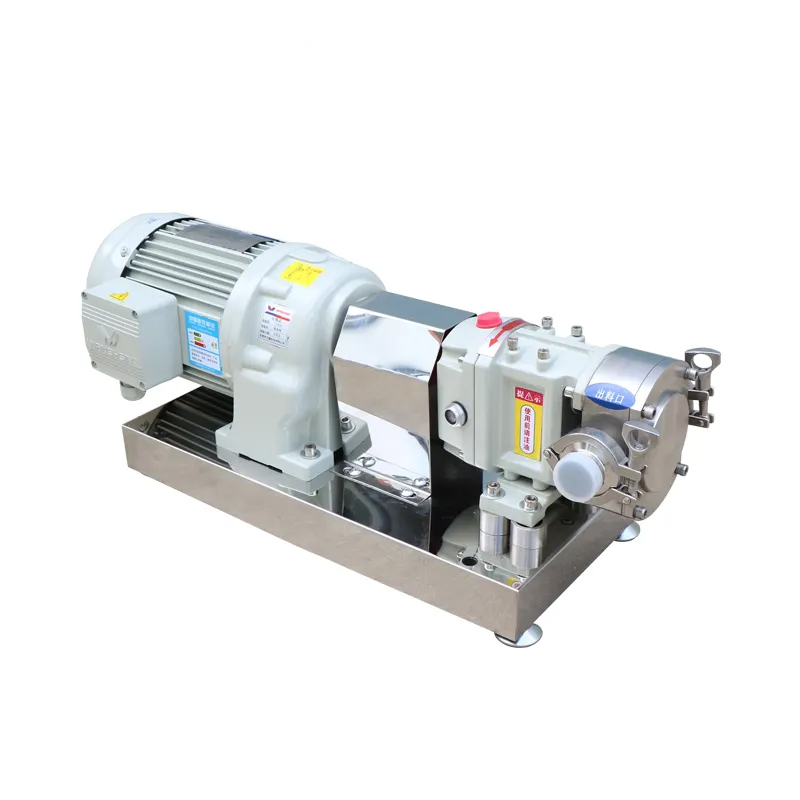

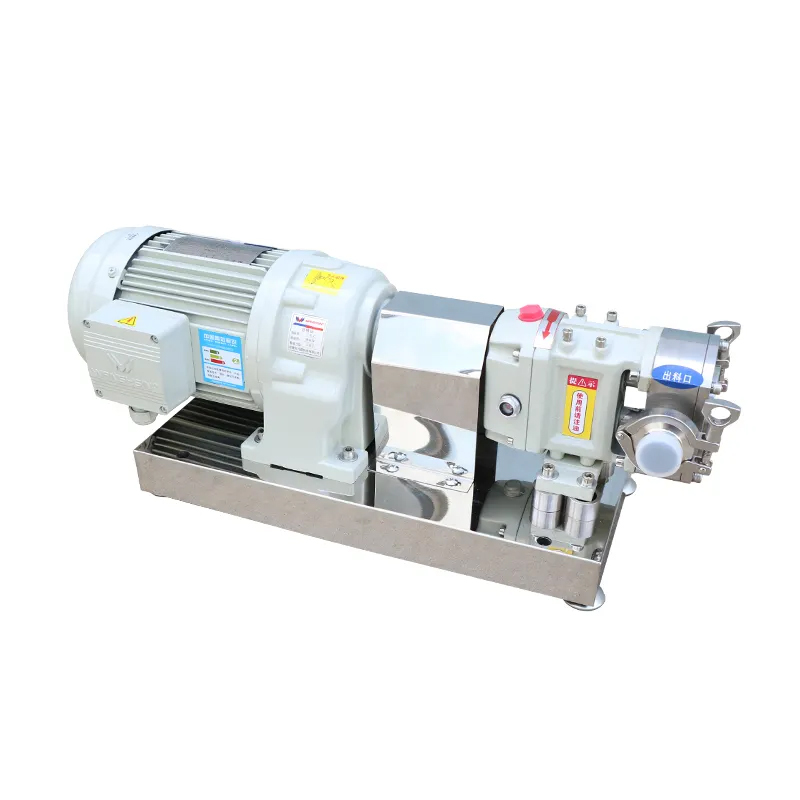

Transfer batter rotary lobe pump stainless steel 4.0GPM 4bar 1.2in 1.5HP 170RPM Stainless steel cam-rotor pump
A rotary lobe pump is a positive displacement pump with two rotors in the pump head. The two rotors are fixed to the two shafts and rotate synchronously in the opposite direction. The rotation creates a vacuum volume on the inlet side. The liquid is drawn into the pump head and travels in the chamber between the rotor and the pump head housing and is extruded on the outlet side. The pump has a wide range of viscosity suitability. It has the characteristics of low speed, high efficiency, stable operation, strong self-priming ability, convenient pump operation and preheating. The pump features a multi-style seal for reliable performance and long life. It is an ideal conveying equipment for food, pharmaceutical, chemical, oil, daily life and so on.
$775.00
Compare|
Product Name:
|
LX Series Hygienic lobe Pumps
|
||
|
Material Science:
|
SS304 / SS316L
|
||
|
sealing material:
|
EPDM (Standard, Approval)
|
||
|
Maximum flow:
|
2~1110GPM
|
||
|
Maximum pressure:
|
4~10bar
|
||
|
Maximum permissible fluid temperature:
|
100°C(212°F)/ 200°C(392°F) -water-cooling
|
||
|
Specification of power supply:
|
110V,220V,240V,380V,400V,415V,440V 50hz / 60hz
|
||
|
Connection type:
|
Fast clamping, flange, thread, SMS, barb, square port
|
||
|
Motor power:
|
1~30kw
|
||
|
Entry/Exit location:
|
Horizontal or vertical
|
||
|
Maximum viscosity:
|
1×10 6 CST
|
||
|
Optional criteria:
|
DIN,SMS,3A,RJT,ISO / IDF
|
||
|
Scope of application:
|
Dairy products, food, beverages, pharmacies, cosmetics, etc.
|
||
|
Maximum diameter:
|
1″/1.2″/1.5″/2″/2.5″/3″/4″/6″
|
||
|
Rotor type:
|
Single leaf, double leaf, three leaf, four leaf, axe head, spiral
|
||
|
Sealing material:
|
EPDM (standard, approved)
|
||
|
Sealing options:
|
Teflon/hygienic single mechanical seal / double mechanical seal with cooling system
|
||
|
Packaging details:
|
Plywood box or custom. Or according to customer requirements
|
||
Hygienic standard: All parts in contact with the medium (material) are made of stainless steel (SUS304, AISL316, 316L), in line with hygienic standards.
Working efficiency: up to 90%
medium transmission: it can transport high viscosity medium up to 1.5 million CPS, AS AS AS sensitive medium, containing solid soft particle media, up to 60%.
Reversible operation: using the pump’s symmetrical structure, reversible conveying direction, forward suction, reverse flushing.
Seal: Provides many types of sealing options, Optional double-sided mechanical seal design, suitable for dry running.
Positioning structure: unique rotor installation design, accurate positioning, easy
maintenance . Maintenance: compact structure, small footprint, no need to move the pipeline system during maintenance.
Wear-resistant: all contacts The parts are made of stainless steel with almost no wearing parts.
Low speed operation: low working speed, a certain gap between the rotor and the rotor and the pump body , no friction, low noise, long service life.
Low cost: high work efficiency, Low consumption, environmental protection, less maintenance and long life.
Lx series sanitary rotor pump has various conveying modes and driving forms. It can be changed according to customer requirements and can be divided into, for example, fixed speed, stepless speed regulation, variable frequency speed regulation, servo drive type and explosion proof type. According to the requirements of customer transportation methods and hygiene requirements, the categories are divided into horizontal conveyor type, vertical conveyor type, mobile type and sanitary type.
structure
The unique design structure ensures product performance and durability.
1 ,seal diversity choice, you can choose Teflon seal, or single and double mechanical seal.
2 ,rotor and pump body are made of 304/316L food grade material.
3 ,unique and rotor Mounted Design, Precise Positioning, the Easy to Overhaul.
4, Stainless Steel Double Bolts are Fixed, More stable and the Easy to Assemble and disassemble.
5, Heavy Duty the Tapered Ball bearings
6, Synchronous Gears CAN BE the Selected from Straight teeth and helical Gears. at The Gears have high hardness, smoother torque rotation and low noise operation.
7 ,can provide multi-directional installation.
Application field
Household Chemicals: the SOAP, the SOAP, Toothpaste, Glycerin
Fine Cleaning Chemicals: Fuels, Pigments, Additives, Adhesives
Chemical Fiber: Polyester Fiber, Rayon, Polypropylene Fiber.
Papermaking: Starch Paste, slurry, DEFOAMER.
Coatings: Paints, Inks, Resins.
Food : chocolate, syrup, cream, mayonnaise, jam.
Cosmetics: creams and lotions, hair gels, essential oils.
Pharmaceutical: pills, syrup, extracts, emulsions, pharmaceutical pastes
parameter
Performance overview
| MODEL | DISPLACEMET
LITER/REV |
NOMLNAL
LONNECTION SIZE |
DIFFERENTIAL
PRESSURE RATING BAR |
MAXIMUM PUMP SPEED RPM |
INPUT SHAFT
DIAMETER (MM) |
MAXIMUM TORQUE N-M |
| LX-6 | 0.06 | 25（1″） |
10 |
960 | 19 | 108 |
| LX-9 | 0.09 | 32（1.2″） | 10 | 960 |
19 |
108 |
| LX-18 | 0.18 | 40（1.5″） | 10 | 960 | 21 | 166 |
| LX-36 | 0.36 | 50（2″） | 10 | 720 | 28 | 244 |
| LX-60 | 0.6 | 65（2.5″） | 10 | 720 | 38 | 444 |
| LX-135 |
1.35 |
80（3″） | 10 | 600 | 48 | 832 |
| LX-250 | 2.5 | 100（4″） | 10 | 600 | 60 | 1665 |
| LX-535 | 5.35 | 150（6″） | 10 | 400 | 75 | 2800 |
| LX-700 | 7 | 150（6″） | 10 | 400 | 75 | 3200 |
