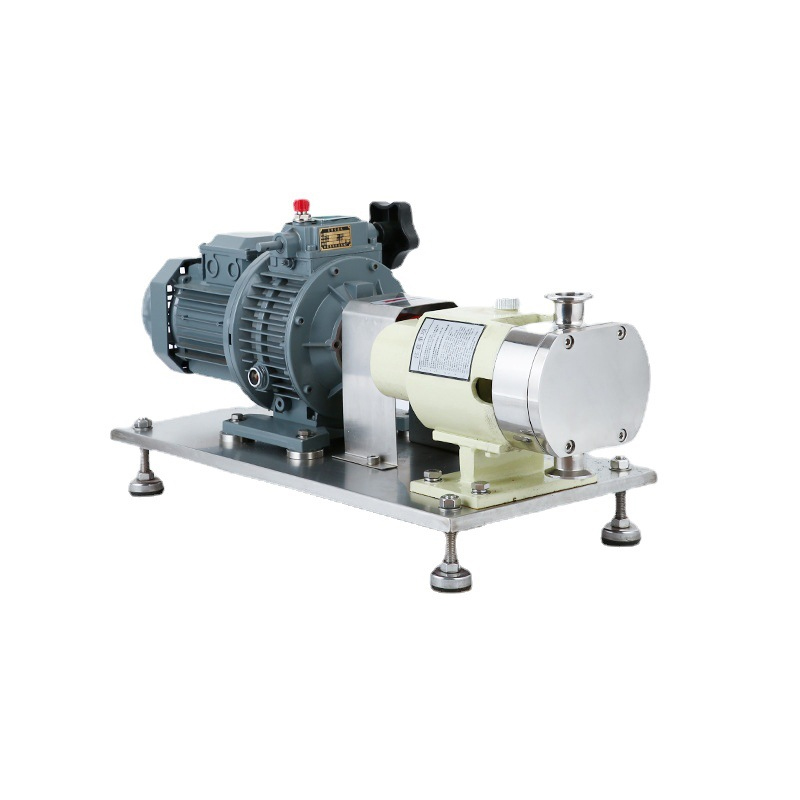

ZB3A DIN SMS Connect Hygienic food grade Stainless Steel 304 316L Chocolate Syrup honey transfer Cam sanitary Rotary Lobe Pump

Add to wishlist
Compare

Rotor pump is also named rotary lobe pump, three-lobe pump,sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated，medium(material) is transpor-ted continuously.

$1,590.00

Compare

working principle:
ZB series colloidal pump – also known as Roots pump, stainless steel rotor pump, cam pump, universal delivery pump, yeast pump, butterfly pump, three-leaf pump, sole pump, medicine pump, hot melt colloid pump, particle colloid pump, slag Material pumps, protein slag pumps, high-consistency pulp pumps, etc., rely on two synchronous counter-rotating rotors to generate suction (vacuum) at the inlet during the rotation process, thereby sucking the materials to be transported.

The two rotors separate the rotor chambers into several small spaces, and run in the order of a b c d; when it runs to position a, only room I is filled with medium; when it reaches position b, part of the medium is closed in room B; Part of the medium is also sealed in the chamber; when the position d is reached, the A and B chambers communicate with the II chamber, and the medium is transported to the discharge port.

Application
Food and Beverage Industry, Pharmaceutical industry, Washing and Cleaning, Water Distribution
Power Source
Electric
Pressure
Low Pressure
Structure
Centrifugal Pump
Outlet Size
32MM-102MM
Voltage
210V-460V
Power
0.55KW-30kw, 0.55KW-30KW
motor
50/60Hz
Product name
Sanitary Centrifugal Pump
Speed
2850/3440 r/min
MOQ
1pcs
Lift
10m-60m
Material
Stainless Steel
Connection Form

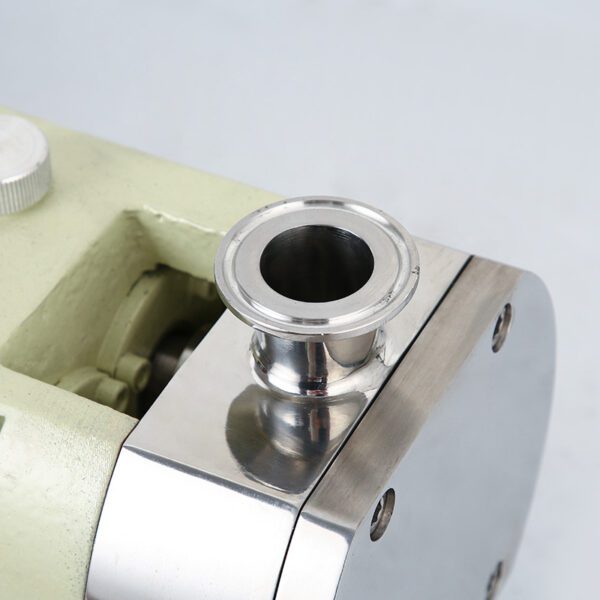

Clamp,thread,flange,DIN,SMS,RJT,3A
Customization
Available
Seal Material
C/Sic/TC/TC and Graphite/Sic
Pump Type
Open Impeller
Temperature
120℃/248°F

Operating Principle.

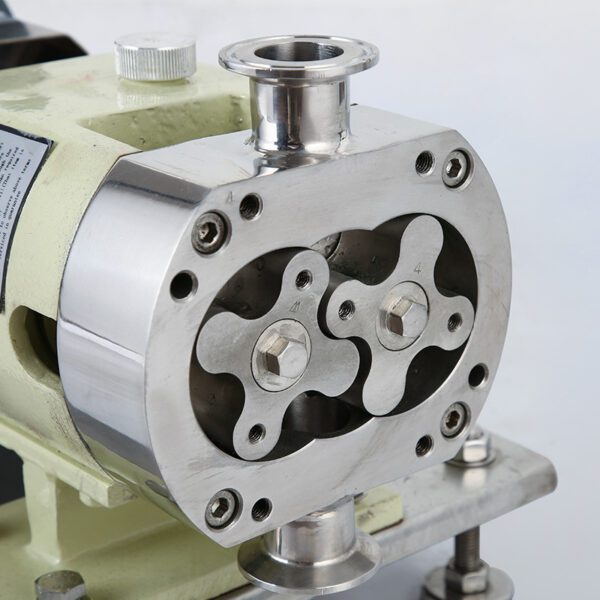

Rotor pump is also named rotary lobe pump, three-lobe pump,sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.
The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated，medium(material) is transpor-ted continuously.
Product Appliction
