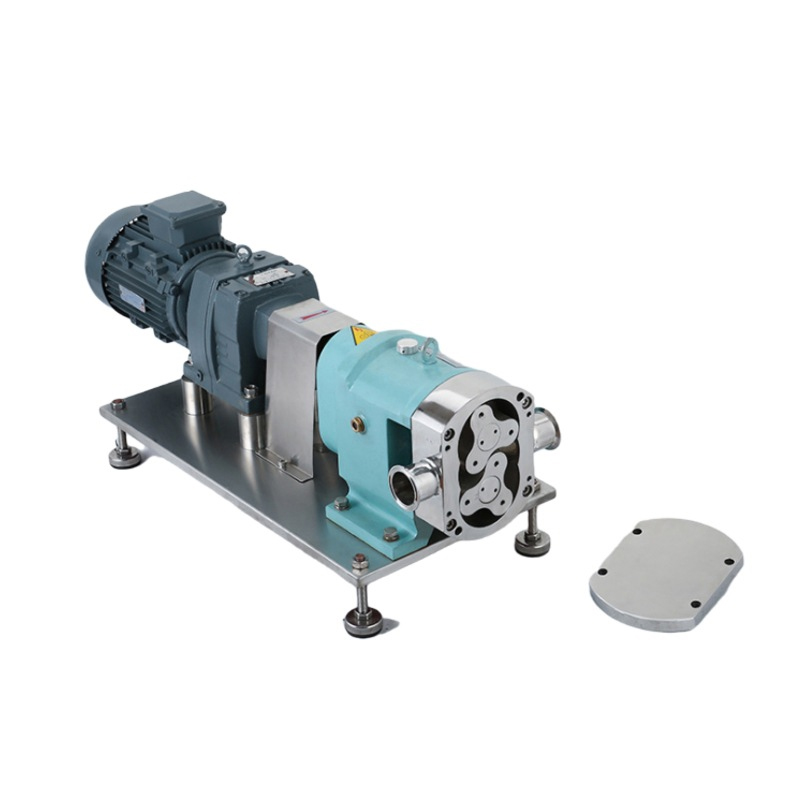

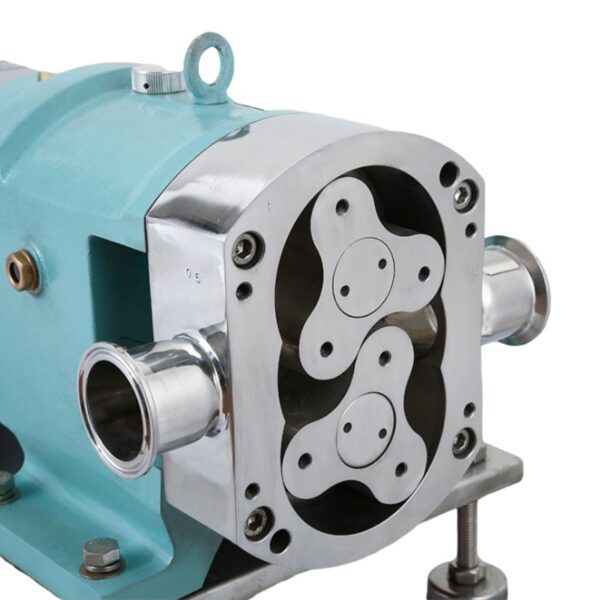

Food Grade Mechanical Variable Positive Pumps Stainless Steel 316L Rotary Lobe Pumps,Rotary pump for high viscosity material
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosmetics and pharmaceutical industries. Horizontal TUL Series and vertical TUR series, different rotor shapes(tri-lobe rotors butterfly type rotors, etc.
$1,250.00
CompareFood Grade Mechanical Variable Positive Pumps Stainless Steel 316L Rotary Lobe Pumps
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosmetics and pharmaceutical industries. Horizontal TUL Series and vertical TUR series, different rotor shapes(tri-lobe rotors butterfly type rotors, etc.
1). Food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
2). Fruit concentration: tomato paste, pudding, juice, jam and jelly.
3). Paste products: fats, grease and etc..
4). Cosmetic: face cosmetic, abluent, fixature, spice and so on.
5). Medicine: extract, emulsion and pill plasm.
6). Chemical industry: dyes, grease, dissolvant, resin and polymer.
|
Name:
|
Food Grade Mechanical Variable Positive Pumps Stainless Steel 316L Rotary Lobe Pumps
|
|||
|
Material:
|
SS304,SS316L
|
|||
|
Seal Material:
|
EPDM/PTFE
|
|||
|
Max. Flow:
|
90m3/h / 395 GPM
|
|||
|
Max.pressure:
|
12bar/ 174PSI
|
|||
|
Max. working temperature:
|
120℃
|
|||
|
Voltage:
|
110V, 220V, 380V
|
|||
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|||
|
Available connection:
|
Clamp, Thread Butt weld, Flange
|
|||
|
Packing:
|
As per the request of customers
|
|||
|
Delivered:
|
Usually within 20 days after receiving T/T down payment
|
|||
For some special conditions in chemical or foodindustry packing sealis an ideal choice due to itssimple structure low cost and a durable useful lifeguarantees that packing sealis applicable.
