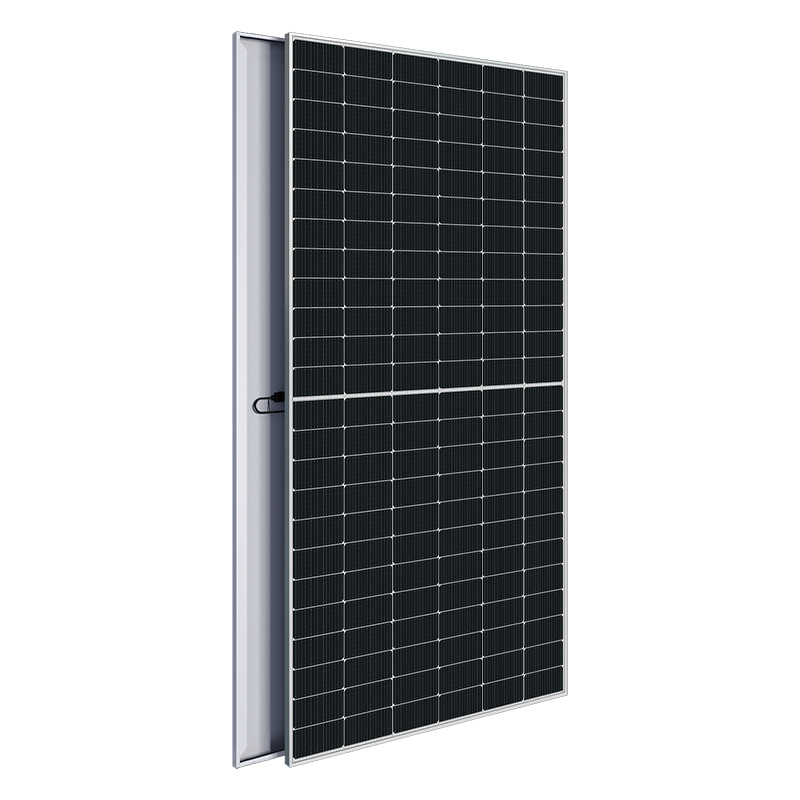

Solar panel ASTRO N5 single-sided 585W series (182) solar photovoltaic modules, outdoor solar panels

Add to wishlist
Compare

Power range: 565~585W
Power tolerance: 0~+5W
Highest module conversion efficiency: 22.6%
First year attenuation: ≤ 1.0%
Attenuation over the years: ≤ 0.4%
● TOPCon / low temperature coefficient
● Lossless cutting / PID resistant
● Low BOS and LCOE

$205.00 – $213.00

Compare

Solar panel Mechanical parameters
Component Dimensions (L x W x H): 2278 x 1134 x 35 mm
Cell: n-type monocrystalline silicon
Number of cells: 144 (6*24)
Frame type: silver white anodized aluminum profile
Glass thickness: 3.2 mm
Cable length (including connectors): vertical installation: ( + ) 350 mm, ( – ) 250 mm;
or customized;
Cable cross-section (IEC/UL): 4 mm² / 12 AWG
① Maximum test mechanical load: 5400 Pa (front) / 2400 Pa (rear)
Connector type (IEC/UL): HCB40 (standard) / MC4-EVO2A (optional)
Packaging parameters
Component weight: 26.9 kg
Quantity per pallet: 31 pieces / pallet (subject to the contract)
Single pallet weight: 893 kg
Loading capacity: (17.5m flatbed truck) 930 yuan / car
① Please refer to Chint component installation manual or contact our company for confirmation; maximum test mechanical load = 1.5 maximum design mechanical load.

Electrical performance parameters
STC: light intensity 1000W/m, battery temperature 25°C, air quality=1.5

Rated peak power (Pmpp /Wp) 565 570 575 580 585
Rated peak voltage (Vmpp/V) 42.25 42.38 42.5 42.63 42.75
Rated peak current (lmpp/A) 13.37 13.45 13.53 13.61 13.68
Open circuit voltage (Voc/V) 50.7 50.85 51 51.15 51.3
Short circuit current (lsc /A) 14 14.1 14.2 14.3 14.4
Module Overall Area Efficiency 21.90% 22.10% 22.30% 22.50% 22.60%

NMOT: Light intensity 800W/m², ambient temperature 20°C, air quality=1.5, wind speed 1m/s

Rated peak power (Pmpp /Wp) 424.9 428.6 432.4 436.2 439.9
Rated peak voltage (Vmpp /V) 39.77 39.89 40 40.12 40.24
Rated peak current (Impp /A) 10.68 10.75 10.81 10.87 10.93
Open circuit voltage (Voc/V) 48.16 48.3 48.44 48.59 48.73
Short circuit current (Isc /A) 11.3 11.38 11.46 11.54 11.62
SKU: N/A Category: Tag:
Specification

565w, 570w, 585w
