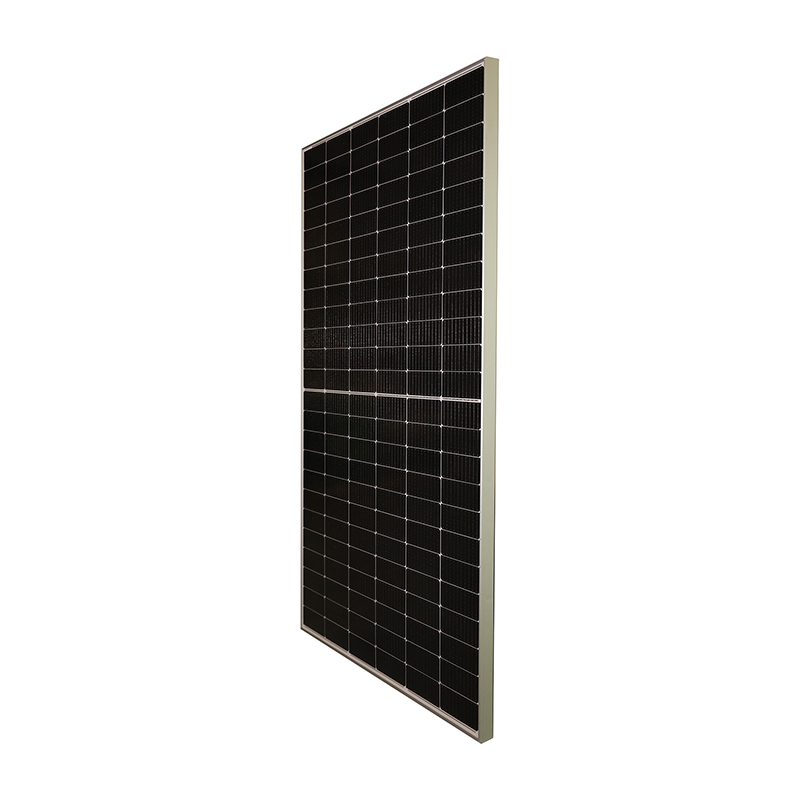

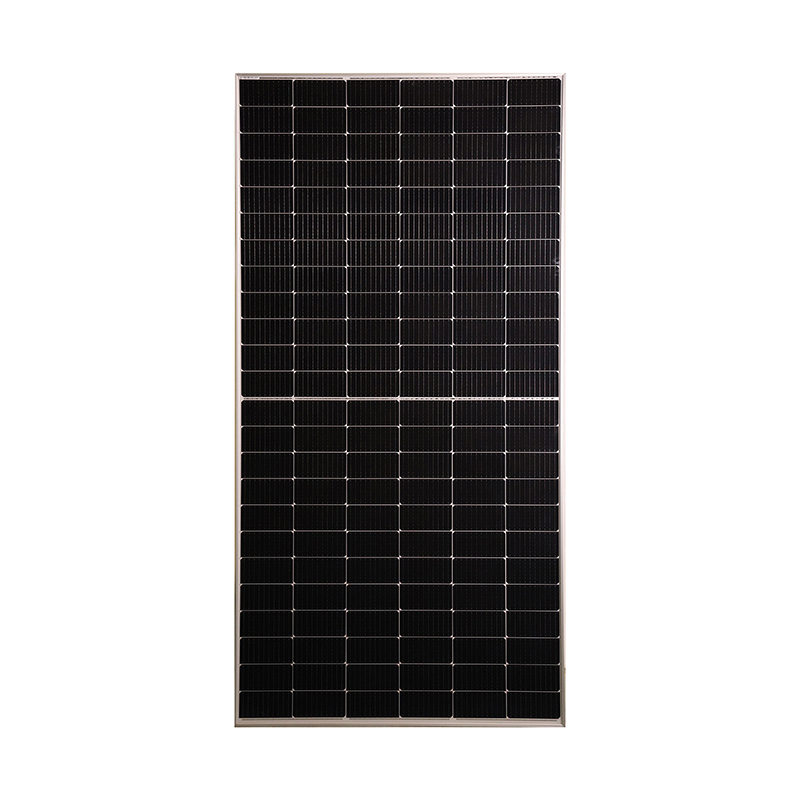

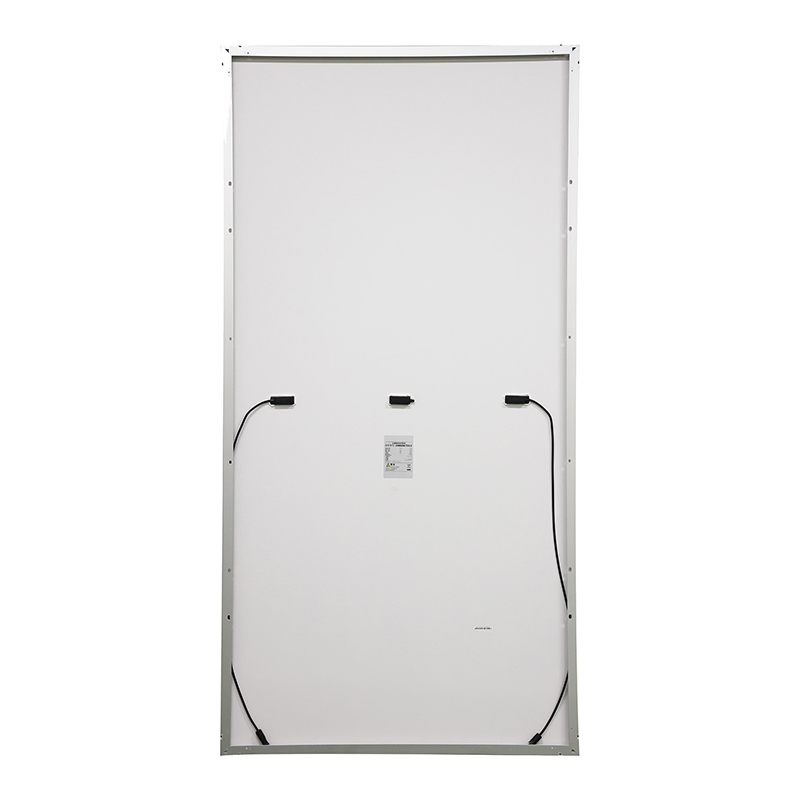

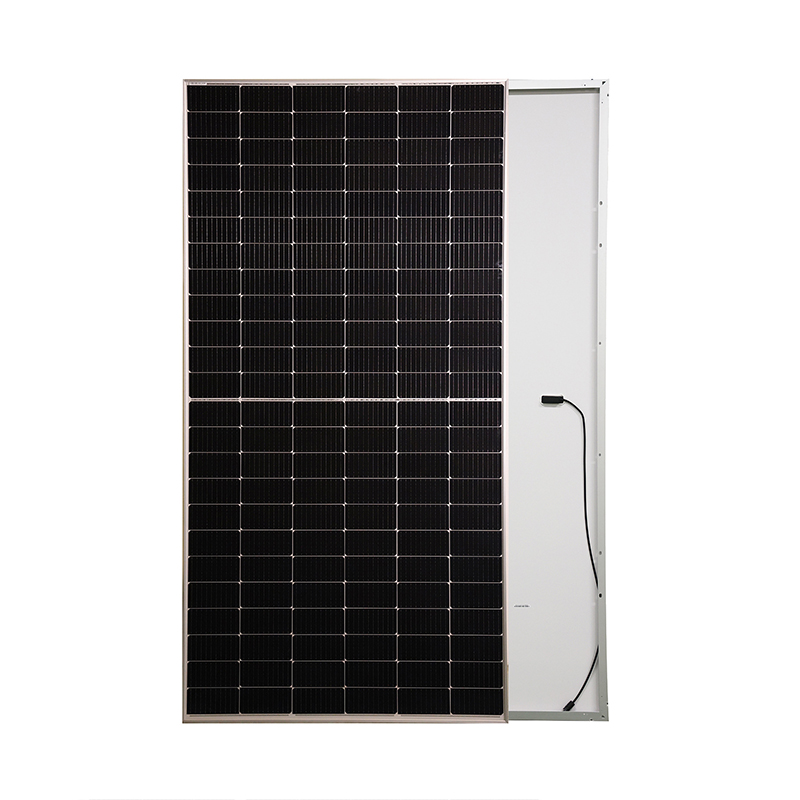

JAM78S30 GR 585-610W JA Solar Panel PERC Half Cell Module Mono Solar Panel Monocrystalin Solar Panel TUV CE Certification
Power by the lastest SMBB n-type solar cell, half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.
- Higher power generation better LCOE
- Better weak illumination response
- n-type with very Lower LID
- Better Temperature Coefficient
$216.00 – $226.00
CompareSPECIFICATIONS of JA Solar Panel
| Cell | Mono |
| Weight | 30.5kg |

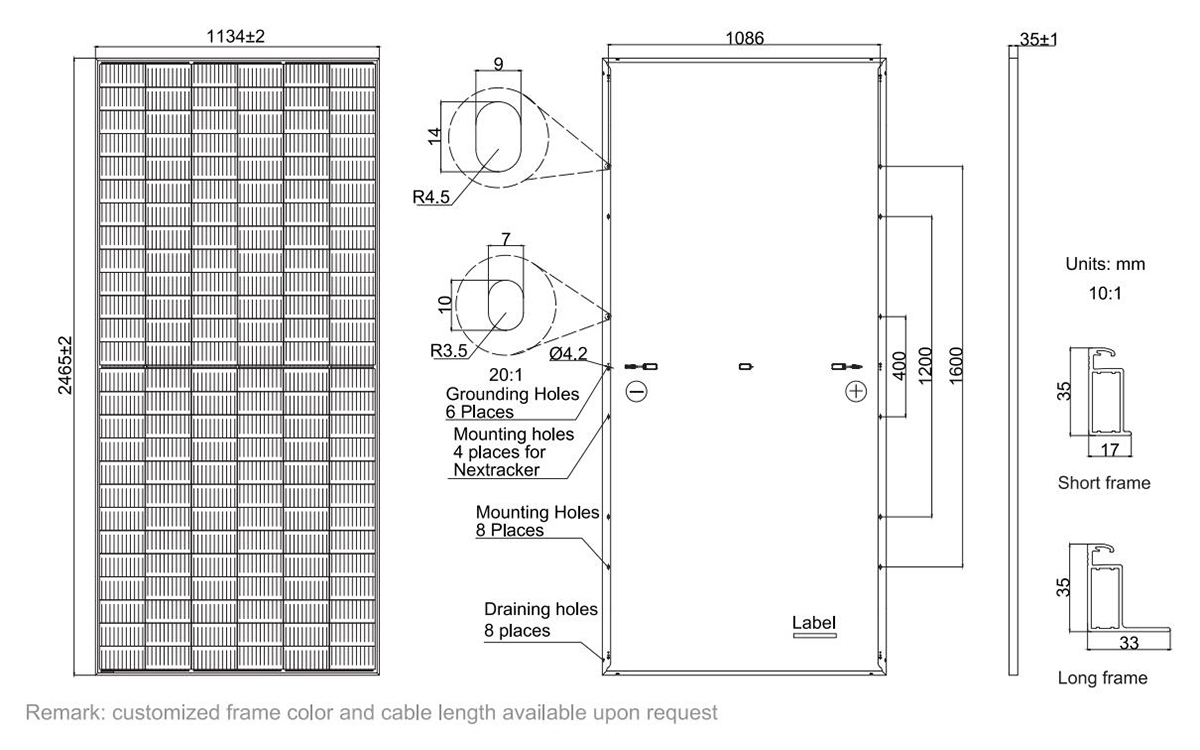

| Dimensions | 2465±2mm×1134±2mm×35±1mm |
| Cable Cross Section Size | 4mm2(IEC),12 AWG(UL) |
| No.of cells | 156(6×26) |
| Junction Box | IP68,3 diodes |
| Connector | QC4.10-351/ MC4-EVO2A |
| Cable Length (Including Connector) | Portrait: 200mm(+)300mm(-); 800mm(+)800mm(-)(Leapfrog); Landscape: 1500mm(+)1500mm(-) |
| Front Glass/Back Glass | 2.0mm/2.0mm |
| Packaging Configuration | 31pcs/Pallet, 496pcs/40HQ Container |
FEATURES of JA Solar Panel
Solar Panel Glass
- High-transmittance and low reflection
- High solar transmittance
- High mechanical strength
- High flatness
EVA
- Excellent durability, such as weather resistance, high-temperature and high humidity resistance, UV light resistance.
- Excellent light transmittance and transparency
- Inactivation and harmless in solar cells during processing
- Have a high cross linking rate after lamination.
- Good encapsulating properties

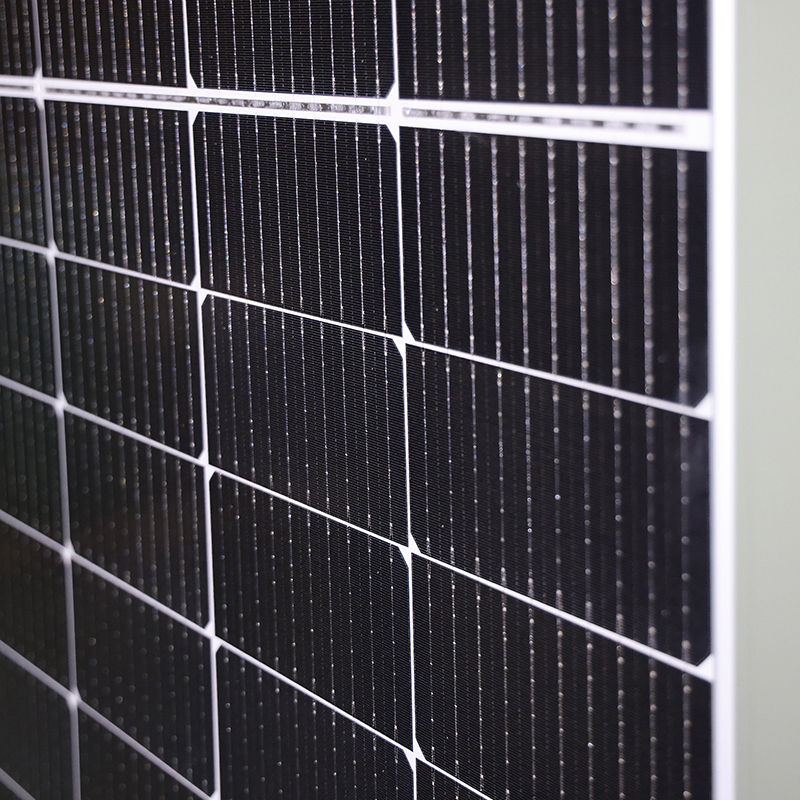

Solar Cells
- High output-power: conversation efficiency is 18%-22%
- High shunt-resistance: adapt the several environmental conditions.
- Bypass diode minimizes the power drop by shade
- Excellent low light effect
- Low breakage rate

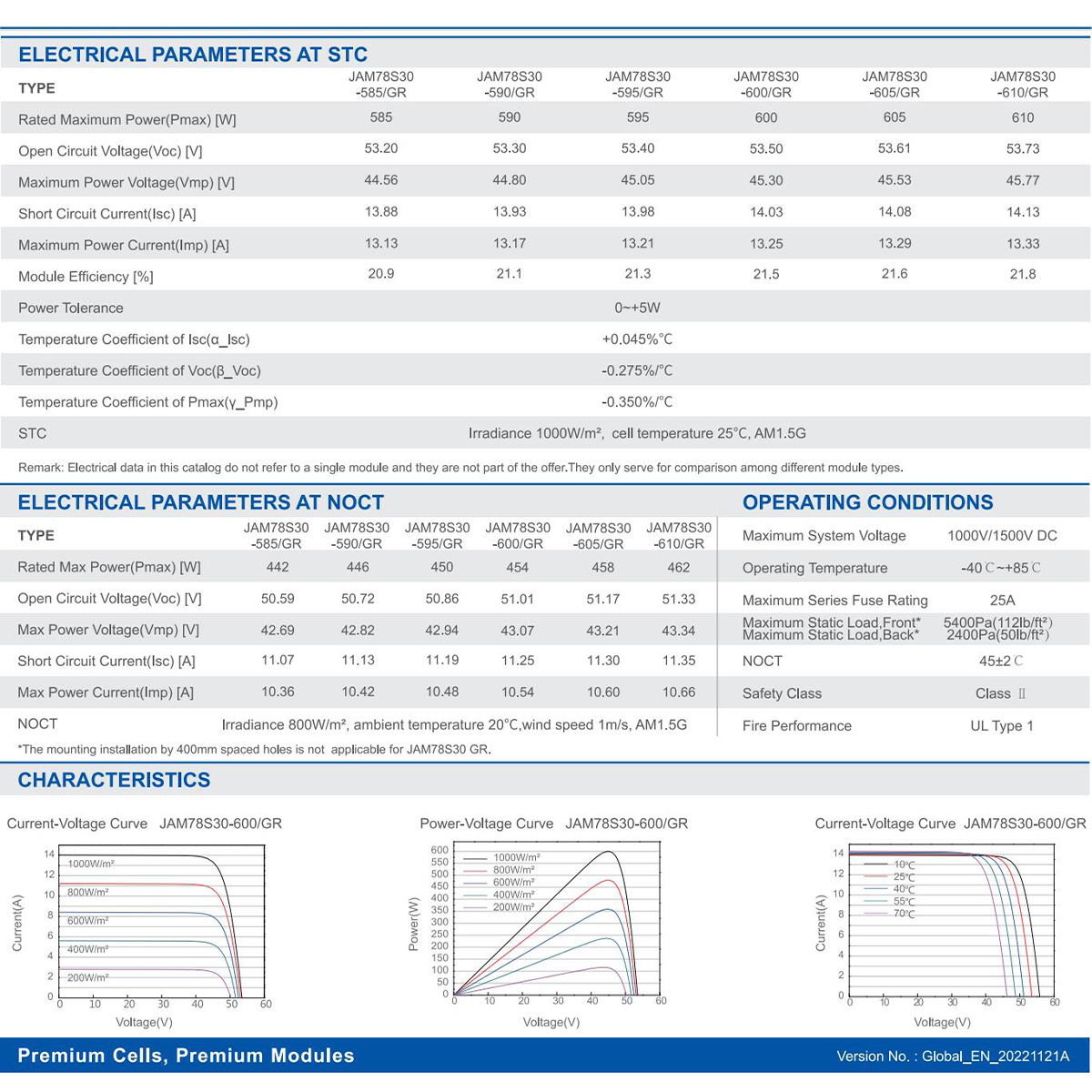

| Max. Power | 585W, 590W, 595W, 600W, 605W, 610W |
|---|
