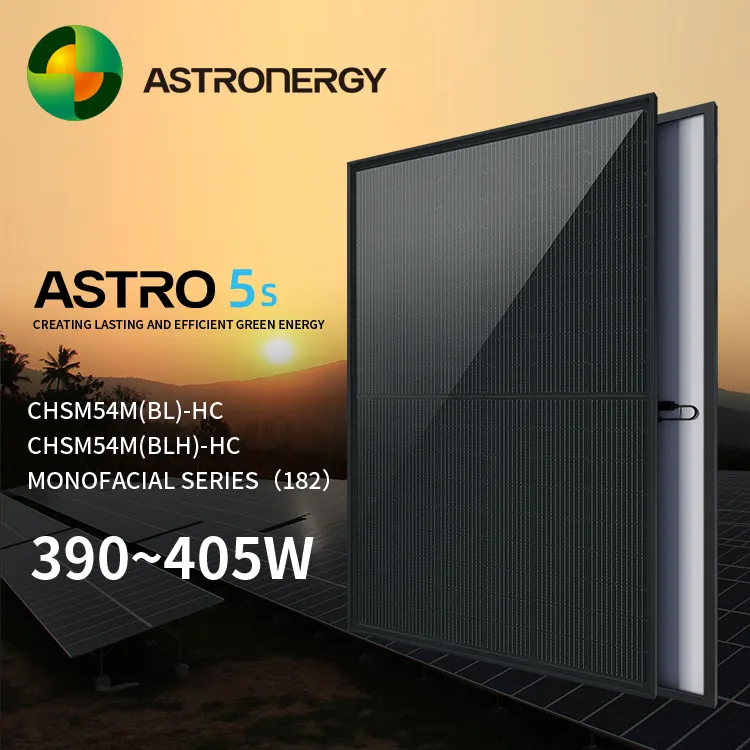

Astronergy ASTRO 5s CHSM54M-HC Monofacial 390W 405W Solar Panel For Solar Home System
TEMPERED GLASS
High temperature resistance, strong thermalstability, can withstand 3 times the tempera-ture difference of ordinary glass.
High light transmittance, the glass surfaceadopts AR coating process, which can convertlight energy to the greatest extent High bend-ing resistance and good impact resistance.
$142.00 – $156.00
CompareThe solar cell can directly convertlight energy into electrical energythrough photoelectric effect orphoto-chemical effect. As long as it isexposed to light, voltage and currentcan be output instant.
|
Mechanical Specifications
|
||||||
|
Outer dimensions (L x W x H)
|
1722 x 1134 x 30 mm
|
|||||
|
Cell type
|
n-type mono-crystalline
|
|||||
|
No. of cells
|
108 (6*18)
|
|||||
|
Frame technology
|
Aluminum, black anodized
|
|||||
|
Front glass thickness
|
3.2 mm
|
|||||
|
Cable length (Including connector)
|
Portrait: ( + )350 mm,( – )250 mm；
Customized length |
|||||
|
Cable diameter (IEC/UL)
|
4 mm2 / 12 AWG
|
|||||
|
① Maximum mechanical test load
|
5400 Pa (front) / 2400 Pa (back)
|
|||||
|
Connector type (IEC/UL)
|
HCB40 (Standard) / MC4, MC4-EVO2A (Optional)
|
|||||
|
Module weight
|
21.3 kg
|
|||||
|
Packing unit
|
36 pcs / box (Subject to sales contract)
|
|||||
|
Weight of packing unit (for 40’HQ
container) |
811 kg
|
|||||
|
Modules per 40′ HQ container
|
936 pcs
|
|||||
| Specification | 390w, 405w, 430w |
|---|
Based on 0 reviews
