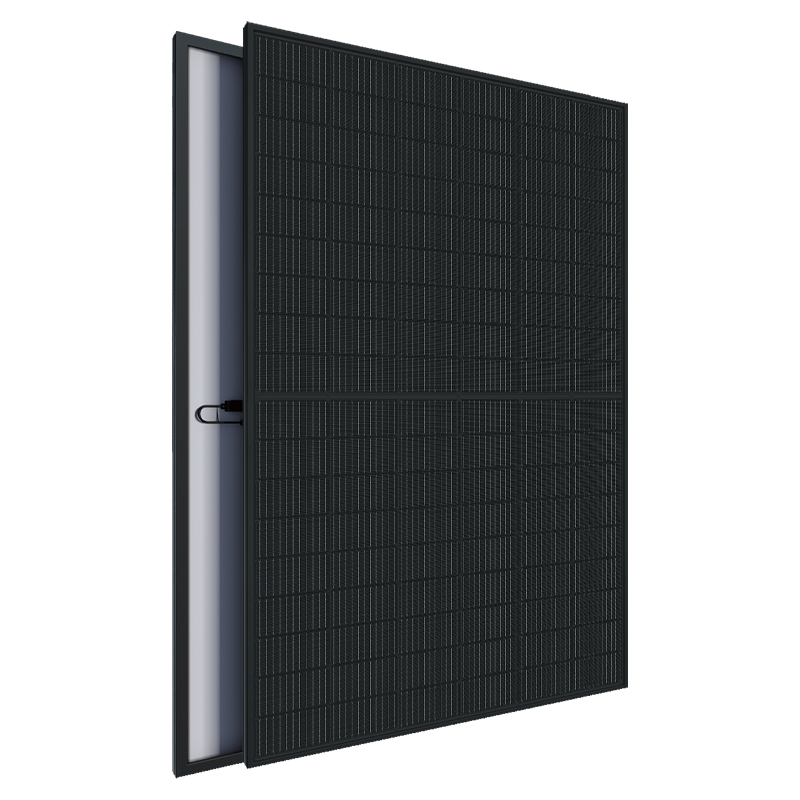

Solar panel ASTRO N5s single black 430W series (182), 410W~430W photovoltaic power generation export solar module
Power range: 415~430W
Power tolerance: 0~+5W
Maximum module conversion efficiency: 22.0%
First year attenuation: ≤ 1.0%
Attenuation over the years: ≤ 0.4%
● Suitable for distributed projects
● high power
● High reliability
● Easy to install and transport
$151.00 – $156.00
CompareSolar panel Mechanical parameters

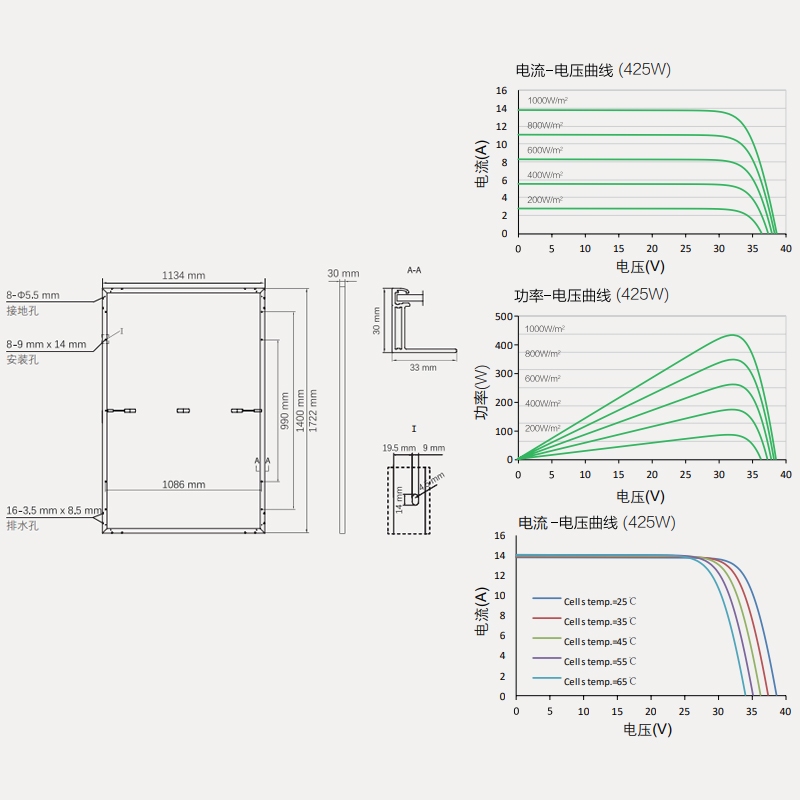

Component Dimensions (L x W x H): 1722 x 1134 x 30 mm
Cell: n-type monocrystalline silicon
Number of cells: 108 (6*18)
Bezel Type: Black anodized aluminum profile
Glass thickness: 3.2 mm
Cable length (including connectors): vertical installation: ( + ) 350 mm, ( – ) 250 mm;
or customized;
Cable cross-section (IEC/UL): 4 mm² / 12 AWG
① Maximum test mechanical load 5400 Pa (front) / 2400 Pa (rear)
Connector Type (IEC/UL): HCB40 (Standard) / MC4, MC4-EVO2A (Optional)
Packaging parameters
Component weight: 21.3 kg
Quantity per pallet: 36 pieces / pallet (subject to the contract)
Single pallet weight: 811 kg
Loading capacity: (17.5m flatbed car) 1332 pieces / car
① Please refer to Chint component installation manual or contact our company for confirmation; maximum test mechanical load = 1.5 maximum design mechanical load.
Electrical performance parameters
STC: light intensity 1000W/m, battery temperature 25C, air quality=1.5
| Rated peak power (Pmpp /Wp) | 415 | 420 | 425 | 430 |
| Rated peak voltage (Vmpp /V) | 31.76 | 31.93 | 32.1 | 32.27 |
| Rated peak current (Impp /A) | 13.06 | 13.15 | 13.24 | 13.33 |
| Open circuit voltage (Voc/V) | 37.8 | 38 | 38.2 | 38.4 |
| Short circuit current (lsc /A) | 13.76 | 13.87 | 13.98 | 14.09 |
| Module Overall Area Efficiency | 21.30% | 21.50% | 21.80% | 22.00% |
NMOT: light intensity 800W/m², ambient temperature 20C, air quality = 1.5, wind speed 1m/s
| Rated peak power (Pmpp /Wp) | 312.1 | 315.8 | 319.6 | 323.4 |
| Rated peak voltage (Vmpp / V) | 29.9 | 30.06 | 30.21 | 30.37 |
| Constant peak current (lmpp /A) | 10.44 | 10.51 | 10.58 | 10.65 |
| Open circuit voltage (Voc/V) | 35.91 | 36.1 | 36.29 | 36.48 |
| Short circuit current (lsc /A) | 11.11 | 11.2 | 11.28 | 11.37 |
| Specification | 415w, 425w, 430w |
|---|
Based on 0 reviews
Be the first to review “Solar panel ASTRO N5s single black 430W series (182), 410W~430W photovoltaic power generation export solar module”
Related products
-
ASTRONERGY Solar Panel
Chint PV Panel A-class single crystal 550W-650W solar panel,Wholesale Astronergy PV Solar Module ,Chint Solar Panels Factory Price in Stock
ASTRONERGY Solar PanelChint PV Panel A-class single crystal 550W-650W solar panel,Wholesale Astronergy PV Solar Module ,Chint Solar Panels Factory Price in Stock
*Anti reflective glass
*Translucency of normal luminance is increased by 2%
*Module efficiency is increased by 2%
*Self-cleaning functionSKU: n/a -
ASTRONERGY Solar Panel
Solar panel ASTRO N5 single-sided 585W series (182) solar photovoltaic modules, outdoor solar panels
ASTRONERGY Solar PanelSolar panel ASTRO N5 single-sided 585W series (182) solar photovoltaic modules, outdoor solar panels
Power range: 565~585W
Power tolerance: 0~+5W
Highest module conversion efficiency: 22.6%
First year attenuation: ≤ 1.0%
Attenuation over the years: ≤ 0.4%
● TOPCon / low temperature coefficient
● Lossless cutting / PID resistant
● Low BOS and LCOESKU: n/a -
ASTRONERGY Solar Panel

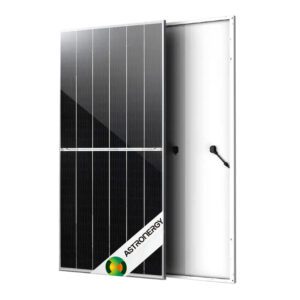

Astronergy ASTRO 5s CHSM54M-HC Monofacial 390W 405W Solar Panel For Solar Home System
ASTRONERGY Solar PanelAstronergy ASTRO 5s CHSM54M-HC Monofacial 390W 405W Solar Panel For Solar Home System
TEMPERED GLASS
High temperature resistance, strong thermalstability, can withstand 3 times the tempera-ture difference of ordinary glass.
High light transmittance, the glass surfaceadopts AR coating process, which can convertlight energy to the greatest extent High bend-ing resistance and good impact resistance.SKU: n/a -
Trinasolar Solar Panel

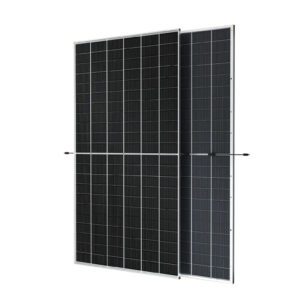

Trina 550W Vertex 425W Solar Full Black Trinasol 450 Wats 150 Cell Solarpanel Panel Fotovoltaico Trinasolar Watt
