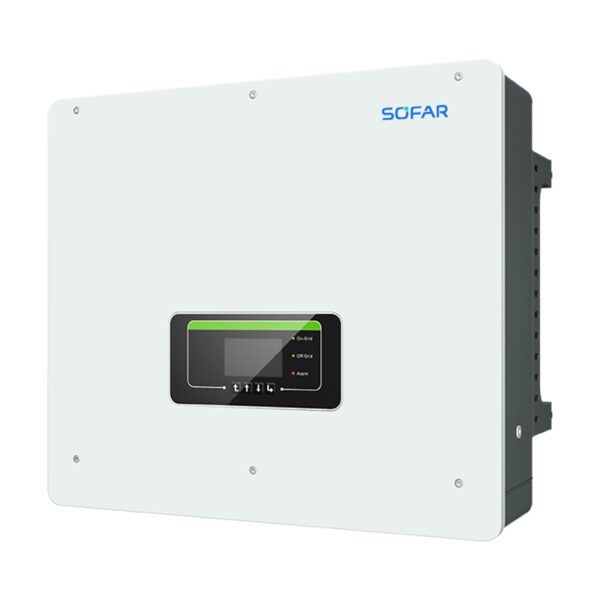

Residential Storage Inverter ME 5K~20KTL-3PH AC-Coupled Energy Storage Inverter 5kW 6kW 8kW 10kW 15kW 20kW Solar Inverter
Residential Storage Inverter ME 5K~20KTL-3PH AC-Coupled Energy Storage Inverter 5kW 6kW 8kW 10kW 15kW 20kW Solar Inverter - Image 2

Residential Storage Inverter ME 5K~20KTL-3PH AC-Coupled Energy Storage Inverter 5kW 6kW 8kW 10kW 15kW 20kW Solar Inverter

Compare
  • Dimensions (W*H*D): 586.6*515*261.2mm
  • Operating temperature range: -30℃～+60℃
  • Relative humidity range: 5%～95%
  • Max. operating altitude: <4000m
  • Standby self-consumption: <20W
  • Topology: Transformerless
  • Installation method: Wall-mounted
  • Degree of protection: IP65

$2,931.00

Compare

Advantages of the Residential Storage Inverter ME 5K~20KTL-3PH

  1. Max. battery charge / discharge eciency up to 97.8%.
  2. Off-grid and on-grid output can be connected tounbalanced load.
  3. Wide battery voltage range (180-800 V).
  4. Flexible switching between grid-tied mode andenergy storage mode.
  5. Compact design with functional LCD.

Model ME 5KTL-3PH ME 6KTL-3PH ME 8KTL-3PH ME 10KTL-3PH ME 15KTL-3PH ME 20KTL-3PH
AC output (on-grid )
Rated output power 5000W 6000W 8000W 10000W 15000W 20000W
Rated output current 7.2A 8.7A 11.6A 14.5A 21.7A 29.0A
Rated grid voltage 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac
Rated grid frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Max. output apparent power 5500VA 6600VA 8800VA 11000VA 16500VA 22000VA
Max. output current 8A 10A 13A 16A 24A 32A
THDi <3% <3% <3% <3% <3% <3%
Power factor 1 default (+/-0.8 adjustable)
Battery parameters
Battery type Lithium-ion& Lead-acid
Battery voltage range 180V~800V 180V~800V 180V~800V 180V~800V 180V~800V 180V~800V
Number of battery input channels 1 1 1 2 2 2
Max.charge/discharge power 5000W 6000W 8000W 10000W 15000W 20000W
Max. charge/discharge current 25A 25A 25A 50A (25A/25A) 50A (25A/25A) 50A (25A/25A)
BMS communication mode CAN, RS485 CAN, RS485 CAN, RS485 CAN, RS485 CAN, RS485 CAN, RS485
AC output (off-grid)
Rated output power 5000W 6000W 8000W 10000W 15000W 20000W
Rated output current 7.2A 8.7A 11.6A 14.5A 21.7A 29.0A
Rated output voltage 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac 3/N/PE, 230/400Vac
Rated output frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Max. output apparent power 5500VA 6600VA 8800VA 11000VA 16500VA 22000VA
Peak output apparent power. Time 10000VA, 60s 12000VA, 60s 16000VA, 60s 20000VA, 60s 22000VA, 60s 22000VA, 60s
Max.output current 8A 10A 13A 16A 24A 32A
THDv(@ linear load) <3% <3% <3% <3% <3% <3%
Switching time <10ms <10ms <10ms <10ms <10ms <10ms
Efficiency
Max.efficiency of charging 97.6% 97.6% 97.6% 97.8% 97.8% 97.8%
Max. efficiency of discharging 97.6% 97.6% 97.6% 97.8% 97.8% 97.8%
