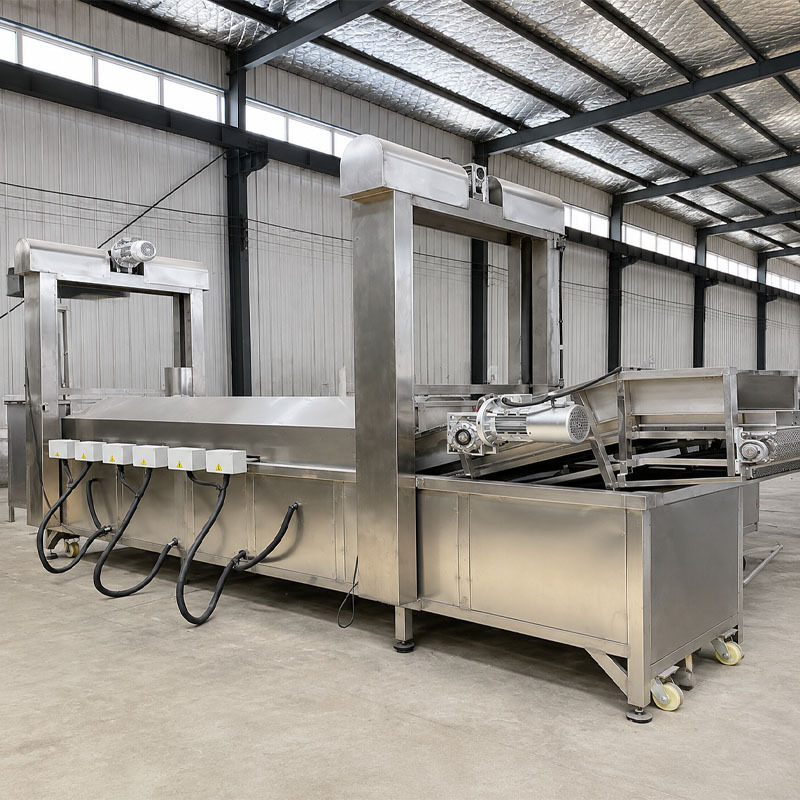

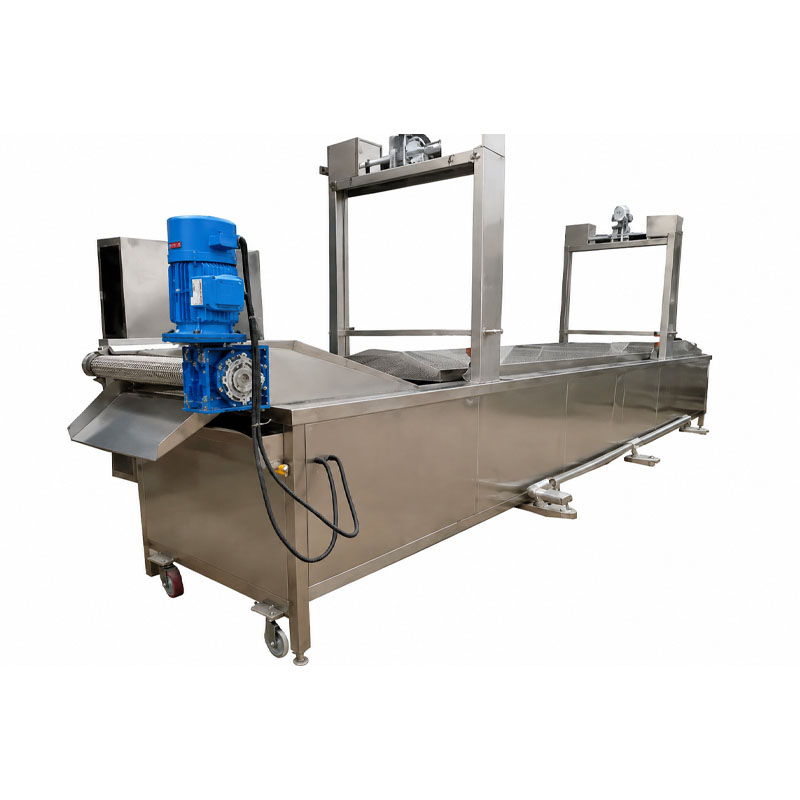

Fully Automatic Frying Machine for Puffed Snack Production

Product introduction of Fully Automatic Frying Machine

The fully automatic frying machine is an advanced frying solution designed for high-efficiency food processing. It integrates continuous conveying, frying temperature control, hot oil circulation, and automatic oil purification systems to provide consistent frying performance.

The equipment adopts an oil-water separation frying technology that helps remove food residues during operation, keeping frying oil cleaner and extending oil service life. The double-layer mesh belt design prevents floating materials from moving out of the oil surface, ensuring complete and even frying.

With adjustable conveyor speed and precise temperature control, the fryer can process different products according to specific production requirements. The stainless steel structure provides excellent durability, corrosion resistance, and easy cleaning. It is widely used for frying puffed snacks, potato chips, nuts, meat products, seafood, bean products, and other food materials.

Working Principle

The fully automatic continuous frying machine uses a circulating oil heating system to provide stable frying temperatures. Food products are continuously transported through the frying chamber by a mesh conveyor belt, where they are evenly heated and fried.

During the frying process, the oil-water separation structure allows food residues to move downward into the water layer instead of remaining in the frying oil. This helps maintain cleaner oil conditions and improves frying quality.

The automatic temperature control system regulates oil temperature according to product requirements, while the adjustable conveyor speed controls frying time. After frying, products are continuously discharged through the conveyor system, enabling efficient and stable production.

System Structure

Conveyor System

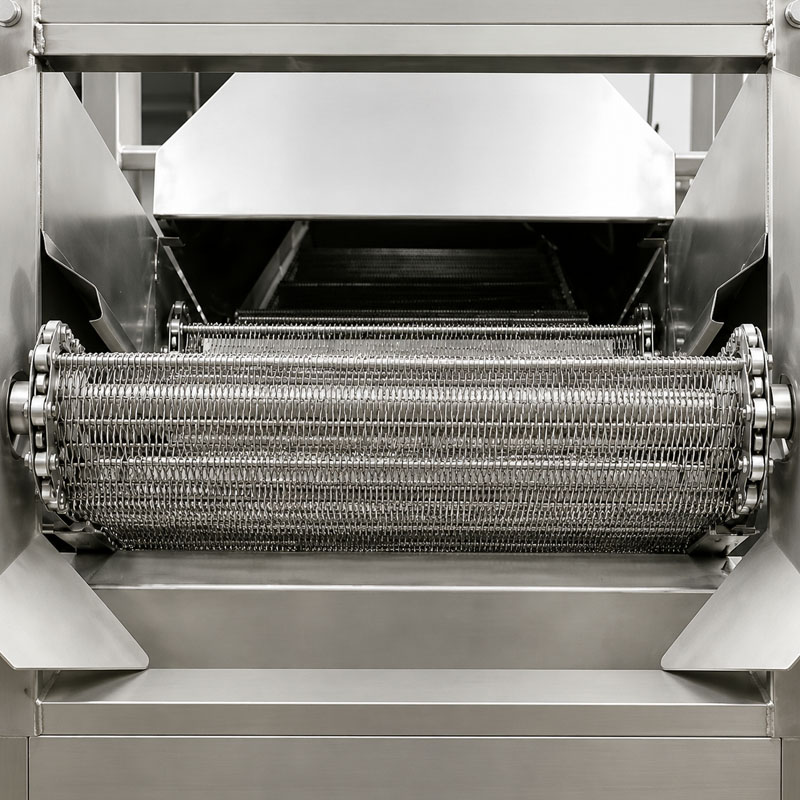

The mesh belt conveyor transports products through the frying chamber and allows adjustment of processing speed.

Frying Chamber

The frying chamber provides a stable heating environment for continuous food frying operations.

Oil Circulation System

The hot oil circulation system maintains consistent temperature distribution and improves frying efficiency.

Oil Purification System

The filtration system removes food particles and impurities to maintain cleaner frying oil.

Oil-Water Separation Unit

The separation structure collects residues in the water layer and reduces oil contamination.

Temperature Control System

The automatic control unit monitors and adjusts frying temperature for stable product quality.

Heating System

The heating system supplies thermal energy through customized heating methods according to production needs.

Product Parameter Table

Parameter	Specification
Frying Belt Width	600–1500 mm
Frying Belt Length	2000–8000 mm
Frying Temperature	0–230℃ adjustable
Heating Method	Electric / Gas / Diesel
Conveyor Speed	Adjustable
Control System	Automatic control
Material	Food grade stainless steel
Frying System	Continuous oil frying system

Key Features

• automatic oil purification system reduces residue accumulation during frying operation
• oil water separation technology improves frying oil utilization efficiency significantly
• double layer mesh belt ensures complete and uniform product frying results
• adjustable conveyor speed adapts to different food processing requirements
• automatic temperature control maintains stable frying conditions continuously
• stainless steel structure provides durability and easy cleaning performance
• integrated frying stirring and filtering functions reduce manual operation requirements
• continuous conveying system improves production efficiency for industrial processing
• separated mesh belt design allows convenient cleaning and maintenance
• flexible heating options support different production environments and energy sources

Applications

Puffed Snack Frying

The fryer provides stable frying conditions for puffed snacks, improving texture, color, and product consistency.

Potato Chip Processing

It ensures continuous frying performance for potato chips with adjustable temperature and conveyor speed control.

Nut Frying

The equipment supports uniform frying of peanuts, broad beans, and other nut products while maintaining product quality.

Meat Product Frying

It is suitable for frying chicken nuggets, chicken fillets, chicken wings, and other processed meat products.

Seafood Frying

The fryer can process seafood products such as fish pieces with controlled frying conditions.

Bean Product Processing

It provides efficient frying solutions for bean curd products and other plant-based snacks.

Pastry and Snack Processing

The machine supports frying applications for rice crust, dough products, and sweet snacks.

Advantages

Extended Oil Service Life

The oil purification and separation system helps reduce oil degradation and improves utilization.

Consistent Frying Quality

Stable temperature control and uniform oil circulation ensure reliable product results.

Higher Production Efficiency

Continuous operation reduces manual handling and improves overall processing capacity.

Easy Cleaning and Maintenance

The detachable conveyor structure allows convenient cleaning after production.

Wide Product Compatibility

The fryer can process various food materials by adjusting frying parameters.

FAQ

1. What products can be processed by the continuous frying machine?

The machine is suitable for frying a wide range of products, including puffed snacks, potato chips, peanuts, beans, chicken products, seafood, rice crust, dough snacks, and other fried foods.

2. How does the oil-water separation system work?

The oil-water separation design allows food residues and impurities to move into the lower water layer during frying, helping keep the frying oil cleaner and extending oil service life.

3. Can the frying temperature be automatically controlled?

Yes. The automatic temperature control system allows precise adjustment of frying temperature according to different products, helping maintain consistent frying quality.

4. How does the double-layer mesh belt improve frying results?

The double-layer mesh belt keeps products fully immersed during frying, preventing floating materials from remaining above the oil surface and ensuring more uniform cooking.

5. What are the advantages of continuous frying compared with batch frying?

Continuous frying provides stable production capacity, reduces manual operation, improves processing efficiency, and helps maintain consistent product quality throughout production.

6. Is the frying oil easy to maintain during operation?

Yes. The integrated oil filtration and purification system continuously removes food residues, reducing oil contamination and improving oil utilization efficiency.

7. What heating methods are available for this fryer?

The equipment can be configured with different heating methods, such as electric heating, gas heating, or other customized heating systems according to production requirements.

8. Can the conveyor speed be adjusted?

Yes. The conveyor speed can be adjusted according to product type, frying temperature, and required frying time to achieve the desired processing results.

9. Is the continuous frying machine easy to clean?

Yes. The mesh belt conveyor system can be separated from the main machine, making cleaning and routine maintenance more convenient.

10. What material is used for the frying machine?

The equipment is manufactured with food-grade stainless steel, providing good corrosion resistance, durability, and easy cleaning for food processing applications.
