Technical Parameters of the Emergency Shower Eyewash System
| Inlet Size | 1-1/4″ internal thread; |
| Outlet Size | 1-1/4″ internal thread; |
| Eye/face wash flow rate | ≥12 L/MIN; |
| Shower flow rate | ≥76L/MIN; |
| Duration time | >15min; |
| Nominal pressure | 1.0 Mpa; |
| Working pressure | 0.2~0.4 Mpa; |
| Eye Wash Basin Diameter | 250mm(9.84″). |

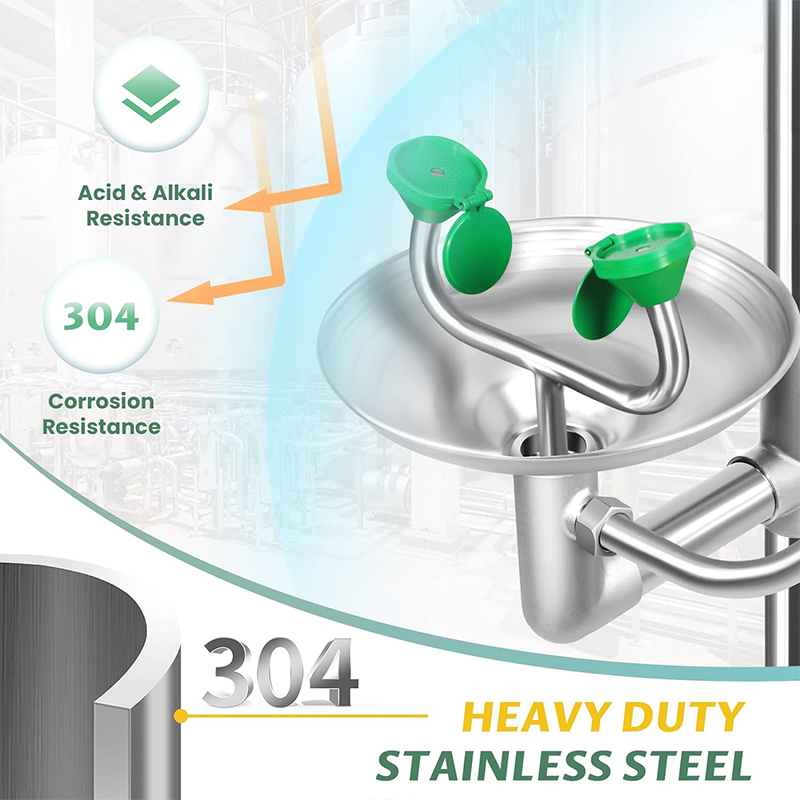

| Material | The whole is made of heavy duty 304 stainless steel. |


Features
- The whole is made of heavy duty 304 stainless steel. Durable, sturdy, not easy rusty. Corrosion resistant, acid and alkali resistant.
- Polished surface is treated with a special process to be smooth and free of burrs, without injuring your hands during installation. Aesthetic and easy to clean.
- Large diameter shower basin. Dispersed water spray effectively expands spraying range by 20%, covers a circular area of at least 510 mm diameter.


- Regulating valve of eyewash nozzle can adjust water pressure. Double-layer filter screen makes the water column cleaner and gentler without hurting the eyes.
- Integrated dust cover is not easy to lose. It can keep the nozzle clean & prevent blockage.
- The pull ring controls the shower system switch, pull down to open, push up to close.
- The hand push plate controls the eyewash nozzle switch, clockwise to open, counterclockwise to close.


- Hands-free eyewash. Easy to use. Quick start in 1 sec. Easy to install and clean.
