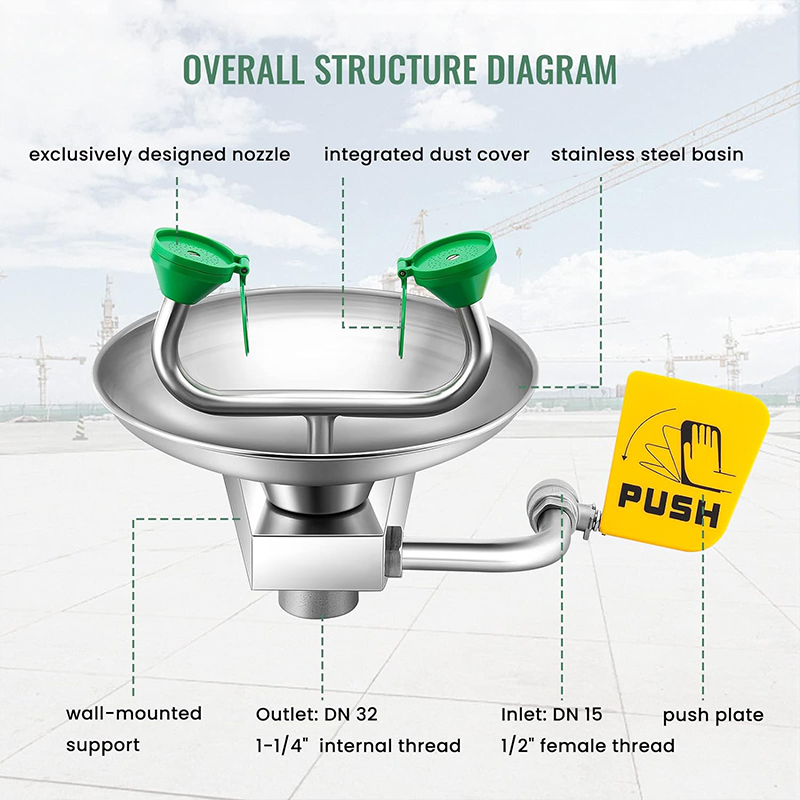

Technical Parameters of the Wall Mounted Eye Wash Station
| Inlet Size | 1/2″ female thread(DN15) |
| Outlet Size | 1-1/4″ internal thread(DN 32) |
| Eye wash flow rate | ≥12 L/MIN |
| Duration time | >15min |
| Nominal pressure | 1.0 Mpa |
| Working pressure | 0.2~0.4 Mpa |
| Diameter of eye wash basin | 250mm(9.84″) |
| Application Scenes | Applicable for narrow spaces, easy and quick to install |


Features
- Each exclusive designed nozzle has 81 outlet holes. Water column is gathered, no splash. The cleaning efficiency is increased by 50%.
- Built-in decompression sponge effectively reduces water pressure. The Gentle water flow will not hurt the eyes.


- Eye wash basin is made of heavy duty stainless steel with curled rim. Durable, sturdy, not easy rusty.


- The polished surface is aesthetic and easy to clean. 250mm diameter larger basin can better collect water & keep ground clean.
- 1 push to open. No need to press it all the time.
- Hands-Free Operation can prevent hands from polluting eyes again, resulting in secondary eye injury.
- Integrated dust cover is not easy to lose. It will automatically open when water comes. The dust cover can keep the nozzle clean & prevent blockage.
- Eye-catching eye wash sign for people to find the location of eye wash station quickly.

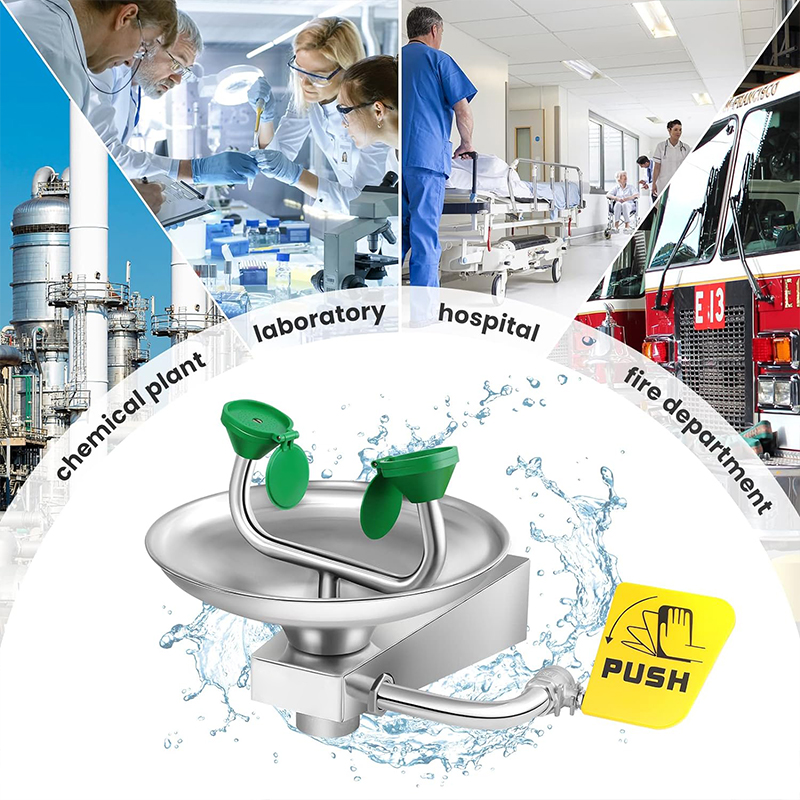

- Applicable for petrochemical plant, steel plant, hospital, research laboratory, school, environmental purification plant, gas station, fire station and anywhere emergency eye wash equipment is required due to hazardous chemicals.
