Pressure Transmitters

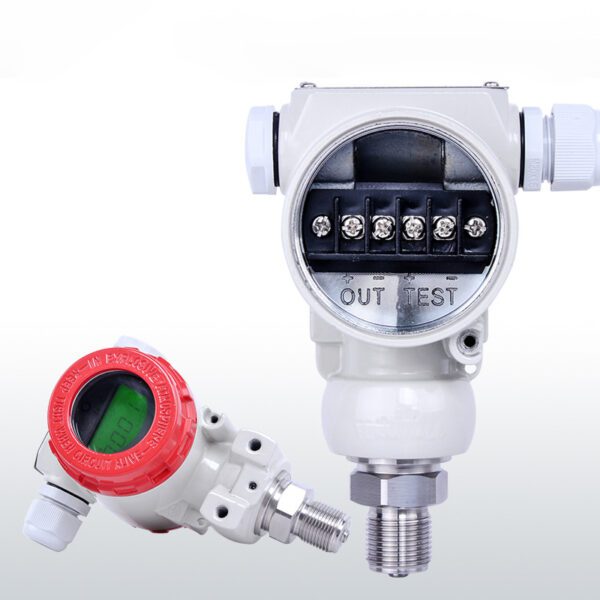

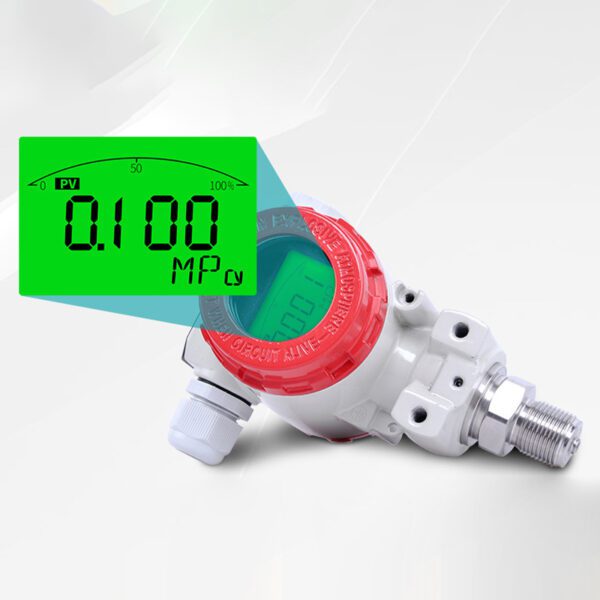

Digital Display Pressure Transmitter Intelligent High Temperature High Precision 5% Diffused Silicon Pressure Transducer 4-20mA
- The pressure transmitter has IP65 high protective housing, which is not afraid of harsh sites. Not afraid of dust intrusion, low pressure spray at any Angle has no effect.
- The pressure transmitter is paired with the pressure recorder to record the trend of the field pressure data in real time and easily analyze the field production status.
- The pressure transmitter is combined with the steam flow meter to accurately measure the pressure change in the pipeline for accurate steam flow measurement.
NOTE: Prices may vary by product model and material.
$146.00
CompareFeatures of Shell Pressure Transmitter
- The pressure transmitter has IP65 high protective housing, which is not afraid of harsh sites. Not afraid of dust intrusion, low pressure spray at any Angle has no effect.
- The pressure transmitter is shock-resistant.
- The pressure transmitter ensures long-term use and still high accuracy.
- Pressure transmitter from German technology, high quality pressure monitoring experience.
| Product Name | Shell Pressure Transmitter |
| Power supply | 12-36V wide voltage power supply |
| Pressure type | Gauge pressure, absolute pressure, sealed gauge pressure |
| Measuring medium | Steam, liquid, oil (do not use for the measurement of flammable and explosive media) |
| Signal output | 4-20mA, RS485 |
| Accuracy level | 0.5% (default), 0.3% (need to be customized), 0.1% (need to be customized) |
| Thermal zero drift | 0.03%FS/ºC |
| Thermal Sensitivity Drift | 0.03%FS/ºC |
| Overload range | 1.5 times of full range |
| Working temperature | -10～70ºC |
| Protection class | IP65 |
Related products
-
Pressure Transmitters
Pressure Transmitter Single Crystal Silicon Transducer 4-20mA Differential Pressure Transducer Vapor Gas Liquid Pressure Transmitter
Pressure TransmittersPressure Transmitter Single Crystal Silicon Transducer 4-20mA Differential Pressure Transducer Vapor Gas Liquid Pressure Transmitter
- IP67 protection rating.
- 7.5 parts per 10,000 precision.
- Long-term stability guaranteed.
- Fully isolated circuit design.
NOTE: Prices may vary by product model and material.
SKU: n/a -
Pressure Transmitters
0-2Mpa Pressure Sensor Single Flange Single Crystal Silicon Remote 4-20mA Diaphragm Intelligent Differential Pressure Transmitter
Pressure Transmitters0-2Mpa Pressure Sensor Single Flange Single Crystal Silicon Remote 4-20mA Diaphragm Intelligent Differential Pressure Transmitter
- Reinforced shell: has good corrosion resistance and wear resistance.
- High precision: high linear stability and strong anti-interference.
- Wide range of applications: steam/gas/liquid absolute pressure/gauge pressure/differential pressure can be measured.
- Simple structure: it is suitable for various working conditions and can maintain accurate measurement at all times.
NOTE: Prices may vary by product model and material.
SKU: n/a -
Pressure Transmitters
Pressure Transmitter 4-20mA Normal Temperature Type Pressure Transmitter Pressure Transducer Digital Display Hydraulic Pressure Transducer
Pressure TransmittersPressure Transmitter 4-20mA Normal Temperature Type Pressure Transmitter Pressure Transducer Digital Display Hydraulic Pressure Transducer
- The diffused silicon pressure core with high accuracy and stability is adopted. The stability is less than 1/1000 FS/year, realizing accurate pressure measurement.
- Adopt 316L stainless steel diaphragm and full 316 stainless steel shell. Standard 316L stainless steel, compatible with a variety of liquids and gases.
- The output is stable and the accuracy is high. Low voltage power supply and low power consumption, the digital output can be powered by 3.6V or 5V. 4-20mA can be powered by 7V.
- Wide working temperature range, -30~125ºC working temperature range.
NOTE: Prices may vary by product model and material.
SKU: n/a -
Pressure Transmitters
Pressure Transmitter 4-20mA Output G1/4″ Silicon Pressure Transmitter Transducer for Water Gas Oil Diffused Silicon Pressure Transmitter
Pressure TransmittersPressure Transmitter 4-20mA Output G1/4″ Silicon Pressure Transmitter Transducer for Water Gas Oil Diffused Silicon Pressure Transmitter
- Upgraded protective connectors, flame retardant and pressure resistant, IP65 waterproof and dustproof.
- Corrosion-resistant stainless steel shell, high toughness, high fatigue strength.
- High-standard pressure-resistant structure design, 150% FS overload pressure, longer life.
- The whole machine has passed the electromagnetic compatibility test.
- The material is anti-interference and aging-resistant, and a 2-meter lead wire (customizable extension) is provided for free.
NOTE: Prices may vary by product model and material.
SKU: n/a
