Pressure Transmitters

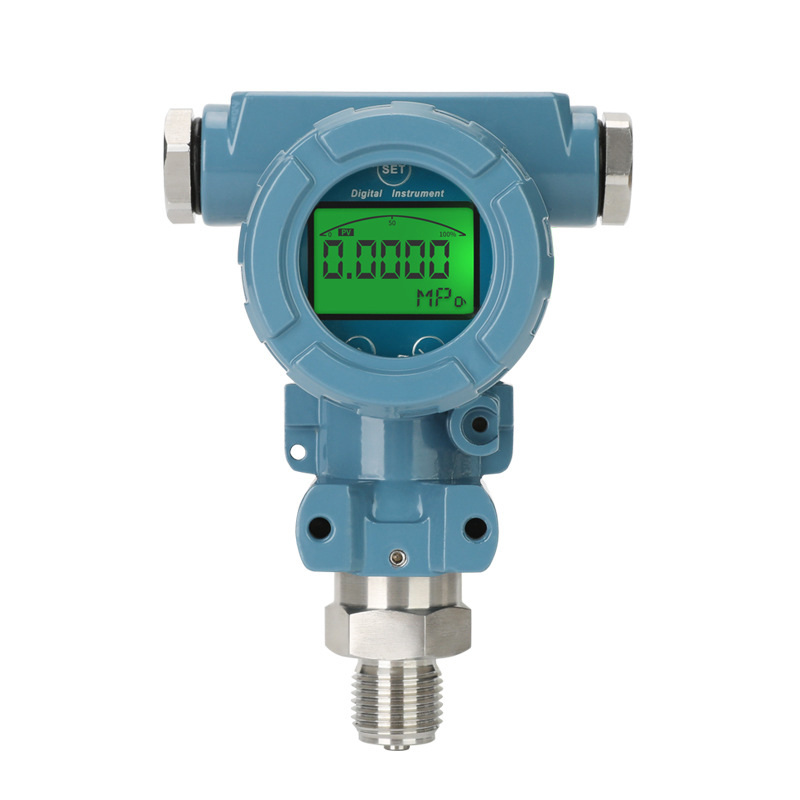

Explosion Proof Pressure Transmitter High-Precision Pressure Transmitter for Brewing Industry Constant Pressure Water Supply
- High-strength explosion-proof: aluminum shell/stainless steel joint, thick material, protected in many ways.
- LCD liquid product display, intuitive display at a glance.
- High-quality tempered glass for both protection and observation.
- The fuselage is sprayed to improve product durability.
- Exquisite thread interface: Standard thread is finely ground, tightly connected, and safer to use.
NOTE: Prices may vary by product model and material.
$145.00
This explosion-proof pressure transmitter is suitable for various industries, such as constant pressure water supply, natural gas pipeline, food production, brewing industry, medical and health industry, etc.
| Range | -100KPA…0～10KPA…60MPA | |||
| Overload pressure | 1.5 times the rated pressure | |||
| Accuracy | ±0.5%F.S | |||
| Stability | <0.5%F.S | |||
| Working temperature | -20～+80°C | |||
| Storage temperature | -40～+100°C | |||
| Measured medium | Gas or liquid compatible with 304 and 316L stainless steel, fluorine rubber or nitrile rubber | |||
| Electrical performance | Two-wire | Two-wire | Three-wire | Four-wire |
| Output signal | 4-20mA | 4-20mA+HART | 0-10DC | RS485 |
| Power supply | 10-36VDC | 10-36VDC | 14-36VDC | 10-36VDC |
| Electrical connection | Electrical connection: waterproof outlet | |||
| Shell protection grade | IP67 | |||
| Pressure port | M20*1.5, G1/2 | |||
| Pressure form | Gauge pressure G/absolute pressure A | |||
| Certification items | Safety explosion-proof type E, EU electrical safety standard CE | |||
