Pressure Transmitters

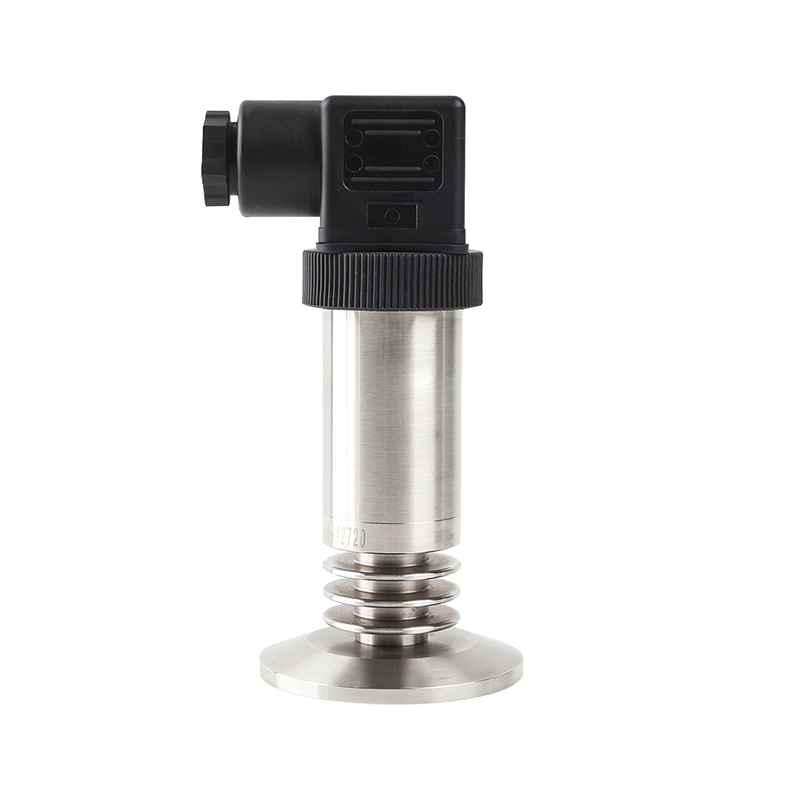

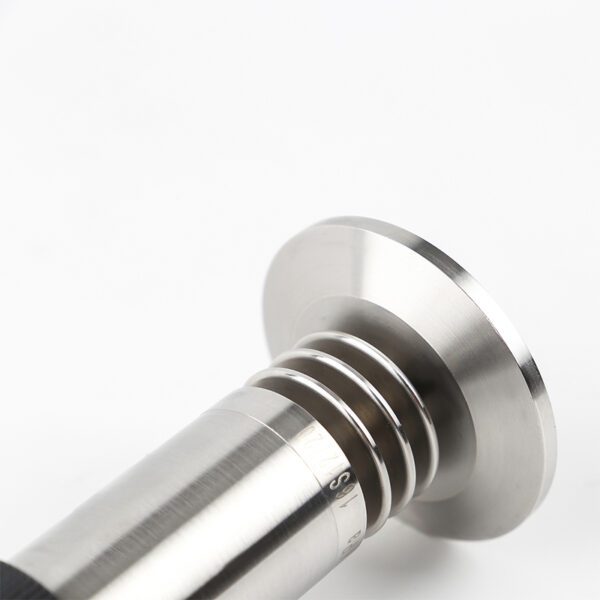

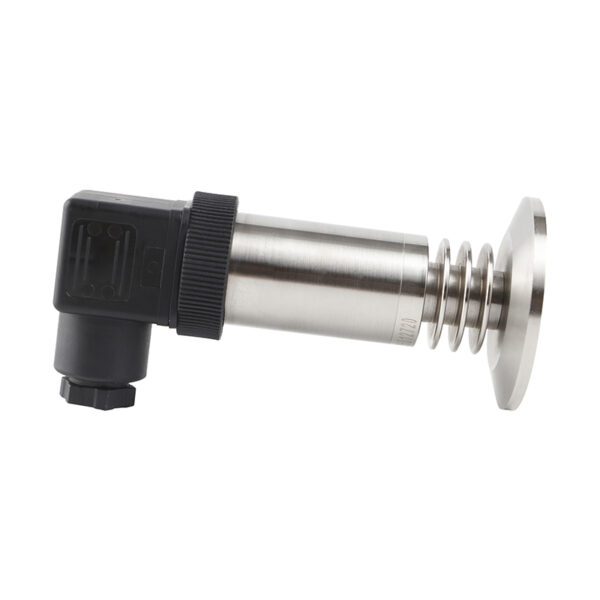

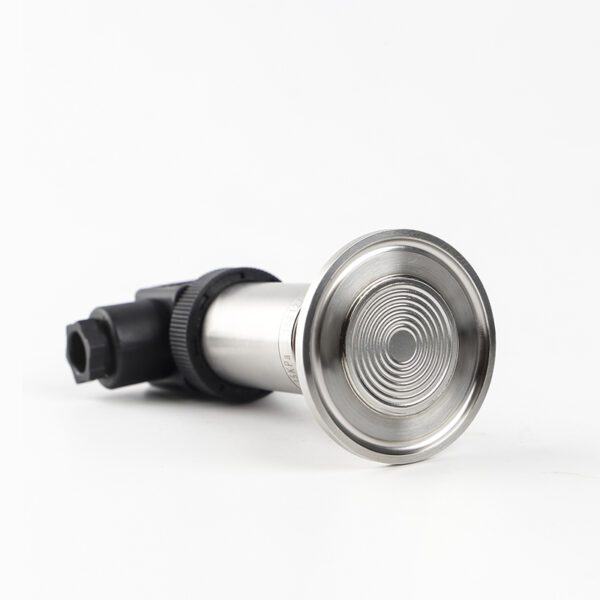

Pressure Transmitter Sanitary Atmospheric Pressure Transmitter 4-20mA Vacuum Pressure Transducer Oil Pressure Transducer
- Adopt 316L stainless steel diaphragm and full 316 stainless steel shell. Standard 316L stainless steel, compatible with a variety of liquids and gases.
- The output is stable and the accuracy is high. Low voltage power supply and low power consumption, the digital output can be powered by 3.6V or 5V. 4-20mA can be powered by 7V.
- Wide working temperature range, -30~125ºC working temperature range.
- Wide range of applications: Different accessories can be used to perform functions for different tasks, which can effectively improve work efficiency and completion results.
NOTE: Prices may vary by product model and material.
$113.00
CompareApplicable scope of Pressure Transmitter
- Normal temperature type: measurement of medium below 80°C
- High temperature type: the medium temperature is above 80°C for a long time
- Hygienic type: hygienic type or suspending viscous medium
The measured pressure ranges from vacuum to 60MPA. You can choose the appropriate range according to the actual pressure on site.
- -100KPa～0: vacuum pressure
- 0～100KPa: air pressure test
- 100KPa～2.5MPa: water supply pressure
- 2.5MPa～10MPa: hydraulic oil
- 10MPa～60MPa: large range hydraulic pressure
| Measuring range | -1～0～1.6….1000bar |
| Pressure form | Gauge pressure/negative pressure |
| Medium temperature | -20°C～85°C (standard) -20°C～150°C (high temperature) |
| Signal output | 4～20mA/1～5V (two-wire system), RS485 communication interface (Modbus), HART communication |
| Repeatability | 5‰F.S; 2.5‰F.S; 1‰F.S |
| Accuracy | 5‰F.S; 2.5‰F.S; 1‰F.S |
| Stability | ≤1‰F.S/year |
| Process connection | Stainless steel, threaded or other |
| Supply voltage | 12…30V DC |
| Response time | ＜1ms |
| Overload capacity | 2000‰ |
| Diaphragm material | 316L |
| Protection class | IP65 |
| Ambient temperature | -20°C～85°C |
| Ambient humidity | 50‰～950‰ |
Based on 0 reviews
Be the first to review “Pressure Transmitter Sanitary Atmospheric Pressure Transmitter 4-20mA Vacuum Pressure Transducer Oil Pressure Transducer”
