6 Head Cosmetic Filling Machine for Liquid and Paste

Cosmetic Filling Machine Product Introduction

6 Head Cosmetic Filling Machine for Liquid and Paste is an automatic spout pouch filling and capping system designed for efficient packaging of cosmetic and personal care products. The machine integrates pouch feeding, positioning, filling, cap feeding, capping and output processes into one complete automated system.

Equipped with six filling heads, the machine provides high production efficiency while maintaining accurate filling volume and stable packaging quality. The advanced filling system supports different liquid and paste materials, including creams, lotions, gels, shampoos, detergents and other viscous products.

The equipment adopts stainless steel construction, intelligent control system and precision filling technology to ensure hygienic operation and reliable performance. It is widely used in cosmetic factories, personal care product manufacturers and flexible packaging production lines. The machine can be customized according to filling volume, pouch size, product viscosity and production requirements.

Industry Pain Points

Cosmetic and personal care manufacturers require faster packaging speed, accurate filling volume and hygienic production. Traditional manual filling processes often suffer from low efficiency, inconsistent filling accuracy and higher labor costs.

Our Solution

The 6 Head Cosmetic Filling Machine provides an automated packaging solution with multi-head filling technology, precise dosing control and integrated pouch handling. It improves production efficiency, reduces manual operation and ensures consistent product quality for liquid and paste packaging.

Filling System Details

The machine adopts a precision piston filling system suitable for liquid and paste materials with different viscosities. The filling volume can be adjusted according to product requirements, ensuring stable filling accuracy and reducing material loss.

The filling nozzles are designed to minimize dripping and maintain a clean production environment.

Working Principle

Pouch Loading

Empty spout pouches are automatically supplied and positioned accurately at the filling station.

Product Filling

The filling system dispenses liquid or paste materials into each pouch through six filling nozzles with precise volume control.

Cap Feeding

Caps are automatically delivered and aligned with the pouch spouts.

Cap Capping

The capping mechanism tightens the caps securely to ensure reliable sealing.

Inspection and Transfer

Finished products are checked and transferred through the conveyor system.

Final Packaging

The filled and sealed pouches are collected for storage, transportation or further packaging.

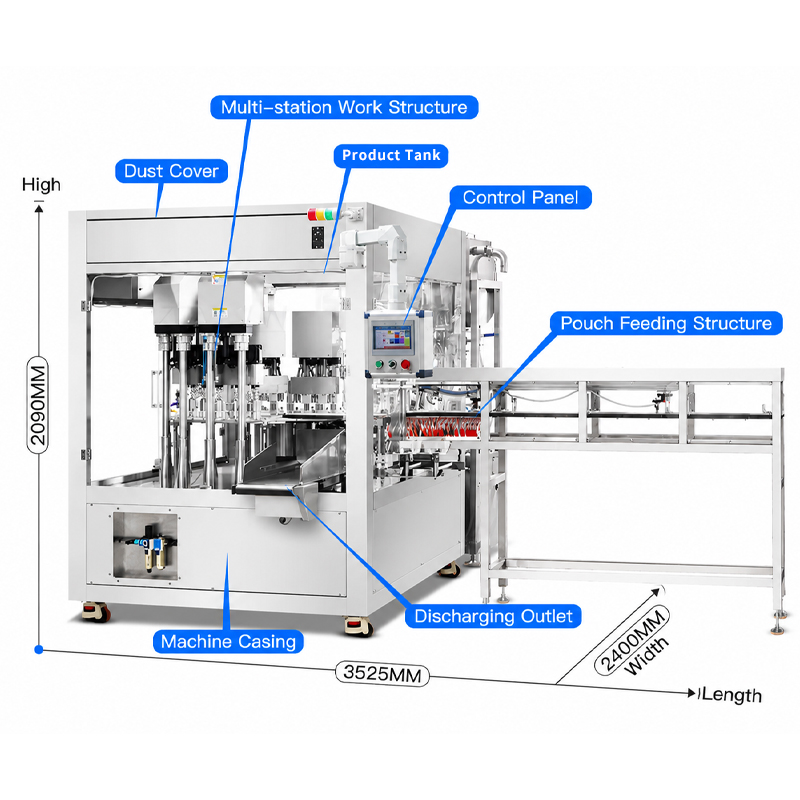

Product Structure

Pouch Feeding System

Automatically transfers empty spout pouches to the filling station, improving production efficiency and reducing manual handling.

Filling System

Six independent filling heads provide accurate and stable filling performance for liquid and paste products.

Cap Feeding System

Automatically supplies caps and positions them correctly for continuous production.

Capping System

The automatic capping unit ensures secure sealing and prevents leakage during transportation.

Control System

The intelligent control panel allows operators to adjust filling parameters and monitor machine operation easily.

Output Conveyor System

The finished pouches are automatically transferred for packaging or further processing.



Key Features & Advantages

Equipped with six filling heads, the machine improves production efficiency and is suitable for high-volume liquid and paste packaging operations.

Automatic pouch feeding, filling, cap feeding and capping processes reduce manual operation and ensure stable continuous production.

High-precision filling system provides accurate filling volume control, minimizes material waste and improves product consistency.

Suitable for various liquid and viscous products, including creams, lotions, gels, shampoos, serums and other cosmetic materials.

Made of high-quality stainless steel with a hygienic design, meeting the requirements of cosmetic and clean production environments.

Intelligent PLC control system with touch screen operation makes parameter adjustment simple and improves machine management efficiency.

Advanced positioning and sealing technology ensures reliable pouch sealing performance and reduces leakage risks during transportation.

Flexible configuration options allow customization according to pouch size, filling volume, product characteristics and production capacity requirements.

Technical Parameters

Parameter	Specification
Equipment Type	Automatic Cosmetic Filling and Capping Machine
Packaging Type	Spout Pouch Filling and Capping
Applicable Products	Liquid, Cream, Paste, Gel and Viscous Materials
Filling Heads	6 Filling Nozzles
Filling Range	100–1000 ml (Customizable)
Filling Accuracy	±1%
Production Capacity	50–120 Bags/min (Depending on Filling Volume)
Filling Pump Type	Piston Pump
Hopper Capacity	120 L (Customizable)
Suitable Pouch Size	Customizable According to Requirements
Suitable Cap Diameter	Customizable According to Requirements
Frame Material	304 Stainless Steel
Product Contact Parts	316 Stainless Steel
Control System	PLC Touch Screen Control
Operation Mode	Automatic Operation
Power Supply	220V / 110V, 50–60Hz
Total Power	5 kW
Machine Dimensions	Approx. 3525 × 2400 × 2090 mm
Machine Weight	Approx. 1000 kg
Application	Cosmetic, Personal Care, Food and Liquid Paste Packaging

Application Scenarios

Cosmetic Product Packaging
Used for filling creams, lotions, serums and other cosmetic products into spout pouches.

Personal Care Product Packaging
Suitable for shampoo, shower gel, hand sanitizer and other daily care products.

Gel Product Filling
Used for packaging aloe vera gel, cleansing gel and similar viscous materials.

Liquid Detergent Packaging
Suitable for filling cleaning liquids and household chemical products.

Food Sauce Packaging
Can be used for sauces, honey, jam and other liquid food products.

Beverage Pouch Filling
Suitable for selected liquid beverage products requiring flexible packaging.

Travel Size Product Packaging
Used for small-volume cosmetic and personal care products.

Industrial Liquid Packaging
Suitable for special liquid materials requiring pouch packaging.

Industry Applications

Cosmetics Industry
Used for packaging creams, lotions, facial products and beauty products.

Personal Care Industry
Provides automated filling solutions for shampoo, shower gel and skincare products.

Food Industry
Used for filling sauces, condiments and liquid food products.

Beverage Industry
Suitable for flexible pouch packaging of liquid beverages.

Household Chemical Industry
Used for packaging detergents and cleaning products.

Pharmaceutical Industry
Can be applied to certain liquid and gel product packaging.

Daily Chemical Manufacturing Industry
Supports high-efficiency production for consumer products.

Flexible Packaging Industry
Provides automated pouch filling and sealing solutions.

FAQ

1. What products can this filling machine handle?

It can fill liquids, creams, gels and paste products such as cosmetics and personal care products.

2. How many filling heads does the machine have?

The machine is equipped with six filling heads for efficient production.

3. Can it fill high-viscosity products?

Yes, it is suitable for creams, gels and other viscous materials.

4. What type of packaging does this machine use?

It is mainly designed for spout pouch filling and capping.

5. Is the filling volume adjustable?

Yes, filling parameters can be adjusted according to product requirements.

6. Is the machine fully automatic?

Yes, it integrates pouch feeding, filling, capping and output processes.

7. What materials can be used for the machine structure?

The machine mainly uses stainless steel suitable for hygienic production environments.

8. Can the machine be customized?

Yes, customization is available according to pouch size, filling volume and product characteristics.

9. Which industries use this equipment?

It is widely used in cosmetics, personal care, food, beverage and chemical industries.

10. What is the advantage compared with manual filling?

It provides higher production speed, better filling accuracy and more stable packaging quality.
