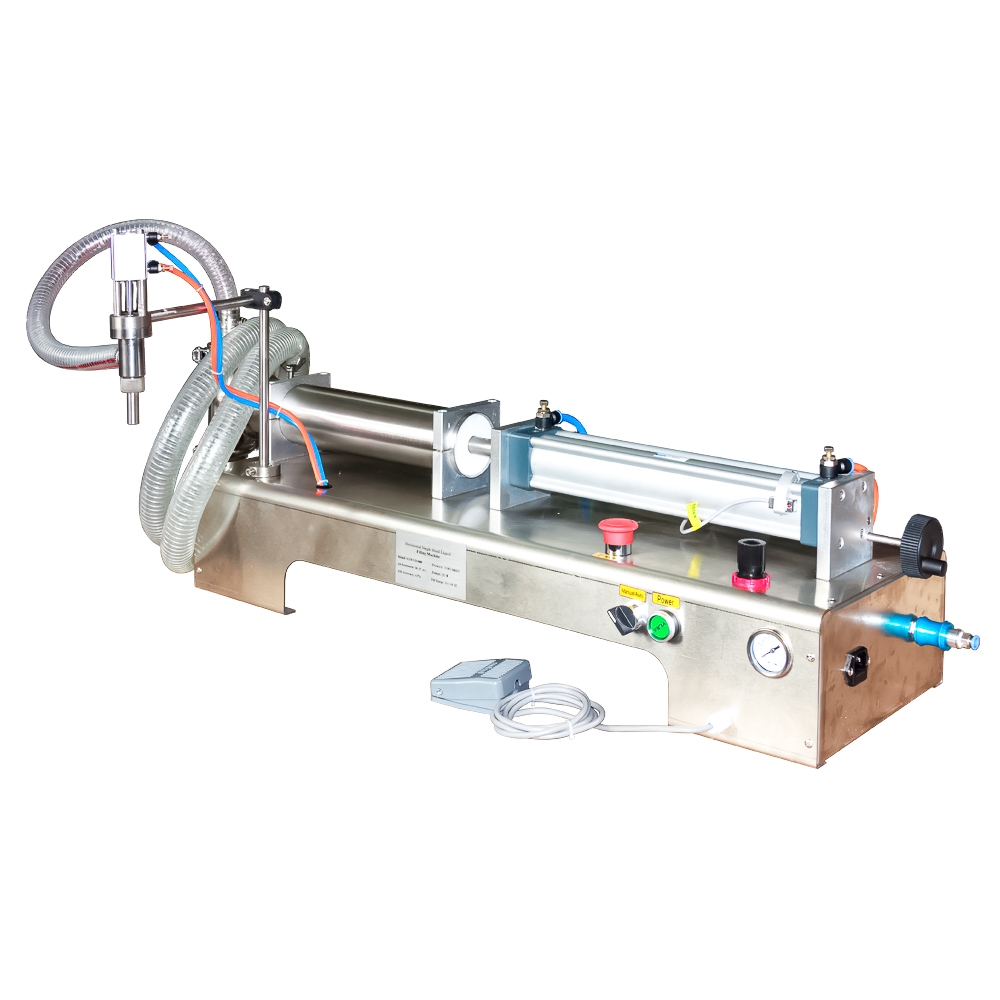

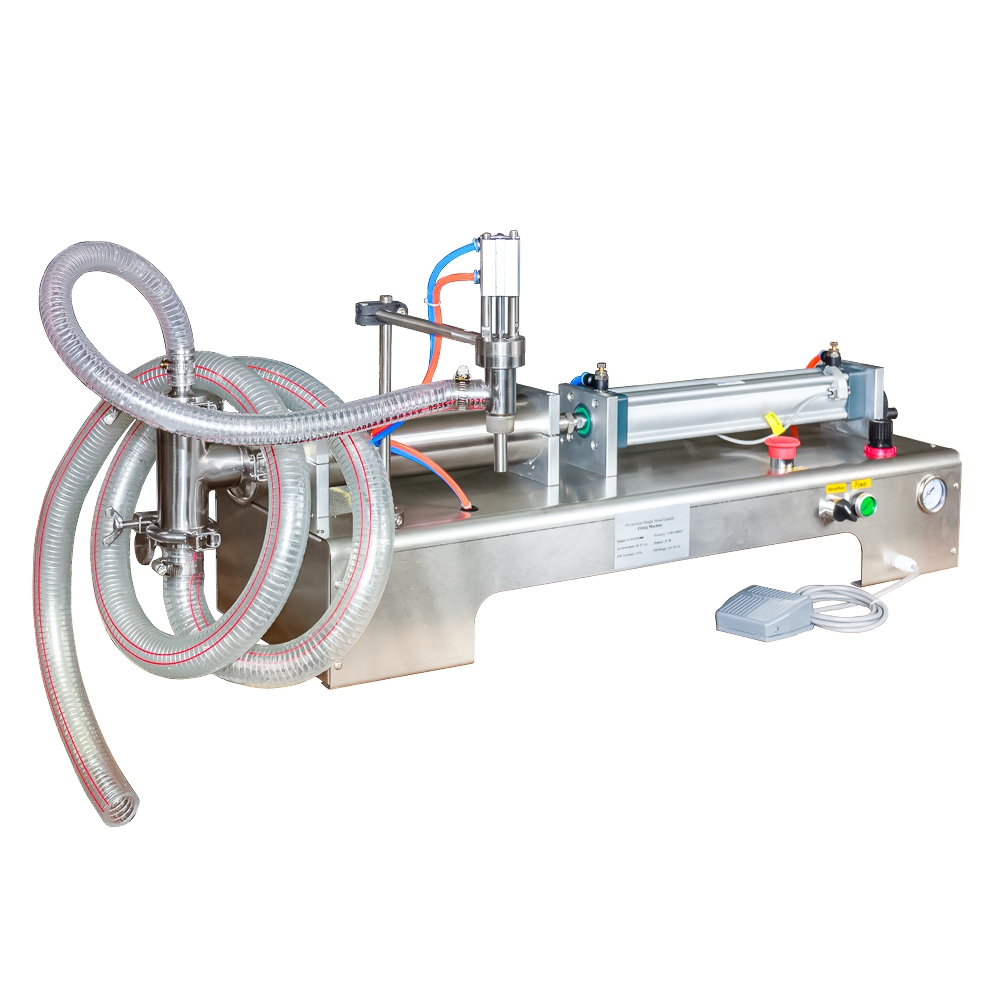

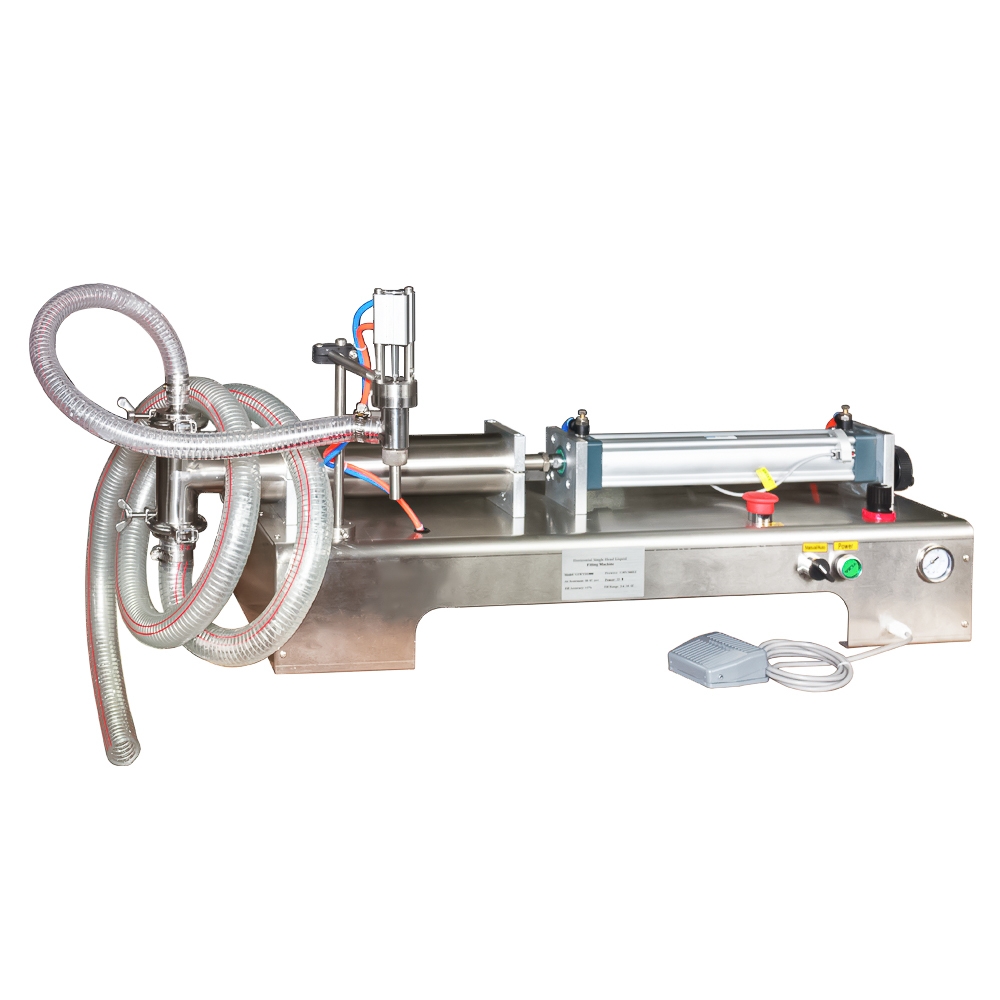

3.4-34 OZ Liquid Filling Machine Semi-Auto One-Head Filler
1. Filling Volume Range: 3.4 – 34 oz (100 -1000mL)
2. Filling Speed: Max. 30 bottles/min
3. AC Power Input: 110 ± 5V, 60Hz
4. Air Requirement: 50 – 87 psi
$560.00
CompareThis filling machine is mainly used for liquid which is of low consistence, such as water, juice, milk, etc.
In terms of the updated structure, it is easier to operate, more efficient and the accuracy is higher. And the structural features include:
1. Replaceable filler nozzle. This machine comes with a nozzle of φ12mm (15/32″), and it can be replaced to diameter of 4mm, 6mm, 8mm, 10mm, etc.

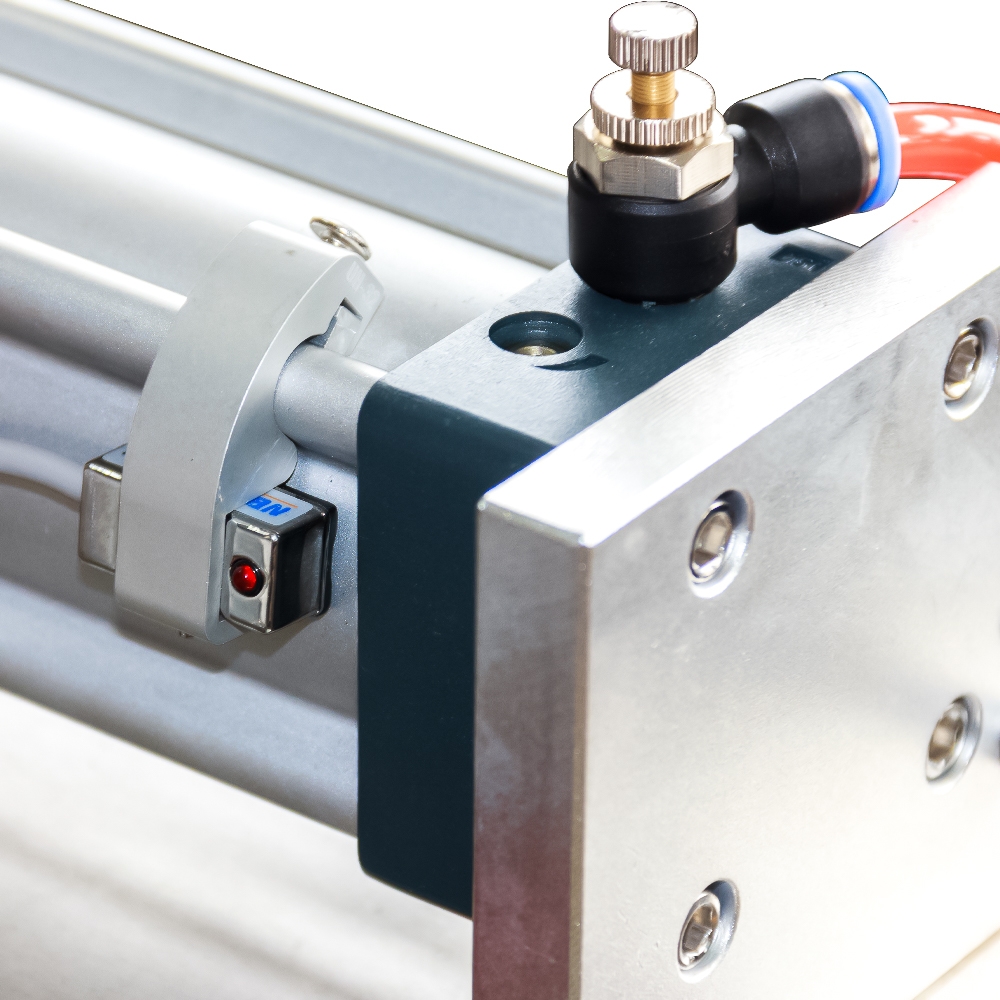

2. 3-Way control valve

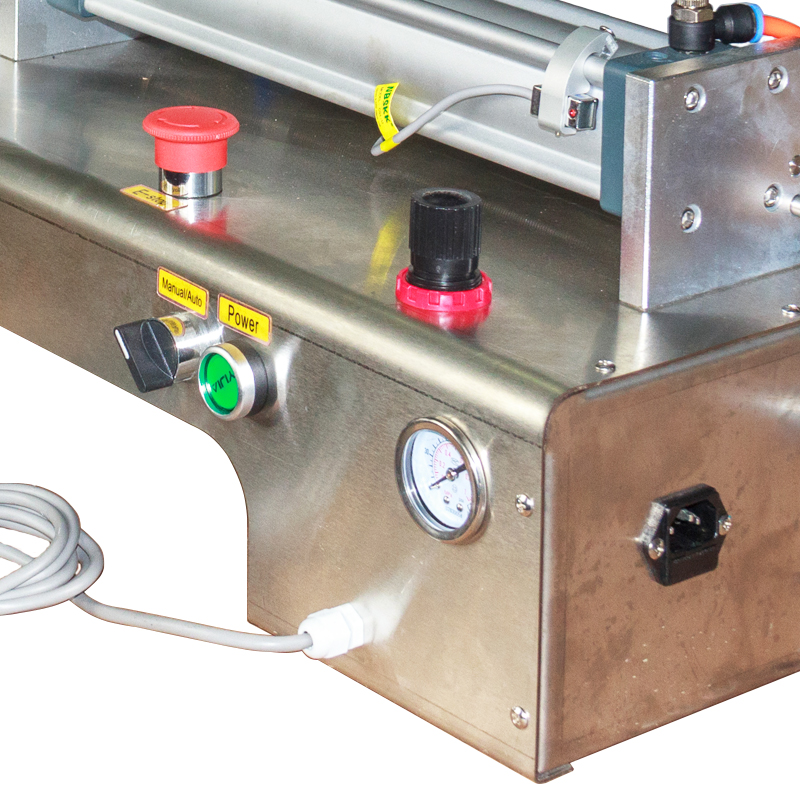

3. Various switches and pressure gauge of MPa & PSI display, which make the machine easy to operate.

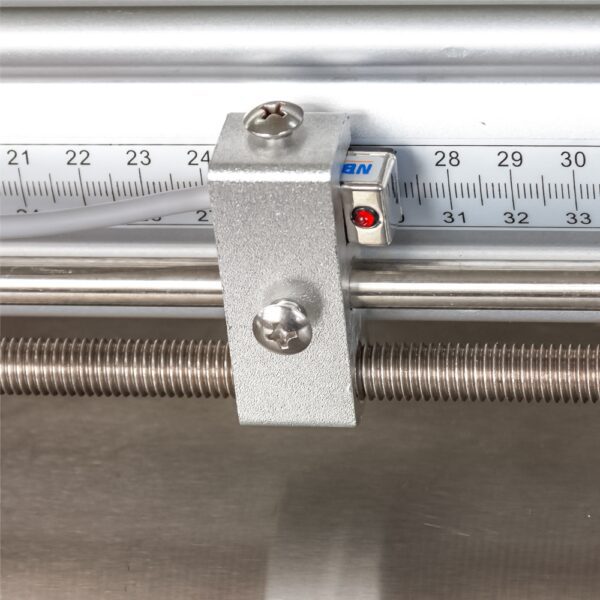

4. Scale on the feed cylinder makes the adjustment of the filling volume more convenient and accurate.
5. Foot pedal makes the operation faster and more convenient.
Product Information
Technical Details
| Filling Volume Range | 100 – 1000 mL (3.4 – 34 oz) |
| Filling Head | Single Head |
| Filling Speed | Max. 30 Bottles/min |
| Filling Accuracy | ± 1% |
| Filling Nozzle Diameter | 12 mm (15/32″) |
| Power | 20W (0.027 HP) |
| Power Supply | AC 110 ± 5V, 60Hz |
| Air Requirement | 58 – 87 psi (0.4 – 0.6 MPa) |
| Inline Air Hose | 8 mm (5/16″) |
| Application Temperature | Max. 122℉ (50℃) |
| Packing Size | 45″ × 15″ × 15″ (1150 × 390 × 390 mm) |
| Packing Weight | 53 lb (24 kg) |
Additional Information
The packaging list of this machine is as follows:
| NO. | ITEMS | UNIT | QTY. |
| 1 | Main Machine | Set | 1 |
| 2 | Instructions | Copy | 1 |
| 3 | Packing List | Copy | 1 |
| 4 | Receiving Apron | Copy | 1 |
| 5 | Product Certificate | Copy | 1 |
| 6 | Rings (Model: O or XY. Specifications depending on different models) | Set | 1 |
| 7 | 3-Way Valve Ring (Specifications depending on different models) | Set | 1 |
| 8 | Inner Hexagonal Spanner (1.5, 2, 2.5, 3, 4, 5) | Set | 1 |
| 9 | Screw Driver “+” (Ordinary) | Piece | 1 |
| 10 | Screw Driver “-” (Ordinary) | Piece | 1 |
