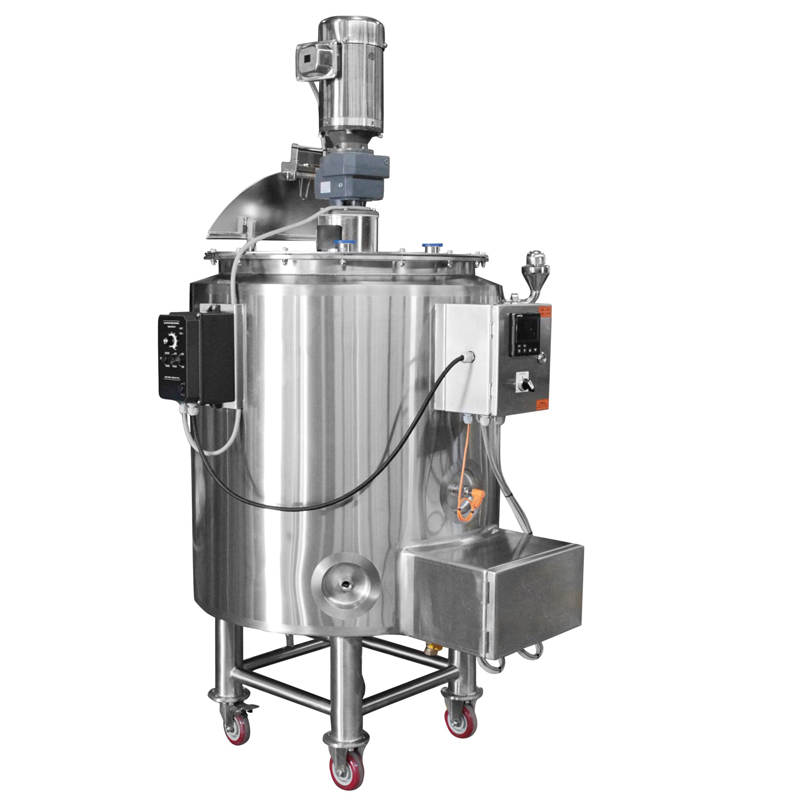

30 Gallon Self Heating Jacketed Mixing Tank liquid mixing tank United States
- Stainless Steel 304 construction
- Workable Volume: 30 Gallons
- Heating Oil jacket for heating with insulated stainless cladding.
$9,432.00
CompareMain Features of 30 Gallon Heated Mixing Tank:
- Stainless Steel 304 construction
- Workable Volume: 30 Gallons
- Heating Oil jacket for heating with insulated stainless cladding.
- Heating Oil jacket has a vent to the atmosphere; holds NO pressure.
- 14 gallons – 15 gallons of heating oil is recommended. Heating oil level visible through glass sigh glass
- Include one 5KW Screw-Plug Immersion heater with an adjustable thermostat. 208v, 3phase. CSA Certified; UL 574; UL Recognized Component. Heaters with an adjustable thermostat automatically turn on when the temperature drops below the set temperature and off when it rises above the set temperature. Adjust the set temperature with the dial. Estimated 2 hr to boil for the full volume of 30-gallon water.
- Include temperature gauge threaded in sanitary thermowell ( No direct contact with the product in the vessel. )
- The vessel interior holds NO pressure.
- Dimension : 26″ L x 26 ” W x 69″ H
- 1.5″ tri-clamp outlet with sanitary butterfly valve.
- Top 2 x 1.5″ tri-clamp port.

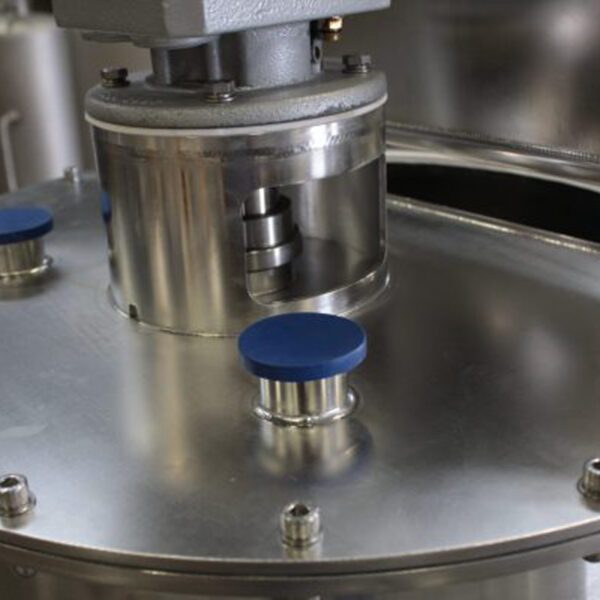

- Top spring-loaded hinged lid, with a locking mechanism in vertical holding position.
- The tank inner side is electropolished to 0.8µm( RA32 uin, #4 food-grade finish) sanitary finish.
- 1 HP stainless Lesson motor, 5:1 speed reduction gearbox.
- 110v input, integrated Variable frequency speed control, 0 -350 RPM adjustable.
- (2) 6″ OD marine propellers.
- Power:
- Low Voltage 208V: (1) 110 Vac Plug, 28.2 Amp Total
- High Voltage 480V: (1) 120 Vac Plug, 4.2 Amp + (1) 480 Vac Plug, 12.4 Amp
