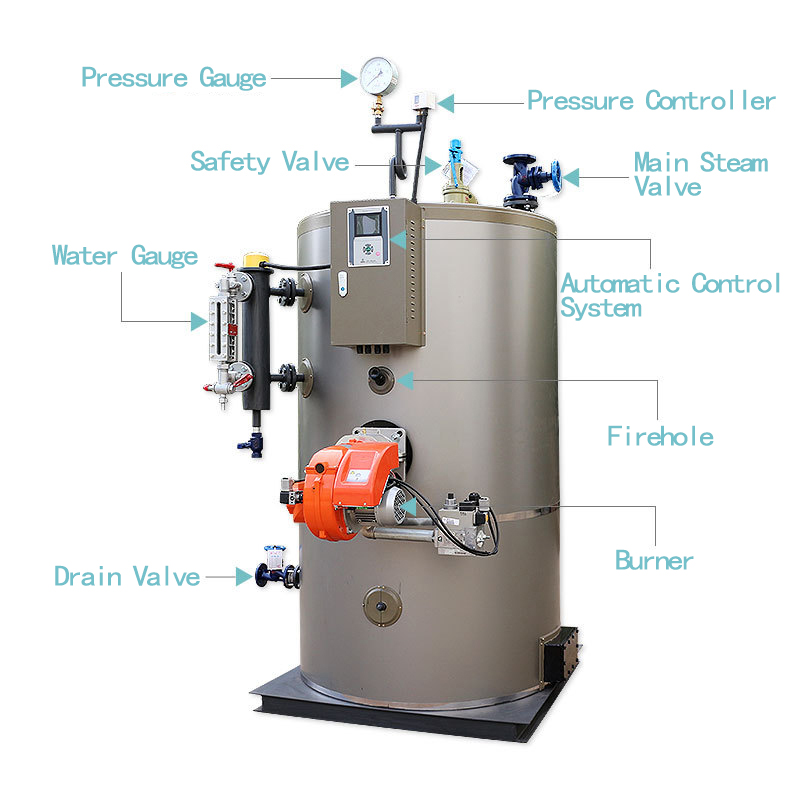

Vertical Steam Boiler 100-1500kg/h Ultra-low Nitrogen Oil/Natural Gas Steam Boiler High Efficiency Industrial Boiler Diesel Steam Engine

Add to wishlist
Compare
  • Rated evaporation capacity: 100-1500kg/h
  • Rated working pressure: 0.4/0.7/1.0MPa
  • Rated steam temperature: 151°C/170°C/184°C
  • Feed water temperature: 20°C
  • Design thermal efficiency: 91-95%
  • Water capacity: 106-1900L

NOTE: Prices may vary by product model and material.

$5,783.00

Compare

Application of Vertical Steam Boiler: Widely used in bridge maintenance, food processing, industrial configuration, machinery supporting, industrial cleaning, medical disinfection, etc.

Rated evaporation kg/H 100 100 150 200 200 300 500 500 750 1000 1000 1500
Fixed work stress Mpa 0.4 0.7 0.7 0.4 0.7 0.7 0.7 1.0 0.7 0.7 1.0 1.0
Rated steam temperature ºC 151 170 170 151 170 170 170 184 170 170 184 184
Feed water temperature ºC 20 20 20 20 20 20 20 20 20 20 20 20
Design Thermal Efficiency % 91-95 91-95 91-95 91-95 91-95 91-95 91-95 91-95 91-95 91-95 91-95 91-95
water capacity m³ 106 48.9 49.6 240 240 480 750 750 1200 1400 1400 1900
Shipping weight T 0.55 0.55 0.72 0.66 0.66 1.5 2 2.1 2.3 2.7 2.91 4.4
Natural gas pipe diameter DN 20 20 25 25 25 32 40 40 50 50 50 50
Natural gas supply pressure Kpa 2-3 2-3 2-3 2-3 2-3 2-3 4-6 4-6 4-6 4-6 4-6 4-6
Fuel use





 light Disel Kg/h 6.5 6.5 9.8 13 13 19.5 32.5 32.5 48.5 65 65 97.5
natural gas Nm³/h 7.5 7.5 11.3 15.5 15.5 23.4 39.6 39.6 58.3 77.7 77.7 116
LPG Nm³/h 2.9 2.9 4.5 6.0 6.0 9.0 15.3 15.3 22.5 30 30 44.8
City gas Nm³/h 15.9 15.9 23.8 32.9 32.9 49.7 84.2 84.2 123.9 165.1 165.1 246.5
Heated area radiation m² 0.96 1.2 1.4 1.92 1.92 2.64 3.43 3.43 3.6 4.8 4.8 5.59
convection m² 1.81 1.5 3.7 4 4.3 6.67 9.03 8.83 13.77 29.2 29.2 28.6
condenser m² 9.54 9.5 9.54 9.54 9.54 9.54 9.54 9.54 9.54 21.2 21.2 31.9
