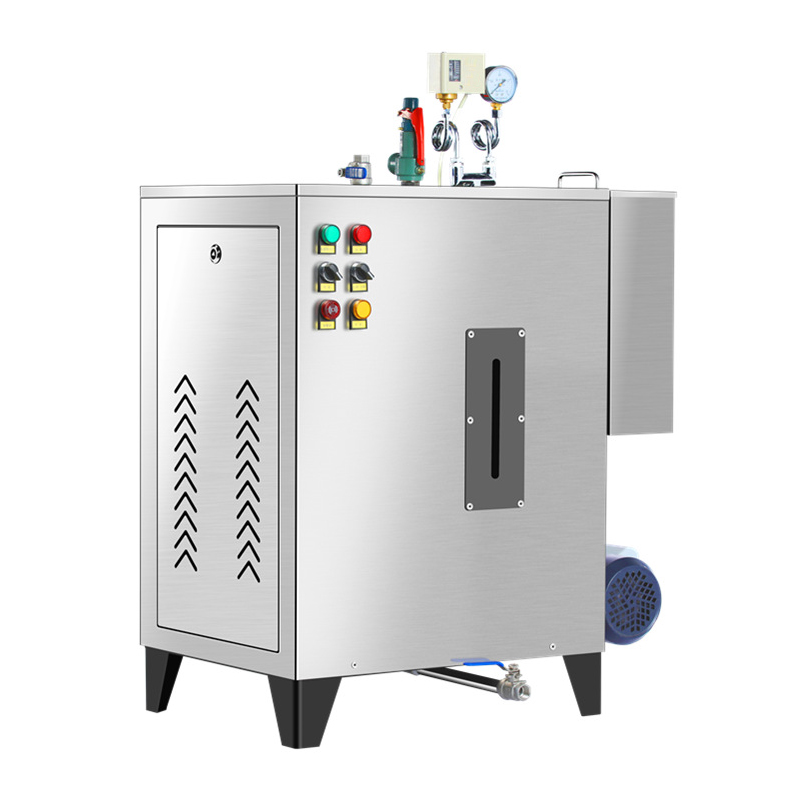

Electric Heating Steam Boiler 6kw-96kw Industrial Small Vertical Electric Heating Steam Generator Household Commercial Boiler

Add to wishlist
Compare

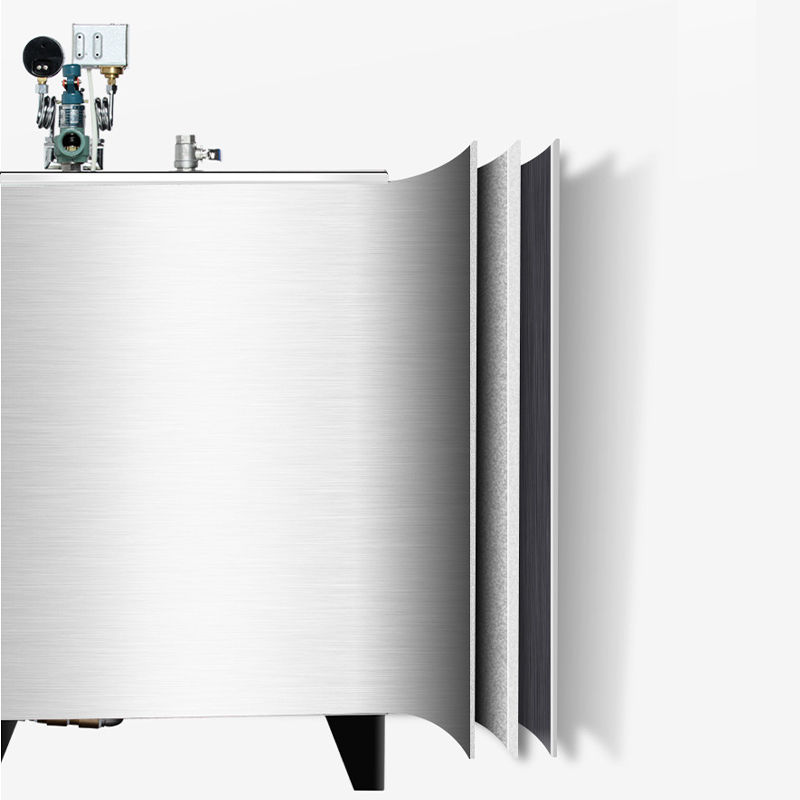

  • All stainless steel body material: high-quality stainless steel body, corrosion-resistant, anti-oxidation.
  • High-efficiency steaming in 5 minutes: anti-dry intelligent water addition, high heat accumulation, thermal efficiency 98%.

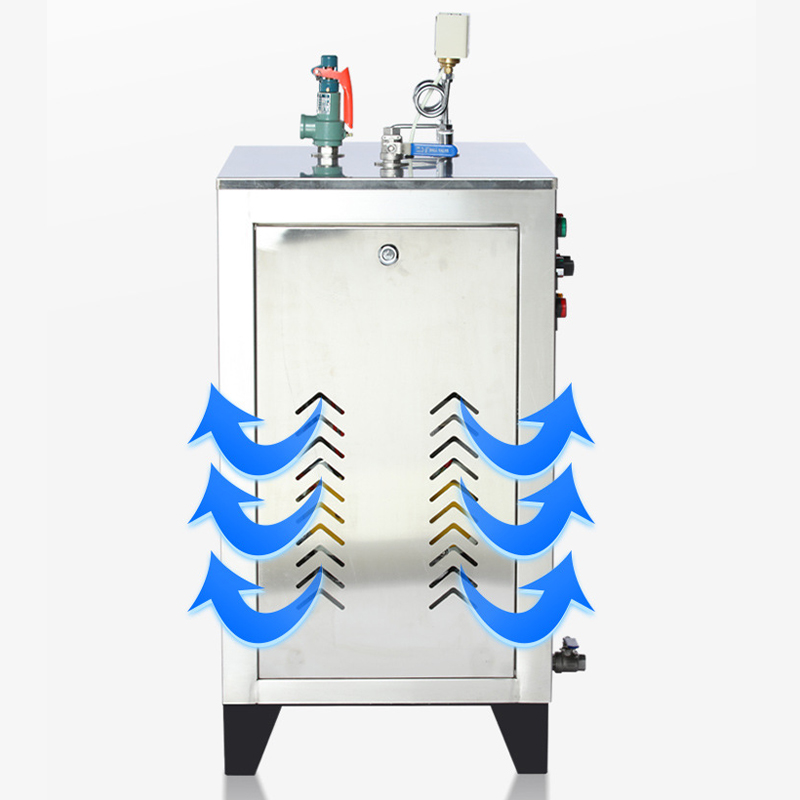

  • High-efficiency cooling holes: double-row heat dissipation, to protect the core and cool down, and has a long service life.
  • Six safety protections: automatic pressure control, overpressure automatic protection, water shortage protection, anti-dry protection, problem alarm, and overheating protection.

NOTE: Prices may vary by product model and material.

$1,516.00

Compare

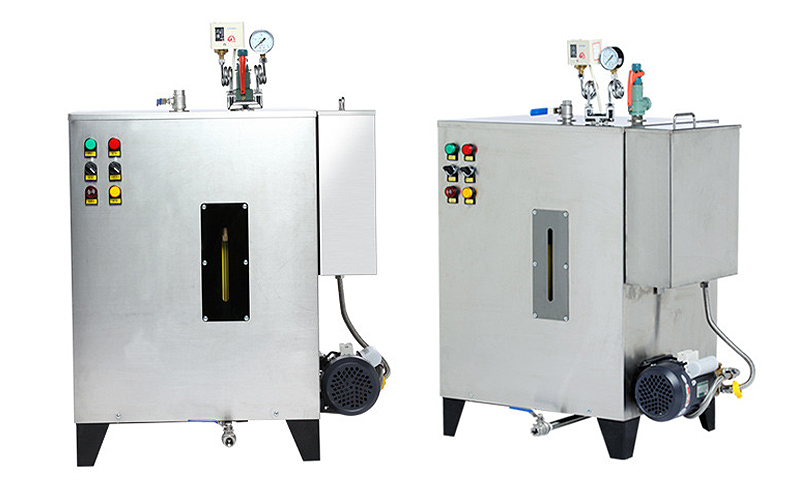

Details of electric heating boiler

  • Operation panel: simple and clear button display, more convenient and faster.
  • Automatic operating system: set all functions in one, microcomputer fully automatic operation.
  • Multi-stage vortex pump: high-quality water pump with full copper core, reliable quality and long service life.
  • Pressure control protection: The pressure controller reaches the upper and lower pressure limits, and automatically controls the machine switch.
Rated power Evaporation Steam pressure Steam temperature Rated voltage Electric current Machine weight Size(mm)
6 kw 8 kg/h 0.4Mpa 151ºC 220/380V 10 A 58 kg 700*460*1050
9 kw 12 kg/h 0.4Mpa 151ºC 220/380V 15 A 58 kg 700*460*1050
12 kw 16 kg/h 0.7Mpa 171ºC 380V 20 A 60 kg 700*460*1050
18 kw 24 kg/h 0.7Mpa 171ºC 380V 30 A 60 kg 700*460*1050
24 kw 32 kg/h 0.7Mpa 171ºC 380V 40 A 65 kg 700*460*1050
36 kw 50 kg/h 0.7Mpa 171ºC 380V 60 A 80 kg 750*520*1050
48 kw 65 kg/h 0.7Mpa 171ºC 380V 80 A 84 kg 750*520*1050
72 kw 100 kg/h 0.7Mpa 171ºC 380V 120 A 115 kg 770*770*1200
96 kw 150 kg/h 0.7Mpa 171ºC 380V 160 A 120 kg 770*770*1200
