Technical Parameters: Technical Parameters: Interface: Clamp Pressure: 0.1-0.25mpa Temperature: -30°C +150°C Working Medium: Gas

|
Size |
D2 |
D1 |
D3 |
H |
|
1.5″ |
Φ50.5 |
Φ28 |
Φ48 |
115 |
|
2″ |
Φ64 |
Φ28 |
Φ48 |
115 |

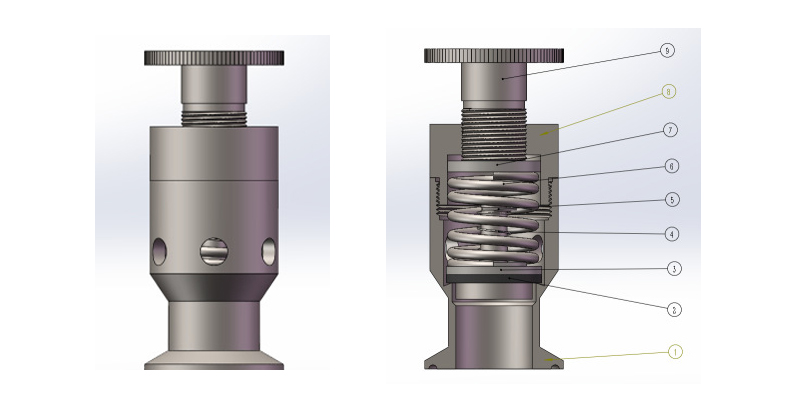

| NO | NAME | MATERRIAL |
| 1 | valve body | SS304 |
| 2 | Gasket | EPDN |
| 3 | Spool | SS304 |
| 4 | Negative pressure small spring | SS304 |
| 5 | circlip | SS304 |
| 6 | positive pressure spring | SS304 |
| 7 | Gasket | SS304 |
| 8 | screw cap | SS304 |
| 9 | Adjusting lever | SS304 |
