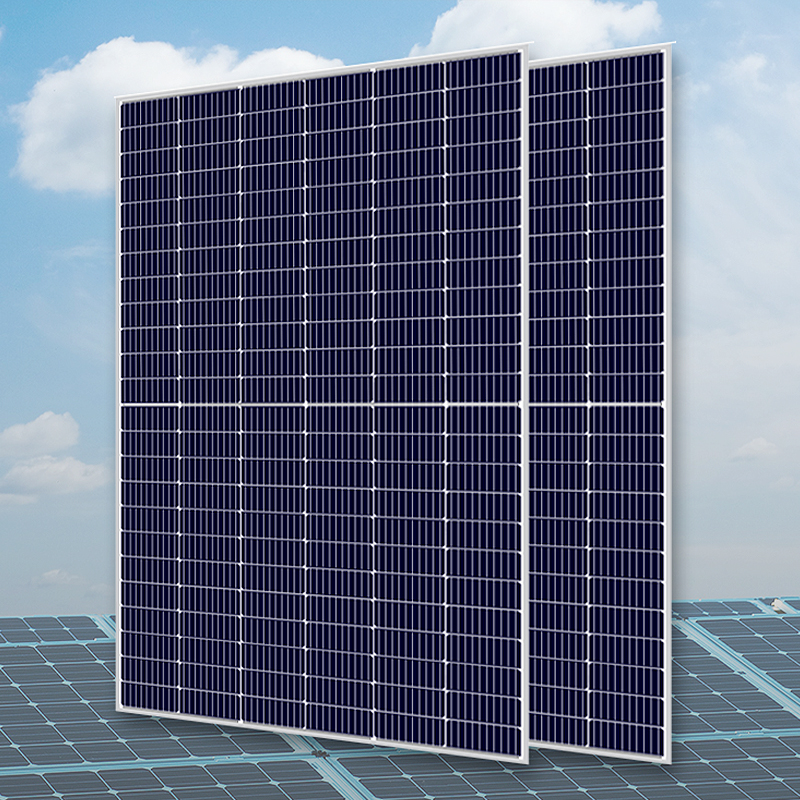

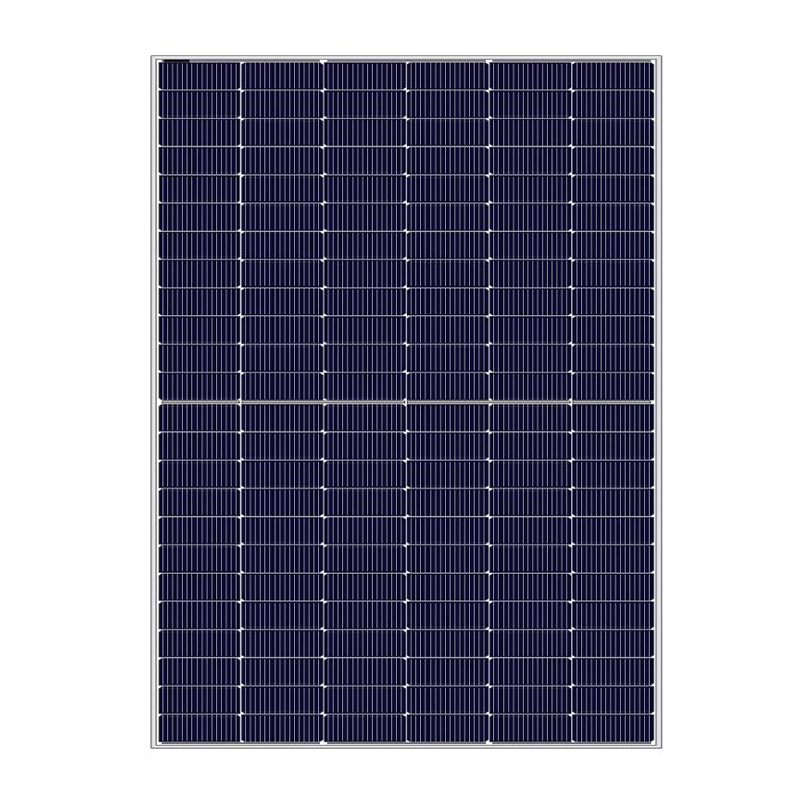

TW Solar Panels TWMND-72HD555-580W N-type Half-cell Monofacial Module High Quality Tongwei Mono Half-cell Solar Panels

Add to wishlist
Compare

MOQ: 10pcs

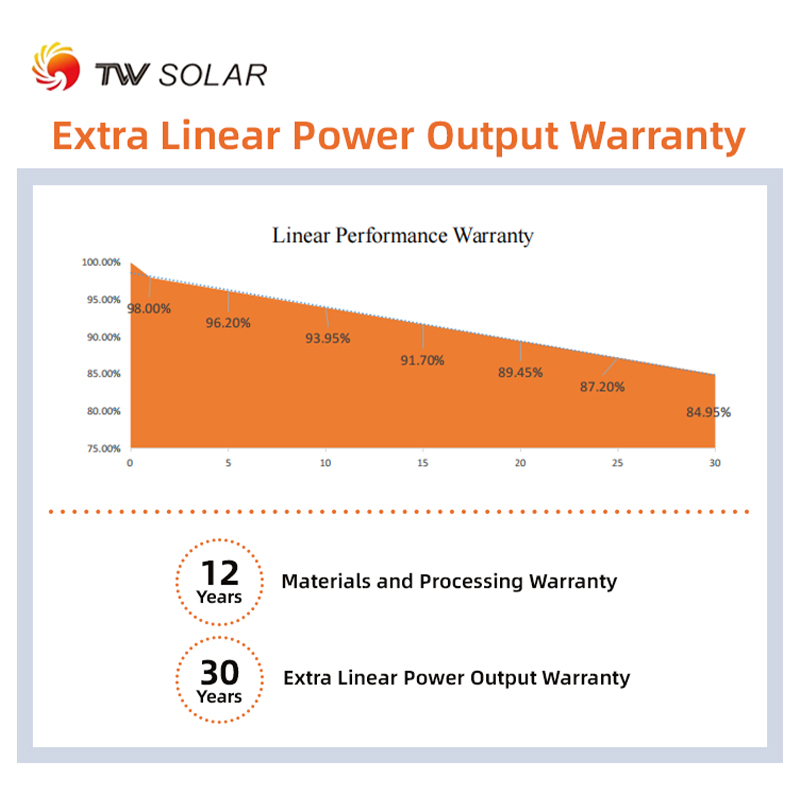

1% degradation in the first year, 0.4% annual degradation in the 2nd-30th year.
Lower degradation with anti-PID cell and encapsulation materials.
Module max output power up to 435W+.
Cell lossless cutting+multi-busbar (MBB) /Super multi-busbar (SMBB) welding technology.
High Power Generation, Low LCOE.

$205.00 – $215.00

Compare

Parameters of TW N-type Solar Panels

Cell Type TNC
Cell Orientation 144[6×24]

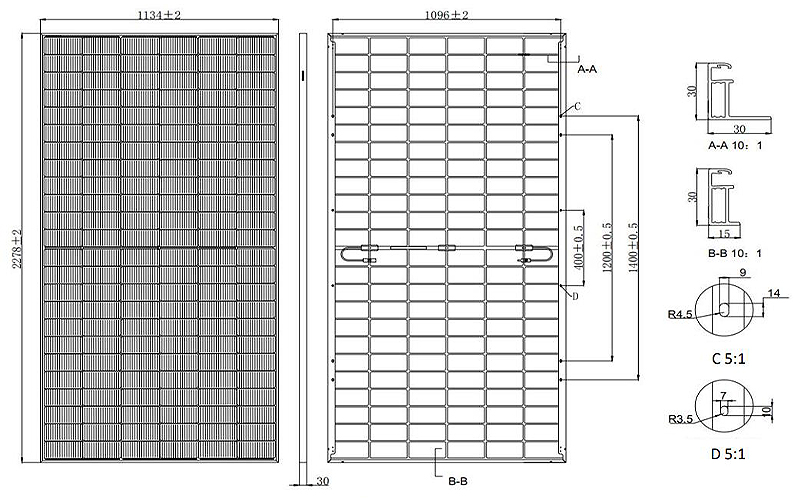

Dimensions 2278±2mm × 1134±2mm × 30mm
Weight 32.7 kg
Front Glass 2.0 mm AR coated strengthened glass
Rear Glass 2.0 mm heat strengthened glass
Frame Anodized aluminum alloy frame
Junction Box IP68, 3 diodes
Cable 4.0 mm²
Cable length +400mm, -200mm, length can be customized
Wind/Snow load 2400Pa/5400Pa
Packaging 36 pcs, 720 pcs per 40’HC
Fire class rating Class C

Statement: With technological process and product update, there maybe deviation between the technical parameters of Tongwei’s module products and the technical parameters contained in the specification, and Tongwei Solar has the right to adjust the technical parameters at any time without notifying the customer,the final interpretation of the technical specification is vested in Tongwei Solar.

Electrical Characteristics (STC)

Module type TWMND-72HD555-580W
Maximum Power : Pmax [W] 555 560 565 570 575 580
Open Circuit Voltage : Voc [V] 50.64 50.84 51.04 51.24 51.44 51.64
Short Circuit Current : lsc [A] 14.09 14.13 14.17 14.21 14.25 14.29
Voltage at Maximum Power: Vmp [V] 42.28 42.48 42.68 42.88 43.08 43.28
Current at Maximum Power: lmp [A] 13.13 13.18 13.24 13.29 13.35 13.40
Module Efficiency: η [%] 21.5 21.7 21.9 22.1 22.3 22.5
STC: Irradiance 1000W/m², Cell Temperature 25°C, AM=1.5, Test Uncertainty: ±3%

Electrical Characteristics (NMOT)

Maximum Power : Pmax [W] 417.4 421.1 424.8 428.6 432.4 436.1
Open Circuit Voltage : Voc [V] 47.80 48.29 48.48 48.67 48.86 49.05
Short Circuit Current : lsc [A] 11.37 11.42 11.47 11.52 11.56 11.60
Voltage at Maximum Power: Vmp [V] 39.80 39.84 39.89 39.95 40.00 40.19
Current at Maximum Power: lmp [A] 10.49 10.56 10.63 10.70 10.78 10.85
NMOT: Irradiance 800W/m², Ambient Temperature 20°C, AM=1.5, Wind speed: 1m/s

Electrical characteristics with different rear side power gain

5% Maximum Power : Pmax [W] 582.8 588.0 593.3 598.5 603.8 609.0
Module Efficiency: η [%] 22.6 22.8 23.0 23.2 23.4 23.6
15% Maximum Power : Pmax [W] 638.3 644.0 649.8 655.5 661.3 667.0
Module Efficiency: η [%] 24.7 24.9 25.2 25.4 25.6 25.8
25% Maximum Power : Pmax [W] 693.8 700.0 706.3 712.5 718.8 725.0
Module Efficiency: η [%] 26.9 27.1 27.3 27.6 27.8 28.1

SKU: N/A Category: Tags: ,
Max. Power

555W, 560W, 565W, 570W, 575W, 580W
