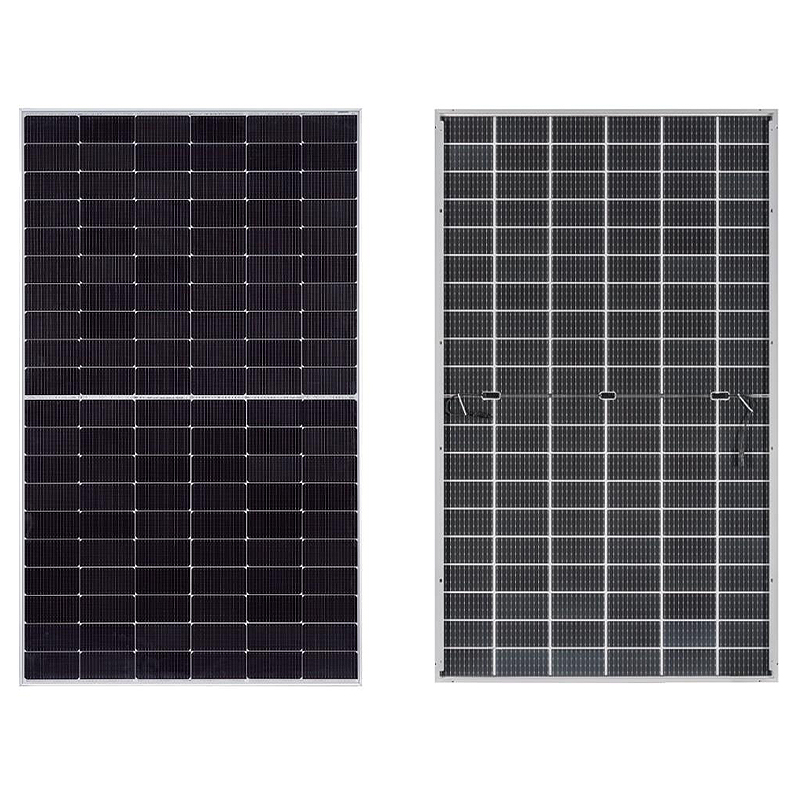

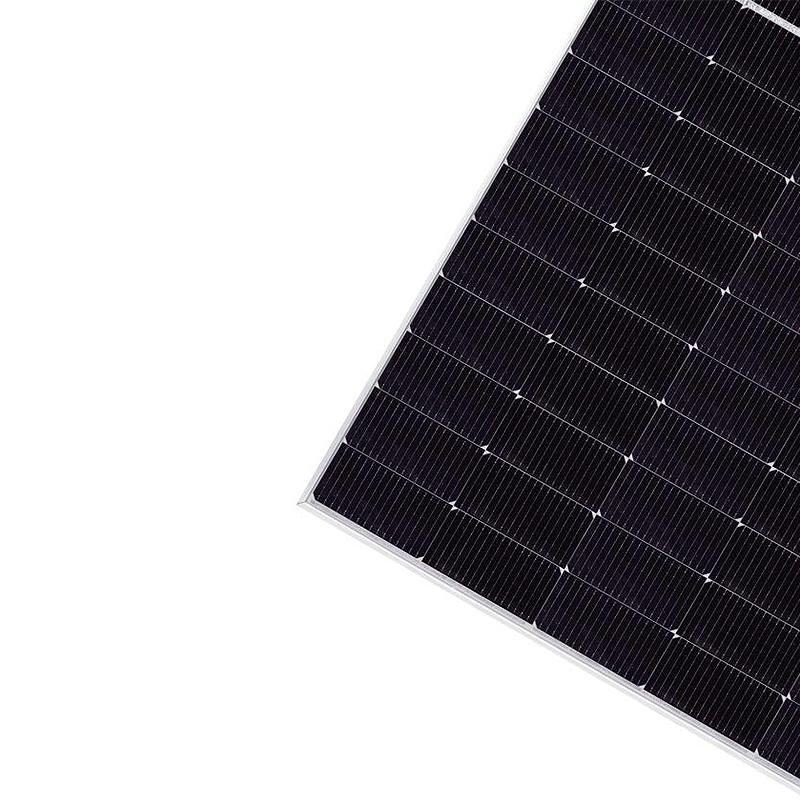

TW P-type Solar Panel TWMPF-60HD585-605W Tongwei Half-cell Module High Power Generation Monofacial Module Mono Solar Panels

Add to wishlist
Compare

MOQ: 10pcs

Operating Parameters

  • Operational Temperature: -40ºC～85ºC
  • Maximum System Voltage: 1500V DC
  • Maximum Series Fuse Rating: 35A
  • Power Output Tolerance: 0～+5W
  • Maximum Bifaciality: 70±5%

1st year<2%, 0.45% power degradation per year from 2 to 30 years.

12-year Warranty for Materials.

30-year Warranty for Linear Power Output.

$216.00 – $224.00

Compare

Parameters of TW P-type Solar Panel

Cell Type TPC
Cell Orientation 120[6×20]

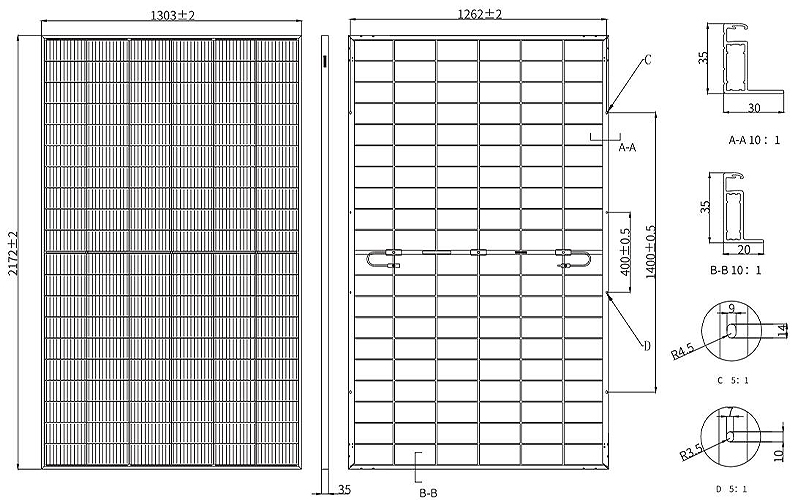

Dimensions 2172±2mm × 1303±2mm × 35mm
Weight 34.8 kg
Front Glass 2.0 mm high transmittance, AR coated tempered glass
Rear Glass 2.0 mm high transmittance, coated tempered glass
Frame Anodized aluminum alloy frame
Junction Box IP68, 3 diodes
Cable 4.0 mm²
Cable length +400mm, -200mm, length can be customized
Wind/Snow load 2400Pa/5400Pa
Packaging 31 pcs, 558 pcs per 40’HC

Statement: With technological process and product update, there maybe deviation between the technical parameters of Tongwei’s module products and the technical parameters contained in the specification, and Tongwei Solar has the right to adjust the technical parameters at any time without notifying the customer,the final interpretation of the technical specification is vested in Tongwei Solar.

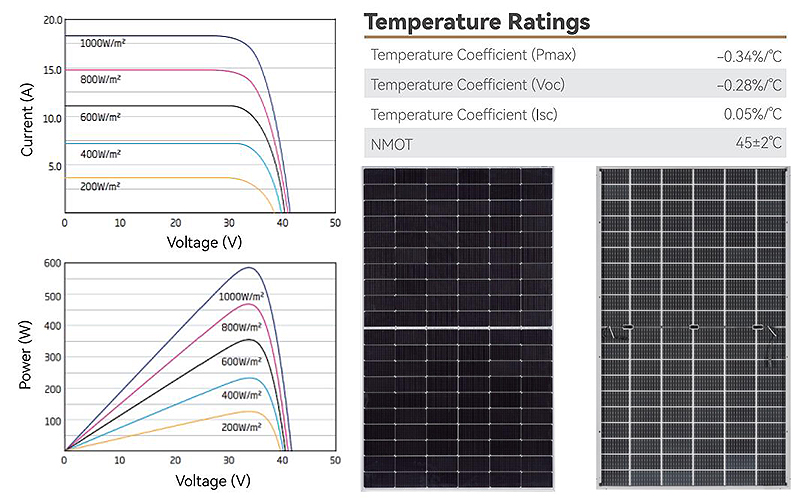

Electrical Characteristics (STC)

Module type TWMPF-60HD585-605W
Maximum Power : Pmax [W] 585 590 595 600 605
Open Circuit Voltage : Voc [V] 41.04 41.24 41.44 41.64 41.84
Short Circuit Current : lsc [A] 18.30 18.36 18.41 18.46 18.52
Voltage at Maximum Power: Vmp [V] 33.95 34.15 34.35 34.55 34.75
Current at Maximum Power: lmp [A] 17.23 17.28 17.32 17.37 17.41
Module Efficiency: η [%] 20.7 20.8 21.0 21.2 21.4
STC: Irradiance 1000W/m², Cell Temperature 25°C, AM=1.5, Test Uncertainty: ±3%

Electrical Characteristics (NMOT)

Maximum Power : Pmax [W] 442.6 446.4 450.2 454.0 457.7
Open Circuit Voltage : Voc [V] 38.66 38.84 39.03 39.22 39.41
Short Circuit Current : lsc [A] 14.76 14.80 14.84 14.88 14.93
Voltage at Maximum Power: Vmp [V] 31.67 31.86 32.05 32.23 32.42
Current at Maximum Power: lmp [A] 13.97 14.01 14.05 14.09 14.12
NMOT: Irradiance 800W/m², Ambient Temperature 20°C, AM=1.5, Wind speed: 1m/s

Electrical characteristics with different rear side power gain

5% Maximum Power : Pmax [W] 614.3 619.5 624.8 630 635.3
Module Efficiency: η [%] 21.7 21.9 22.1 22.3 22.4
15% Maximum Power : Pmax [W] 672.8 678.5 684.3 690.0 695.8
Module Efficiency: η [%] 23.8 24.0 24.2 24.4 24.6
25% Maximum Power : Pmax [W] 731.3 737.5 743.8 750.0 756.3
Module Efficiency: η [%] 25.8 26.1 26.3 26.5 26.7

SKU: N/A Category: Tags: , , , ,
Max. Power

585W, 590W, 595W, 600W, 605W
