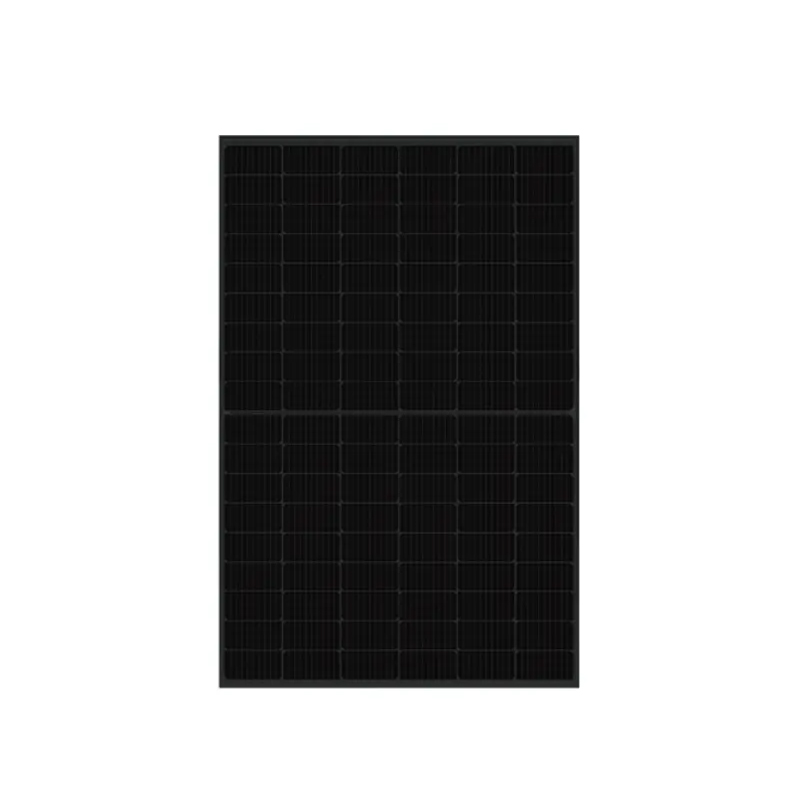

TW N-type Full-black PV Panels TWMND-54HB410-430W Half-cell Monofacial Full-black Module 108 Cells Solar Panel Tongwei

Add to wishlist
Compare

MOQ: 10pcs

Lower Temperature Coefficient

  • Temperature coefficient of P-type module is -0.34%/℃
  • The N-type module optimizes temperature coefficient to -0.30%/℃
  • Power generation is particularly prominent in high-temperature environments

Better Power Guarantee

  • 1% degradation in the first year for N-type module (2% for P-type)
  • Both monofacial and bifacial has a 30-year output warranty (P-type bifacial 30-year, monofacial 25-year)
  • Power output after 30 years is not less than 87.4% of the initial power

$157.00 – $165.00

Compare

Parameters of TW N-type Full-black PV Panels

Cell Type TNC
Cell Orientation 108[6×18]
Dimensions 1722±2mm × 1134±2mm × 30mm
Weight 20.5 kg
Front Glass 3.2 mm high transmittance, AR coated tempered glass

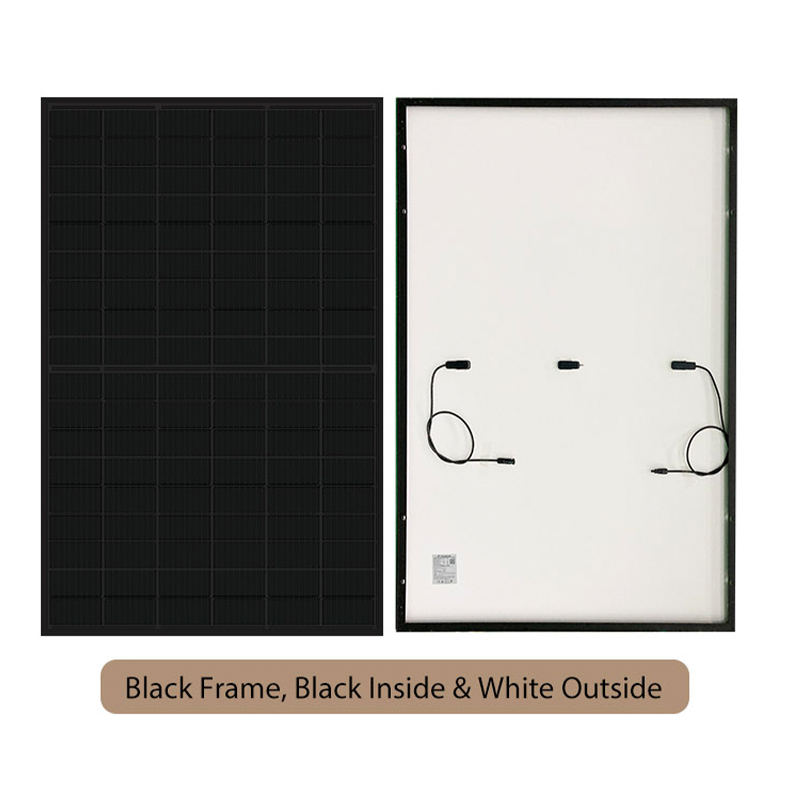

Backsheet Black inside and white outside
Frame Anodized aluminum alloy black frame
Junction Box IP68, 3 diodes
Cable 4.0 mm²
Cable length +400mm, -200mm or ±1200mm, length can be customized
Wind/Snow load 2400Pa/5400Pa
Packaging 36 pcs, 936 pcs per 40’HC

Statement: With technological process and product update, there maybe deviation between the technical parameters of Tongwei’s module products and the technical parameters contained in the specification, and Tongwei Solar has the right to adjust the technical parameters at any time without notifying the customer,the final interpretation of the technical specification is vested in Tongwei Solar.

Electrical Characteristics (STC)

Module type TWMND-54HB410-430W
Maximum Power : Pmax [W] 410 415 420 425 430
Open Circuit Voltage : Voc [V] 37.85 38.01 38.17 38.33 38.49
Short Circuit Current : lsc [A] 14.05 14.10 14.15 14.20 14.25
Voltage at Maximum Power: Vmp [V] 31.20 31.36 31.52 31.68 31.84
Current at Maximum Power: lmp [A] 13.14 13.23 13.32 13.42 13.51
Module Efficiency: η [%] 21.0 21.3 21.5 21.8 22.0
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass=1.5, Measuring Uncertainty: ±3%

Electrical Characteristics (NMOT)

Maximum Power : Pmax [W] 308.0 312.0 316.0 320.0 324.0
Open Circuit Voltage : Voc [V] 35.92 36.08 36.24 36.40 36.56
Short Circuit Current : lsc [A] 11.25 11.31 11.37 11.43 11.49
Voltage at Maximum Power: Vmp [V] 29.02 29.18 29.34 29.50 29.66
Current at Maximum Power: lmp [A] 10.61 10.69 10.77 10.85 10.92
NMOT: Irradiance 800W/m², Ambient Temperature 20°C, Air Mass=1.5, Wind speed: 1m/s

SKU: N/A Category: Tags: , , , , ,
Max. Power

410W, 415W, 420W, 425W, 430W
