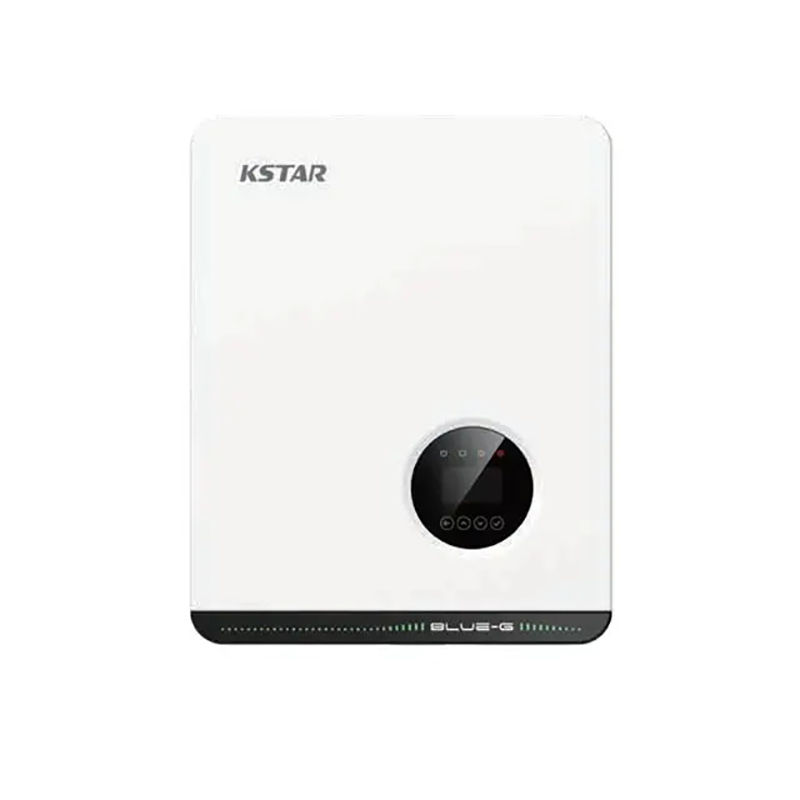

Kstar Inverter 17kw Solar Inverter For BIPV System Model BluE-17KT-M1

Add to wishlist
Compare

General Features
● Max. PV voltage up to 1100V
● Type II DC /AC SPD
● DC/AC ratio up to 2
● IP66 protection
● Compatible for big capacity PV panel
● WiFi / 4G Plug optional
● High efficiency up to 98.6%
● Smaller and lighter

$850.00

Compare

Solar Inverter MODEL
BluE-17KT-M1
Input(DC)
Max. remonmmended PV power
22500W
Max. DC voltage
1100V
Nominal voltage
600V
Start voltage
180V
MPPT voltage range
140 V~1,000V
Number of MPP tracker
2
Strings per MPP tracker
2
Max. input current per MPPT
30A
Max. short-circuit current per MPPT
50A
Output(DC)
Nominal AC output power
17000W
Max. AC apparent power
18700VA
Nominal AC voltage
400V 3L+N
AC grid frequency range
50 / 60Hz(±5Hz)
Max. output current
27.1A
Power factor(cosø)
0.8leading-0.8lagging
THDi
3%
Efficiency
Max. efficiency
98.6%
Euro efficiency
98.3%
Protection Devices
DC switch
Yes
Anti-islanding protection
Yes
Output over current
Yes
DC reverse polarity protection
Yes
String fault Detection
Yes
Surge protection
Type II
Insulation detection
Yes
AC short circuit protection
Yes
General Specifications
Dimensions W x H x D (mm)
380x483x193
Weight(kg)
<25
Operating temperature range
–25℃~+60℃
Cooling type
Fan cooling
Max. operation altitude
4000m
Max. operation humidity
0-100%(No condensation)
AC Output terminal type
Connector
IP class
IP65
Topology
Transformer-less
Communication
RS485/Wifi/4G
Display
LCD
Certification & Standard
EN/IEC62109-1/2；IEC/EN61000-6-2;IEC/EN61000-6-4;IEC61683;IEC60068;IEC60529;IEC62116;IEC61727;
EN50549-1;AS 4777.2;VDE-AR-N-4105;VDE 0126-1-1;CEI0-21;G98;G99;C10/C11;NB/T32004-2018；GB/T19964-2012

General Features
● Max. PV voltage up to 1100V
● Type II DC /AC SPD
● DC/AC ratio up to 2
● IP66 protection
● Compatible for big capacity PV panel
● WiFi / 4G Plug optional
● High efficiency up to 98.6%
● Smaller and lighter
