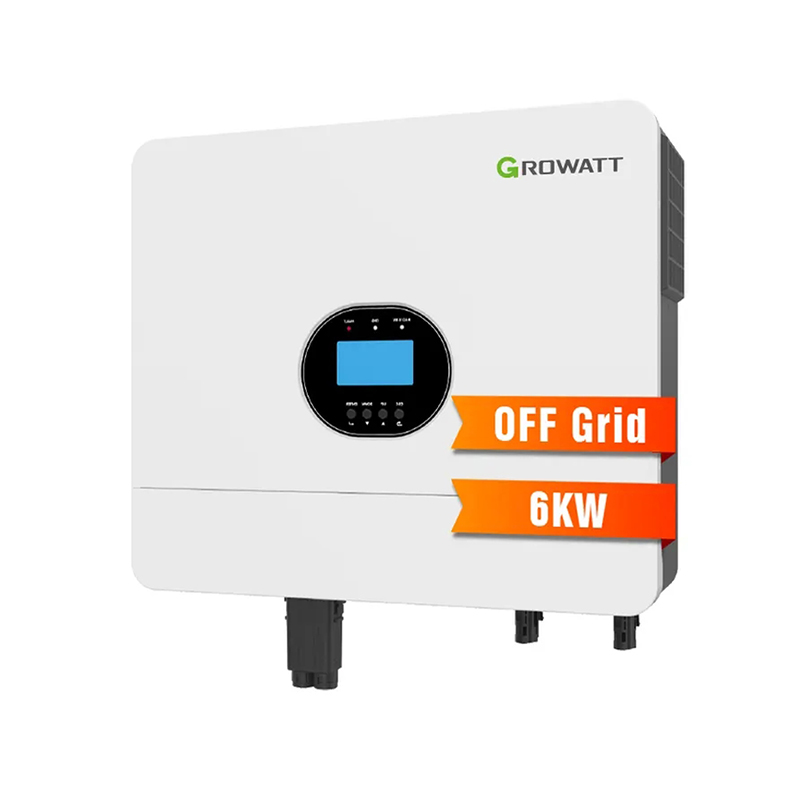

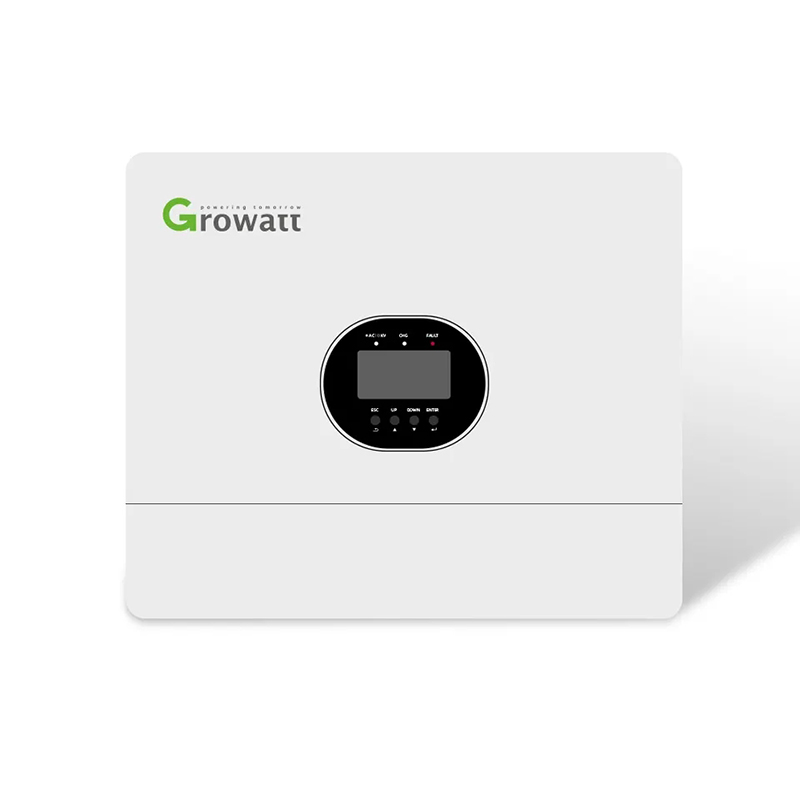

Growatt Solar Inverter Plug-And-Play Terminal SPF 6000 ES Plus 6kw Single Phase Off Grid Storage Inverter

Add to wishlist
Compare

High efficiency up to 93%
Maximum PV up to 500VDC
Plug-and-Play terminal for PV port
Local WIFI connection

$799.00

Compare

Solar Inverter Datasheet
SPF 6000 ES Plus
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
Inverter Output
Rated Power
6000VA/6000W
Parallel Capability
Yes, 6 units maximum
AC Voltage Regulation
(Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
12000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10ms typical，20ms Max
Solar Charger
Maximum PV Array Power
8000W
MPPT Range @ Operating Voltage
120VDC ~ 450VDC
Number of Independent MPP Trackers/
Strings Per MPP Tracker
2/1
Max. input current per MPP tracker
16A
Maximum PV Array Open
Circuit Voltage
500VDC
Maximum Solar Charge Current
100A
AC Charger
Charge Current
80A
AC Input Voltage
230VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
Physical
Protection Degree
IP20
Dimension (W/H/D)
460/395/132mm
Net Weight (kgs)
13.5
Operating Environment
Humidity
5% to 95% Relative Humidity(Non-condensing)
Altitude
<2000m
Operating Temperature
0°C – 55°C
Storage Temperature
-15°C – 60°C

High efficiency up to 93%
Maximum PV up to 500VDC
Plug-and-Play terminal for PV port
Local WIFI connection
