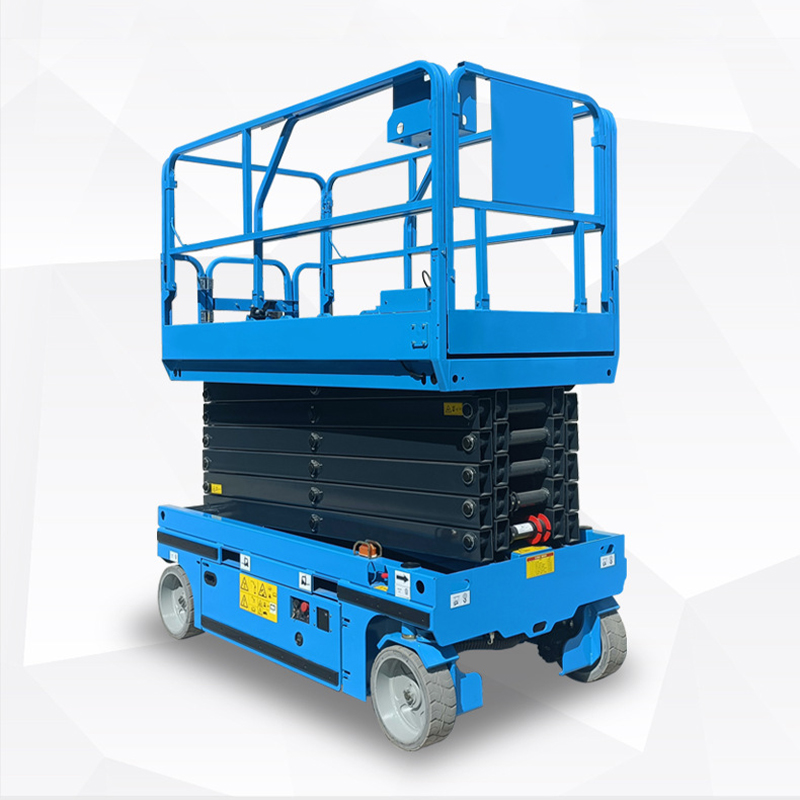

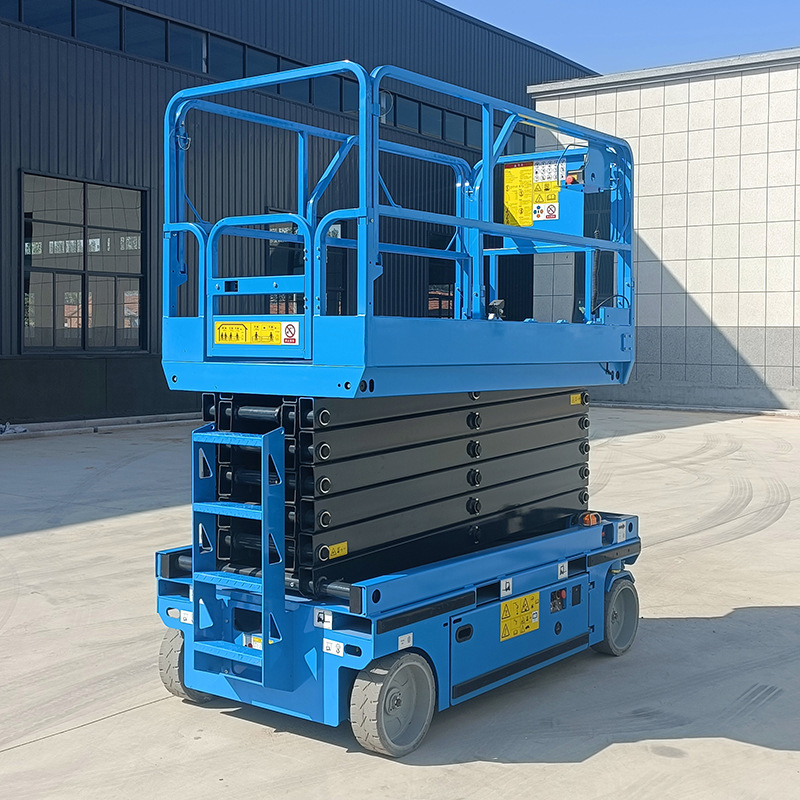

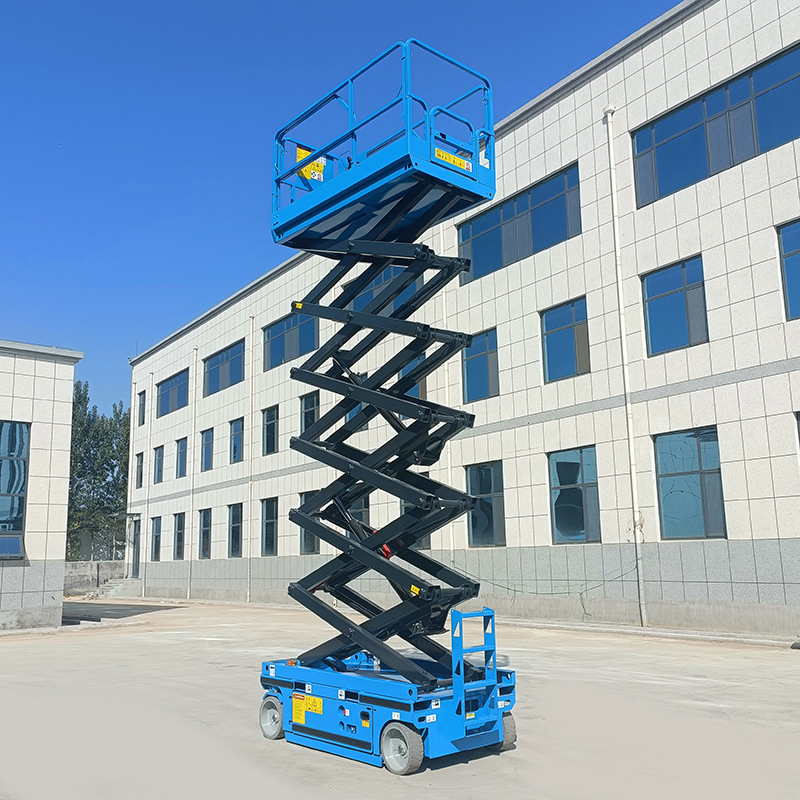

Self-Propelled Mobile Scissor Hoists 500 KG 8 Meters Electric Hydraulic Lifting Platform Aerial Work Maintenance Small Lift

Add to wishlist
Compare

NOTE: Prices may vary by product model and material.

  • Thick material and high-side table top to protect the safety of the operator. Increase the bearing capacity of the lift body to make the handling more firm.
  • Maintenance support. When maintaining equipment, ensure the personal safety of maintenance personnel.
  • High strength manganese steel. The scissor set is made of Q355 manganese steel, which has high hardness, wear resistance, good impact toughness, and stronger equipment stability.
  • Hydraulic drive wheels. The power of the motor is strong, and the material can still walk when it is raised more than three meters.
  • It has an emergency drop rope to enhance emergency performance and ensure the safety of technicians.

$5,841.00

Compare

Specification of the Self-Propelled Mobile Scissor Hoists

Model 0608 0810 1012 1214 1416
Safe Workload 500kg 450kg 320kg 320kg 230kg
Extended platform safe working load 113kg 113kg 113kg 113kg 113kg
Maximum working height (A) 8m 10m 12m 14m 15.8m
Maximum Platform Height (B) 6m 8m 10m 11.8m 13.8m
Working platform size (L×W×L) 2270 ×1120 ×1100mm 2270 ×1120 ×1100mm 2270 ×1120 ×1100mm 2270 ×1120 ×1100mm 2640 ×1120× 1100mm
Dimensions of the whole machine (L×W×H, guardrail folded) 2430 ×1210× 1670mm 2480 ×1210 ×1800mm 2430 ×1210 ×1930mm 2430 ×1210 ×2060mm 2840 ×1310 ×2100mm
Dimensions of the whole machine (L×W×H, the guardrail is not folded) 2430 ×1210 ×2220mm 2430 ×1210 ×2350mm 2430 ×1210 ×2470mm 2430 ×1210 ×2600mm 2840 ×1310 ×2670mm
Platform Extension Dimensions (G) 0.9m 0.9m 0.9m 0.9m 0.9m
Minimum ground clearance (folded state) 0.1m 0.1m 0.1m 0.1m 0.1m
Minimum ground clearance (lifting state) 0.019m 0.019m 0.019m 0.019m 0.019m
Wheel base 2.22m 2.22m 2.22m 2.22m 2.22m
Minimum turning radius (inner wheel/outer wheel) 0/2.2m 0/2.2m 0/2.2m 0/2.2m 0/2.2m
Lifting Motor/Drive Motor 24V/4.5KW 24V/4.5KW 24V/4.5KW 24V/4.5KW 24V/4.5KW
Machine travel speed (closed state) 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h
Machine travel speed (lifting state) 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h
Ascent / descent speed 95/80 sec 95/80 sec 95/80 sec 95/80 sec 95/80 sec
Storage battery 4×6V/200Ah 4×6V/200Ah 4×6V/200Ah 4×6V/200Ah 4×6V/200Ah
Charger 24V/30A 24V/30A 24V/30A 24V/30A 24V/30A
Maximum gradeability 25% 25% 25% 25% 25%
Tire Φ381×127 mm Φ381×127 mm Φ381×127 mm Φ381×127 mm Φ381×127 mm
Total Weight 2200kg 2300kg 2640kg 2980kg 3400kg
