Low Headroom Electric Hoist 0.5T 1T 1.5T 2T 2.5T 3T 5T Single Chain / Double Chain Electric Hoist for Low Working Environment

Add to wishlist
Compare

NOTE: Prices may vary by product model and material.

1. Light weight
2. The limit size is small
3. High level of work
4. Better safety performance, high reliability and low failure rate
5. The chain runs in the sprocket, it is not easy to fall off or jump, and the use is more stable
6. Low working noise, strong overload capacity and large braking torque

$792.00

Compare

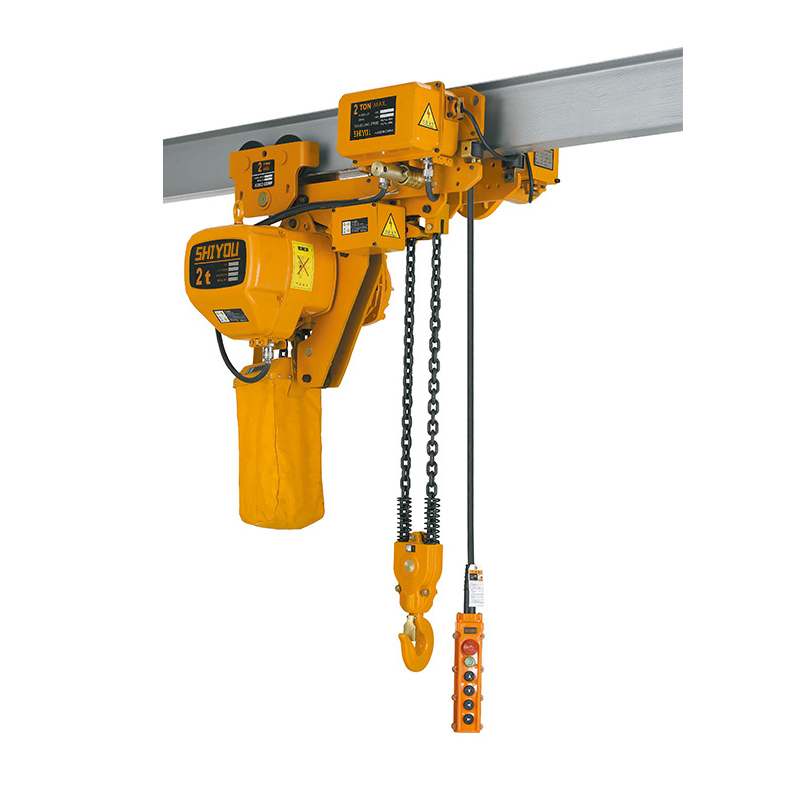

Low Headroom Electric Hoist
This Low Headroom Electric Hoist can walk left and right on the track. The difference from the running Electric Hoist is that it can save more lifting space. It is generally used in working environments with limited lifting space.

Scope of application: Widely used in various factories, warehouses, wind power generation, logistics, docks, construction, hardware molds and other places, for lifting or loading and unloading goods, and can also lift heavy objects to facilitate work or repair large machines.



Model Capacity Lifting height Lifting speed Lifting motor
Power Rotating speed Phases Voltage Frequency
0.5-01L 0.5T 3/9m 7.2m/min 1.1Kw 1440r/min 3phases 380V 50Hz
01-01L 1T 3/9m 6.8m/min 1.5Kw 1440r/min 3phases 380V 50Hz
01-02L 1T 3/9m 3.6m/min 1.1Kw 1440r/min 3phases 380V 50Hz
1.5-01L 1.5T 3/9m 8.8m/min 3.0Kw 1440r/min 3phases 380V 50Hz
02-01L 2T 3/9m 6.6m/min 3.0Kw 1440r/min 3phases 380V 50Hz
02-02L 2T 3/9m 3.4m/min 1.5Kw 1440r/min 3phases 380V 50Hz
2.5-01L 2.5T 3/9m 5.6m/min 3.0Kw 1440r/min 3phases 380V 50Hz
03-01L 3T 3/9m 5.6m/min 3.0Kw 1440r/min 3phases 380V 50Hz
03-02L 3T 3/9m 4.4m/min 3.0Kw 1440r/min 3phases 380V 50Hz
05-02L 5T 3/9m 2.8m/min 3.0Kw 1440r/min 3phases 380V 50Hz
7.5-03L 7.5T 3/9m 1.8m/min 2*3.0Kw 1440r/min 3phases 380V 50Hz
10-04L 10T 3/9m 2.8m/min 2*3.0Kw 1440r/min 3phases 380V 50Hz

Operating motor

Model Operating motor
Power Rotating speed Operating speed Phases Voltage Frequency I-Beam
0.5-01L 0.4Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 82-153mm
01-01L 0.4Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 82-53mm
01-02L 0.4Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 82-153mm
1.5-01L 0.4Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 100-178mm
02-01L 0.4Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 100-178mm
02-02L 0.75Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 100-178mm
2.5-01L 0.75Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 100-178mm
03-01L 0.75Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 100-178mm
03-02L 0.75Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 100-178mm
05-02L 0.75Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 112-178mm
7.5-03L 0.75Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 112-178mm
10-04L 0.75Kw 1440r/min 11/21m/min 3Phases 380V 50Hz 150-220mm
