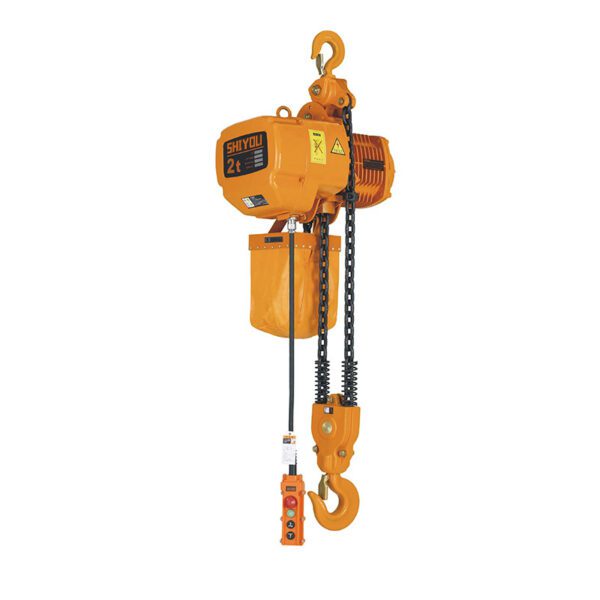

Fixed Electric Hoist 0.5T 1T 2T 3T Single Chain / Double Chain Electric Hoist Electric Chain Hoist Chain and Wire Rope Hoists

Add to wishlist
Compare
  1. Pure copper motor. The motor is self-produced throughout the whole process, the thread volume is more sufficient and the power is strong, and the machine will not be burned.
  2. Limit switch. There are limit devices on the top and bottom of the Hoist, and it will stop automatically when it reaches the limit, preventing it from going to the top and making it safer to use.
  3. Refined case. High-quality aluminum alloy material, solid and light, anti-rust and anti-corrosion, long service life, faster heat dissipation.
  4. Power switch button. Waterproof, dustproof and drop-proof, the three-proof quality is more durable. Steel cord, no fear of pulling.
  5. Chain. Using manganese steel alloy chain, intermediate frequency quenching heat treatment process, wear-resistant.
  6. Manganese steel hook. Hot forging treatment, 360-degree rotation, with safety buckle not easy to fall off, more secure use.
  7. High precision gearbox. Alloy steel gear, quieter operation, longer service life and stronger power.

$521.00

Compare

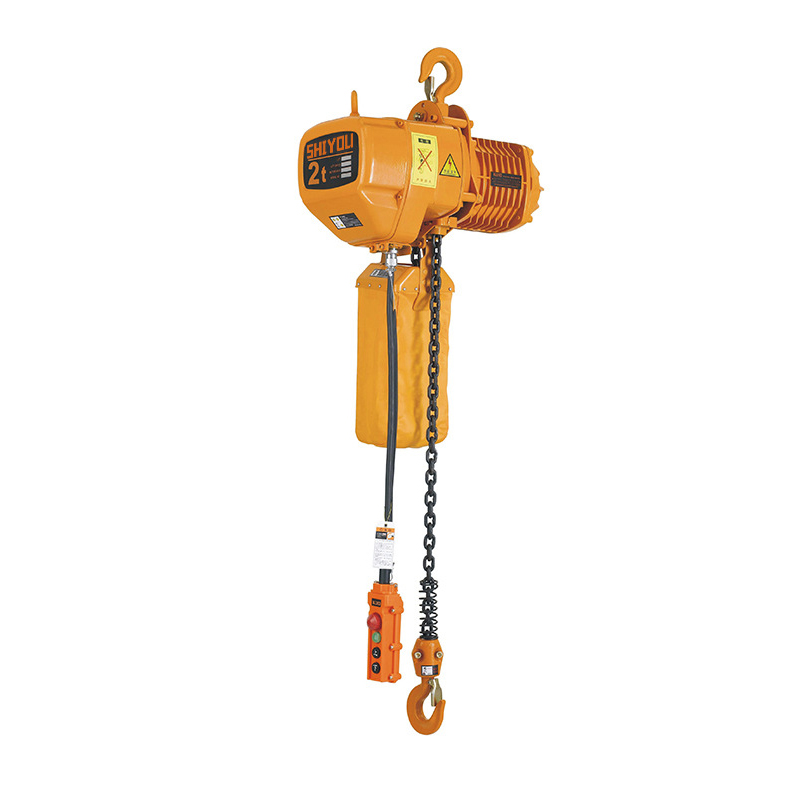

Fixed Electric Hoist
Fixed Electric Hoist is also called hook type. Fixed in one place for lifting.

Model H(mm) A(mm) B(mm) D(mm) E(mm)
0.5-01 530 460 230 288 165
01-01 650 520 260 300 176
01-02 680 460 230 288 165
1.5-01 800 615 295 430 265
02-01 800 615 295 430 265
02-02 835 520 260 300 236
2.5-01 845 615 295 430 265
03-01 845 615 295 430 265
03-02 950 615 295 430 320
03-03 950 520 260 350 205
05-02 1030 615 295 430 325
7.5-03 1380 615 295 505 320

Model Capacity Lifting height Lifting speed Lifting motor
Power Rotating speed Phases Voltage Frequency
0.5-01 0.5T 3/9m 7.2m/min 1.1Kw 1440r/min 3phases 380V 50Hz
01-01 1T 3/9m 6.8m/min 1.5Kw 1440r/min 3phases 380V 50Hz
01-02 1T 3/9m 3.6m/min 1.1Kw 1440r/min 3phases 380V 50Hz
1.5-01 1.5T 3/9m 8.8m/min 3.0Kw 1440r/min 3phases 380V 50Hz
02-01 2T 3/9m 6.6m/min 3.0Kw 1440r/min 3phases 380V 50Hz
02-02 2T 3/9m 3.4m/min 1.5Kw 1440r/min 3phases 380V 50Hz
2.5-01 2.5T 3/9m 5.6m/min 3.0Kw 1440r/min 3phases 380V 50Hz
03-01 3T 3/9m 5.6m/min 3.0Kw 1440r/min 3phases 380V 50Hz
03-02 3T 3/9m 4.4m/min 3.0Kw 1440r/min 3phases 380V 50Hz
03-03 3T 3/9m 2.2m/min 1.5Kw 1440r/min 3phases 380V 50Hz
05-02 3T 3/9m 2.8m/min 3.0Kw 1440r/min 3phases 380V 50Hz
7.5-03 7.5T 3/9m 1.8m/min 3.0Kw 1440r/min 3phases 380V 50Hz
