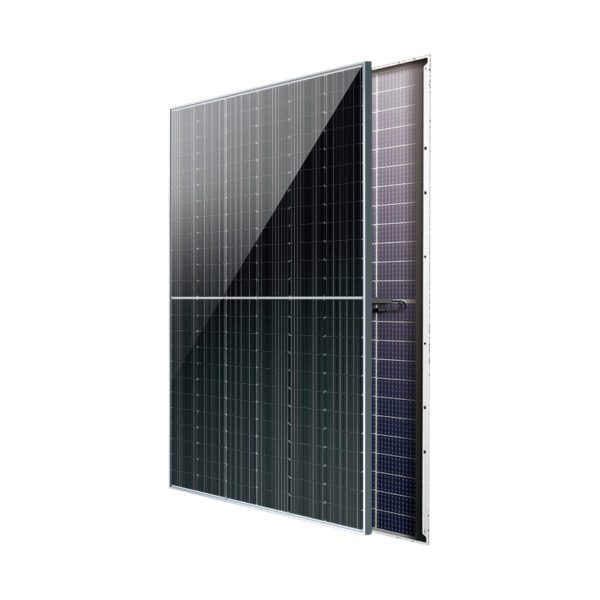

Photovoltaic solar panel ASTRO 5 double-sided 555W series (182), 540W~555W solar panel mobile power supply, flexible solar panel

Add to wishlist
Compare

Power range: 540~555W
Power tolerance: 0~+5W
Highest module conversion efficiency: 21.5%
First year attenuation: ≤ 2.0%
Attenuation over the years: ≤ 0.45%
● PERC+ / multi-busbar half-cut
● Lossless cutting / PID resistant
● Low BOS and LCOE
● Double-sided power generation

$198.00 – $202.00

Compare

Solar panel mechanical parameters
Component Dimensions (L x W x H): 2278 x 1134 x 30 mm
Cell: P-type monocrystalline silicon
Number of cells: 144 (6*24)
Frame type: silver white anodized aluminum profile
Glass thickness: 2.0+2.0 mm
Cable length (including connectors): vertical installation: ( + ) 350 mm, ( – ) 250 mm;
or customized;
Cable cross-section (IEC/UL): 4 mm² / 12 AWG
① Maximum test mechanical load: 5400 Pa (front) / 2400 Pa (rear)
Connector Type (IEC/UL): HCB40 (Standard) / MC4-EVO2A (Optional)
Packaging parameters
Component weight: 32.1 kg
Quantity per pallet: 36 pieces / pallet (subject to the contract)
Single pallet weight: 1215 kg
Loading capacity: (17.5m flatbed truck) 900 pieces / car
① Please refer to Chint component installation manual or contact our company for confirmation; maximum test mechanical load = 1.5 maximum design mechanical load

Electrical performance parameters
STC: light intensity 1000W/m², battery temperature 25°C, air quality=1.5

Rated peak power (Pmpp /Wp) 540 545 550 555
Rated peak voltage (Vmpp /V) 41.93 42.1 42.27 42.44
Rated peak current (lmpp /A) 12.88 12.95 13.01 13.08
Open circuit voltage (Voc/V) 49.9 50.1 50.3 50.5
Short circuit current (lsc /A) 13.66 13.75 13.84 13.89
Module Overall Area Efficiency 20.90% 21.10% 21.30% 21.50%

NMOT: light intensity 800W/m², ambient temperature 20°C, air quality = 15, wind speed 1m/s

Rated peak power (Pmpp /Wp) 403.5 407.3 411 414.8
Rated peak voltage (Vmpp /V) 39.08 39.24 39.39 39.55
Rated peak current (Impp /A) 10.33 10.38 10.43 10.49
Open circuit voltage (Voc/V) 47.16 47.34 47.53 47.72
Short circuit current (lsc /A) 11.08 11.16 11.23 11.3

Different rear power gains (take 550W as an example)

power gain Pmpp /Wp Vmpp / V Impp /A Voc/V ISC /A
5% 578 42.27 13.66 50.3 14.53
10% 605 42.27 14.31 50.3 15.23
15% 633 42.28 14.96 50.31 15.91
20% 660 42.28 15.61 50.31 16.61
25% 688 42.29 16.26 50.32 17.29
