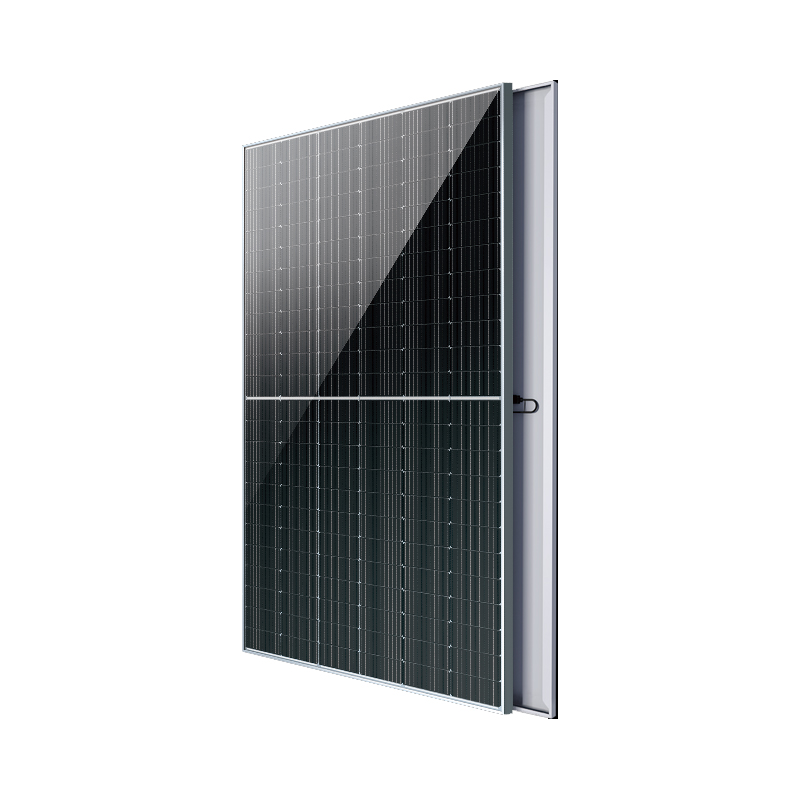

Solar panel ASTRO 5 single-sided 555W series (182), 540W~555W outdoor charging power generation panel, photovoltaic module
Power range: 540~555W
Power tolerance: 0~+5W
Highest module conversion efficiency: 21.5%
Attenuation in the first year: ≤ 2.0%
Attenuation over the years: ≤ 0.55%
● PERC+ / multi-busbar half-cut
● Lossless cutting / PID resistant
● Low BOS and LCOE
$196.00 – $202.00
CompareSolar panel Mechanical parameters

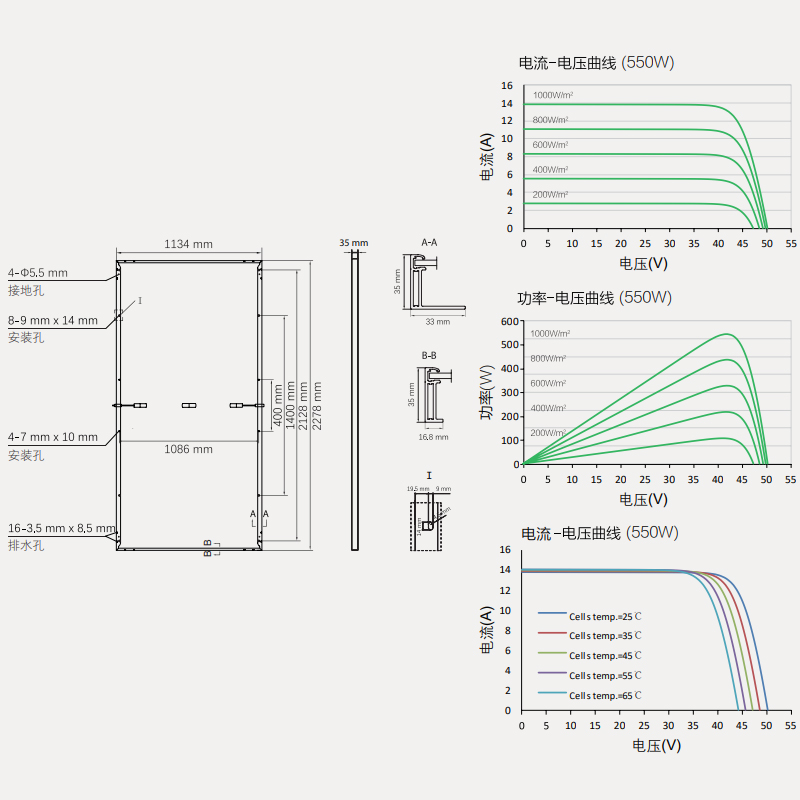

Component Dimensions (L x W x H): 2278 x 1134 x 35 mm
Cell: P-type monocrystalline silicon
Number of cells: 144 (6*24)
Frame type: Silver white anodized aluminum profile
Glass thickness: 3.2mm
Cable length (including connectors): vertical installation: ( + ) 350 mm, ( – ) 250 mm;
or customized;
Cable cross-section (IEC/UL): 4 mm² / 12 AWG
① Maximum test mechanical load: 5400 Pa (front) / 2400 Pa (rear)
Connector Type (IEC/UL): HCB40 (Standard) / MC4-EVO2A (Optional)
Packaging parameters
Component weight: 26.9 kg
Quantity per pallet: 31 pieces / pallet (subject to the contract)
Single pallet weight: 893 kg
Loading capacity: (17.5m flatbed truck) 930 yuan / car
① Please refer to Chint component installation manual or contact our company for confirmation; maximum test mechanical load = 1.5 maximum design mechanical load
Electrical performance parameters
STC: light intensity 1000W/m², battery temperature 25°C, air quality = 1.5
| Rated peak power (Pmpp /Wp) | 540 | 545 | 550 | 555 |
| Rated peak voltage (Vmpp /V) | 41.76 | 41.93 | 42.1 | 42.27 |
| Rated peak current (lmpp /A) | 12.93 | 13 | 13.06 | 13.13 |
| Open circuit voltage (Voc/V) | 49.7 | 49.9 | 50.1 | 50.3 |
| Short circuit current (Isc /A) | 13.72 | 13.81 | 13.9 | 13.98 |
| Module Overall Area Efficiency | 20.90% | 21.10% | 21.30% | 21.50% |
NMOT: Light intensity 800W/m, ambient temperature 20°C, air quality=1.5, wind speed 1m/s
| Rated peak power (Pmpp /Wp) | 403.5 | 407.3 | 411 | 414.8 |
| Rated peak voltage (Vmpp /V) | 38.92 | 39.08 | 39.24 | 39.39 |
| Rated peak current (lmpp /A) | 10.37 | 10.42 | 10.48 | 10.53 |
| Open circuit voltage (Voc/V) | 46.97 | 47.16 | 47.34 | 47.53 |
| Short circuit current (lsc/A) | 11.13 | 11.2 | 11.27 | 11.35 |
| Specification | 540w, 550w, 555w |
|---|
Based on 0 reviews
Be the first to review “Solar panel ASTRO 5 single-sided 555W series (182), 540W~555W outdoor charging power generation panel, photovoltaic module”
Related products
-
ASTRONERGY Solar Panel

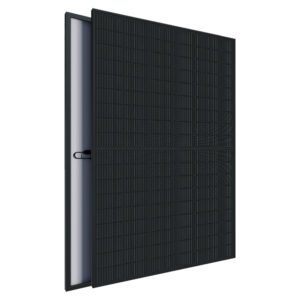

Solar panel ASTRO N5 single-sided 585W series (182) solar photovoltaic modules, outdoor solar panels
ASTRONERGY Solar PanelSolar panel ASTRO N5 single-sided 585W series (182) solar photovoltaic modules, outdoor solar panels
Power range: 565~585W
Power tolerance: 0~+5W
Highest module conversion efficiency: 22.6%
First year attenuation: ≤ 1.0%
Attenuation over the years: ≤ 0.4%
● TOPCon / low temperature coefficient
● Lossless cutting / PID resistant
● Low BOS and LCOESKU: n/a -

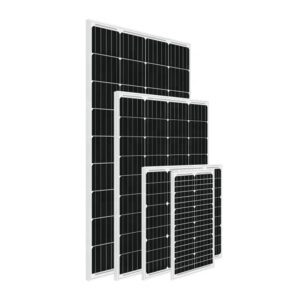

JinKo Solar Panel
